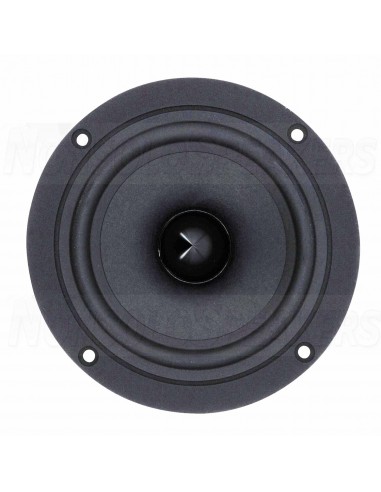

10 cm (4") high-end full-range loudspeaker with excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis.

SHIPMENT IN 5-7 WORKING DAYS
€96.45
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton B 100 4" High-End Full-Range Loudspeaker 6 Ohm

10 cm (4") high-end full-range loudspeaker with excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis.

.

Highlights

  • Lightweight paper membrane
  • Impedance control ring
  • Aluminum die cast basket

.

Product Details

Visaton B 100 4" High-End Full-Range Loudspeaker 6 Ohm

This woofer has excellent balanced response characteristics and slightly increasing high-range for a pleasant sound even outside of 0-axis.

High efficiency with low distortion are just some of the qualities of this speaker.

.

Technical specifications

  • Article number B 100
  • Woofer Series High-End
  • Woofer Type Full-Range
  • Nominal Diameter 4"
  • Power Handling (RMS) 30 Watts
  • Power Handling (max) 60 Watts
  • Impedance (Z) 6 ohms
  • Sensitivity (SPL at 1m / 2.83V) 89.5 dB
  • Frequency Response 75 - 20,000 Hz
  • Voice Coil Diameter 26 mm
  • DC Resistance (Re) 5.8 ohms
  • Voice Coil Inductance (Le) 0.36 mH
  • Resonant Frequency (Fs) 75 Hz
  • Mechanical Q (Qms) 10.13
  • Electromagnetic Q (Qes) 0.54
  • Total Q (Qts) 0.52
  • Diaphragm Mass Inc. Airload (Mms) 3.2g
  • Surface Area of Cone (Sd) 54.1 cm2
  • BL Product (BL) 4.1 Tm
  • Maximum Linear Excursion (Xmax) 1.6 mm
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Basket / Frame Material Cast Aluminum
  • Overall Outside Diameter 121.5 mm
  • Overall Depth 57 mm
  • Baffle Cutout Diameter 101 mm
  • Bolt Circle Diameter 111 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 4.2 mm
