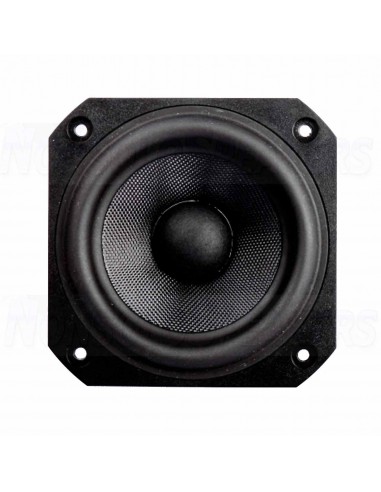

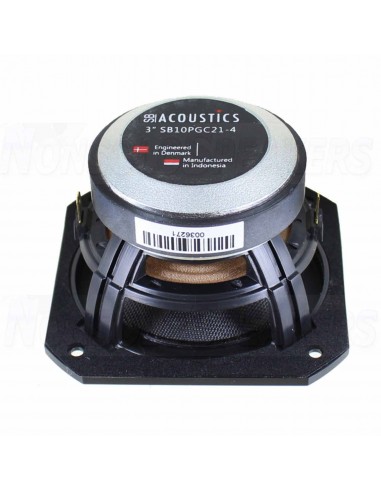

SB ACOUSTICS SB10PGC21-4 Full Range 3 "

SB ACOUSTICS SB10PGC21-4 Full Range 3 "

SHIPMENT IN 7-10 WORKING DAYS
€17.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SB10PGC21-4 Full Range 3 "

The SB Acoustics SB10PGC21-4 is a nice contestant for your next FAST, portable speaker or tiny satellite build. It sports a highly optimized design with a stylish fiber glass cone, vented voice coil and low damping suspension ensuring good dynamics with lots of detail.

.

Highlights

Low damping surround and non-conductive voice coil former to ensure good dynamics and transparent sound character with fine detail.
Vented voice coil for heat exchange and reduced compression.
Light weight CCAW voice coil.
Optimized fiber glass cone for smooth response.
Compact square chassis for versatile integration.

-

Specifications

Article numberSB10PGC21-4
Woofer SeriesWideband Series
Woofer TypeFull-Range
Nominal Diameter3"
Power Handling (RMS)20 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)84 dB

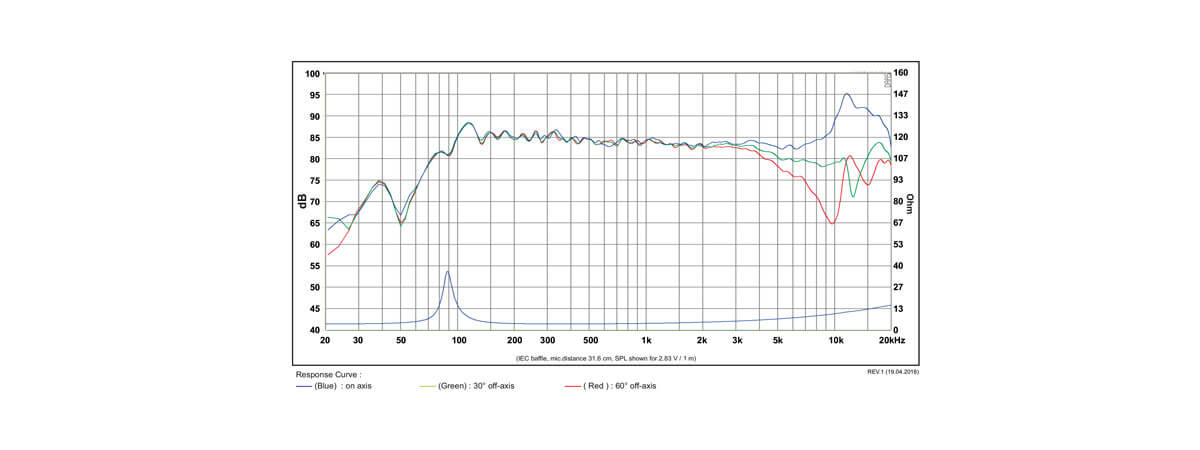

Frequency Response90 - 20,000 Hz
Voice Coil Diameter20.4 mm
Magnet Weight0.09 kg
DC Resistance (Re)3.4 ohms
Voice Coil Inductance (Le)0.15 mH
Resonant Frequency (Fs)89 Hz
Mechanical Q (Qms)11.2
Electromagnetic Q (Qes)1.01
Total Q (Qts)0.92
Diaphragm Mass Inc. Airload (Mms)2.8g
Mechanical Compliance of Suspension (Cms)1.14 mm/N
Surface Area of Cone (Sd)27 cm2
BL Product (BL)2.3 Tm
Compliance Equivalent Volume (Vas)1.2 liters
Maximum Linear Excursion (Xmax)2.25 mm
Driver's Mechanical Losses (Rms)0.14 kg/s
Cone / Diaphragm MaterialFiberglass
Voice Coil Wire MaterialCopper-clad aluminum

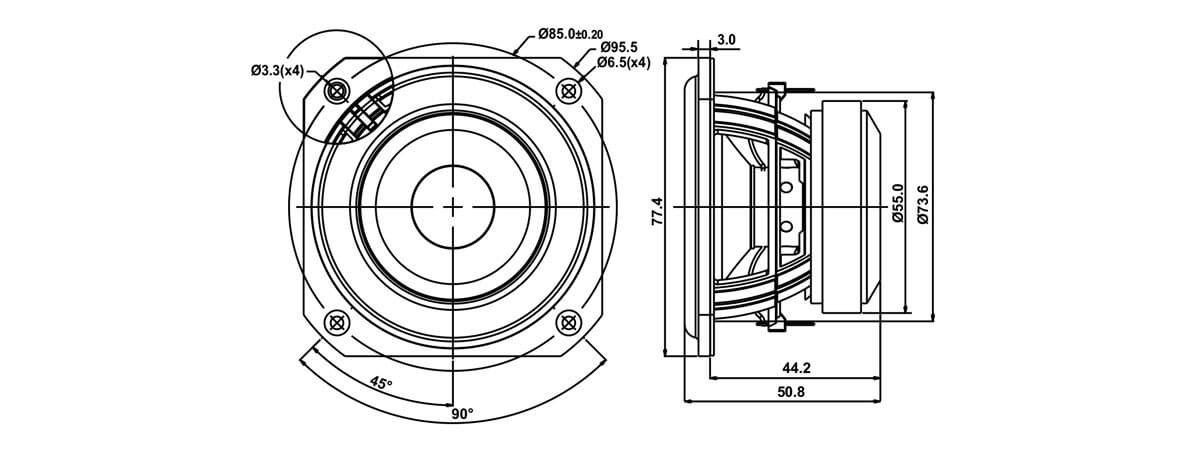

Overall Outside Diameter95.5 mm
Overall Depth50.8 mm
Baffle Cutout Diameter75 mm
Bolt Circle Diameter85 mm
# Mounting Holes4
Mounting Hole Diameter3.3 mm
