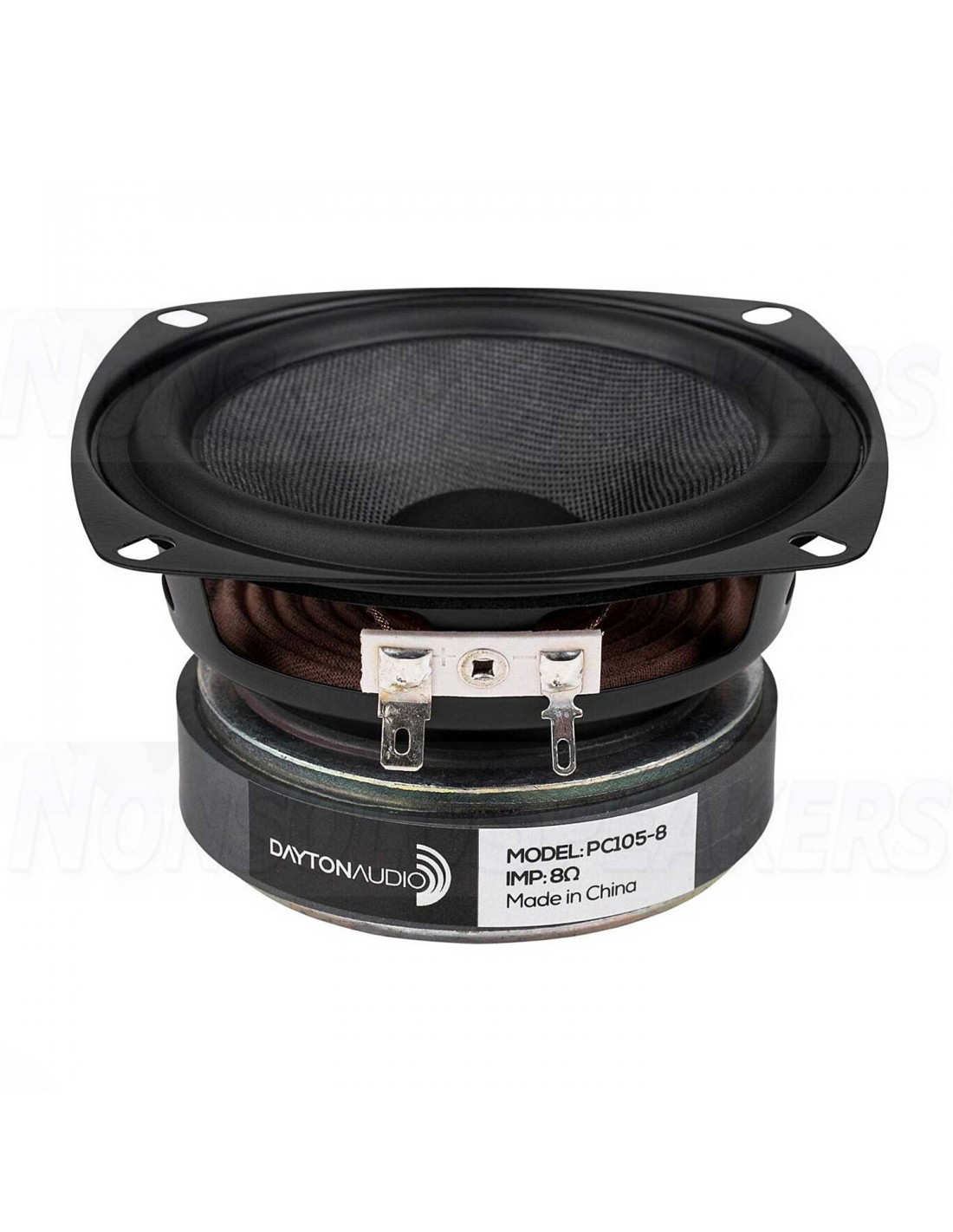

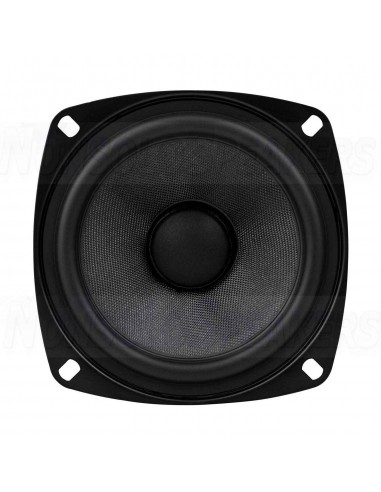

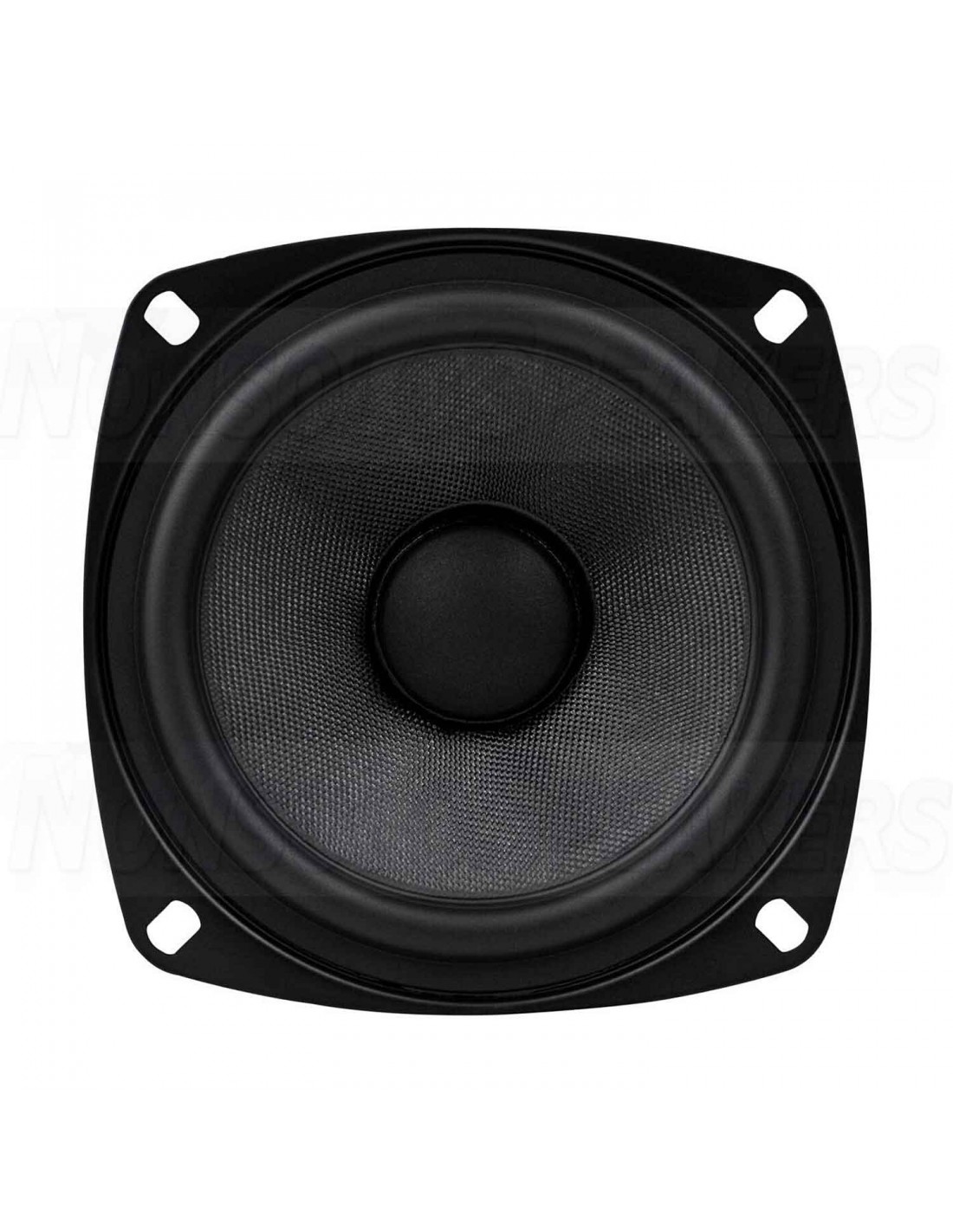

Dayton Audio PC105-8 4" Full-Range Poly Cone Driver

Product description

Dayton Audio's PC105-8 4" full-range driver will deliver smooth and natural response from extremely compact designs. When used in line arrays, portable speakers, sound bars, or as a dedicated midrange in 3-way designs this driver will prove to be an excellent value.

.

Highlights

Poly damped woven glass fiber cone controls cone break-up and provides a smooth roll-off

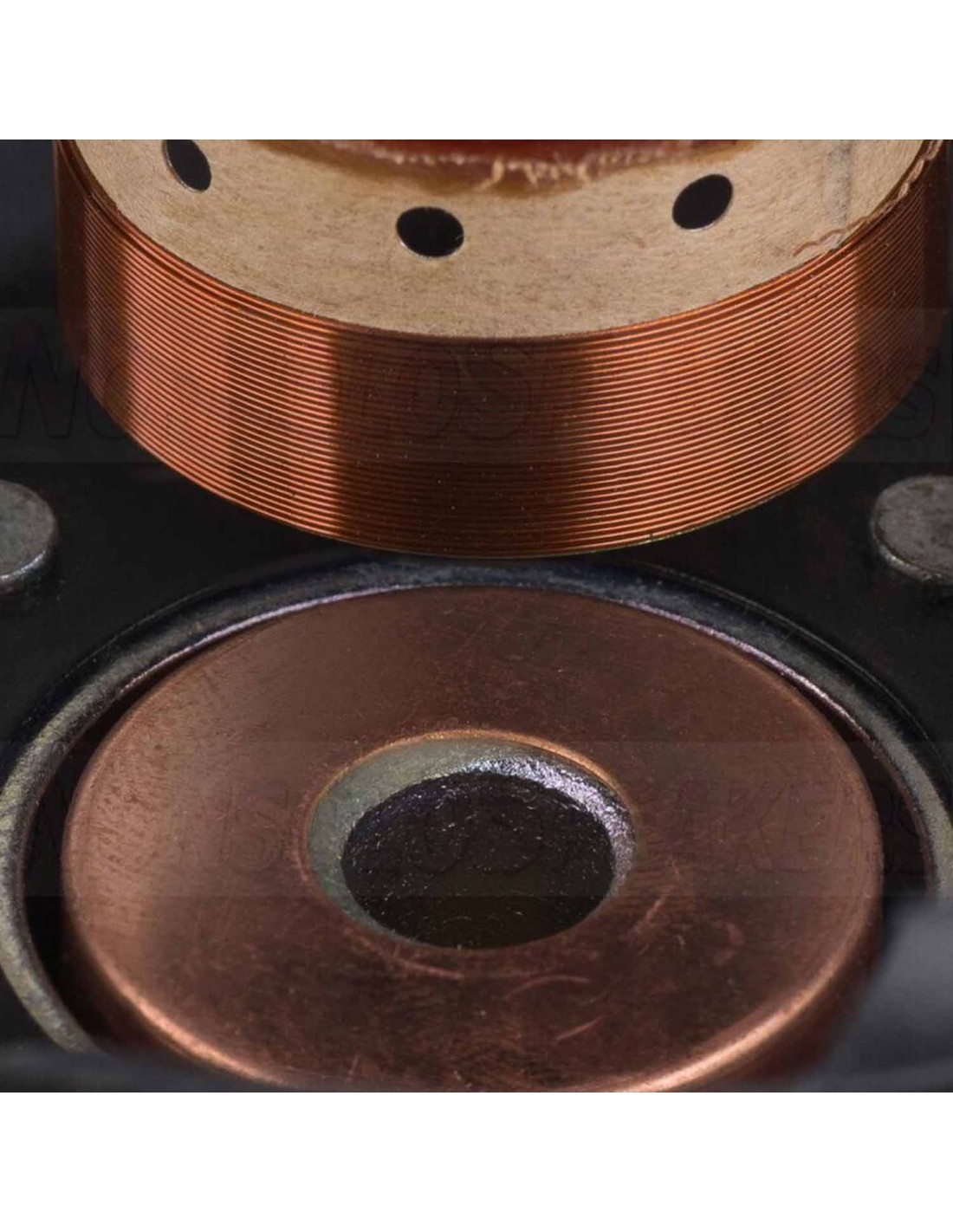

Copper cap keeps inductance under control and extends high frequency response

25,4mm (1'') vented aluminum voice coil former and vented pole piece for high power handling

High energy ferrite magnet increases BL for higher efficiency and more output

Smooth response with true full-range reproduction for simple speaker designs

.

Product details

Dayton Audio PC105-8 4" Full-Range Poly Cone Driver

The Dayton Audio PC105-8 4" full-range driver features a poly damped woven glass fiber cone, damped rubber surround, and high energy motor. Thanks to the vented pole piece and vented aluminum voice coil former the PC105-8 can handle up to 40 watts RMS for surprising output capability with minimal power compression. The addition of a copper cap on the extended pole improves cone control, lowers inductance, and decreases distortion allowing for improved high frequency response. Offering great full-range performance, controlled off-axis response, and high efficiency, this driver will provide impressive output for its size. Perfect for use in line arrays, sound bars, portable speakers, or even car audio systems, the Dayton Audio PC105-8 will deliver high fidelity and low distortion from compact applications.

.

Specifications

Article numberPC105-8
Woofer TypeFull-Range
Nominal Diameter4"
Power Handling (RMS)40 Watts
Power Handling (max)80 Watts
Impedance (Z)8Ω
Sensitivity (SPL at 1m / 2.83V)86.3 dB
Frequency Response80 to 15,000Hz
Voice Coil Diameter1"
DC Resistance (Re)6.7Ω
Voice Coil Inductance (Le)0.54mH
Resonant Frequency (Fs)84.8Hz
Mechanical Q (Qms)2.29
Electromagnetic Q (Qes)0.88
Total Q (Qts)0.64
Diaphragm Mass Inc. Airload (Mms)4.2g
Mechanical Compliance of Suspension (Cms)0.84mm/N
Surface Area of Cone (Sd)52.8cm²
BL Product (BL)4.1T·m
Compliance Equivalent Volume (Vas)0.12ft³
Maximum Linear Excursion (Xmax)2 mm
Cone / Diaphragm MaterialPoly Composite
Surround MaterialRubber
Voice Coil Wire MaterialCCA
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter4.96"
Overall Depth2.36"
Baffle Cutout Diameter4.00"
Bolt Circle Diameter4.45
# Mounting Holes4
Sealed Volume0.15ft³
Sealed F3113Hz
Vented Volume0.4ft³
Vented F356Hz
