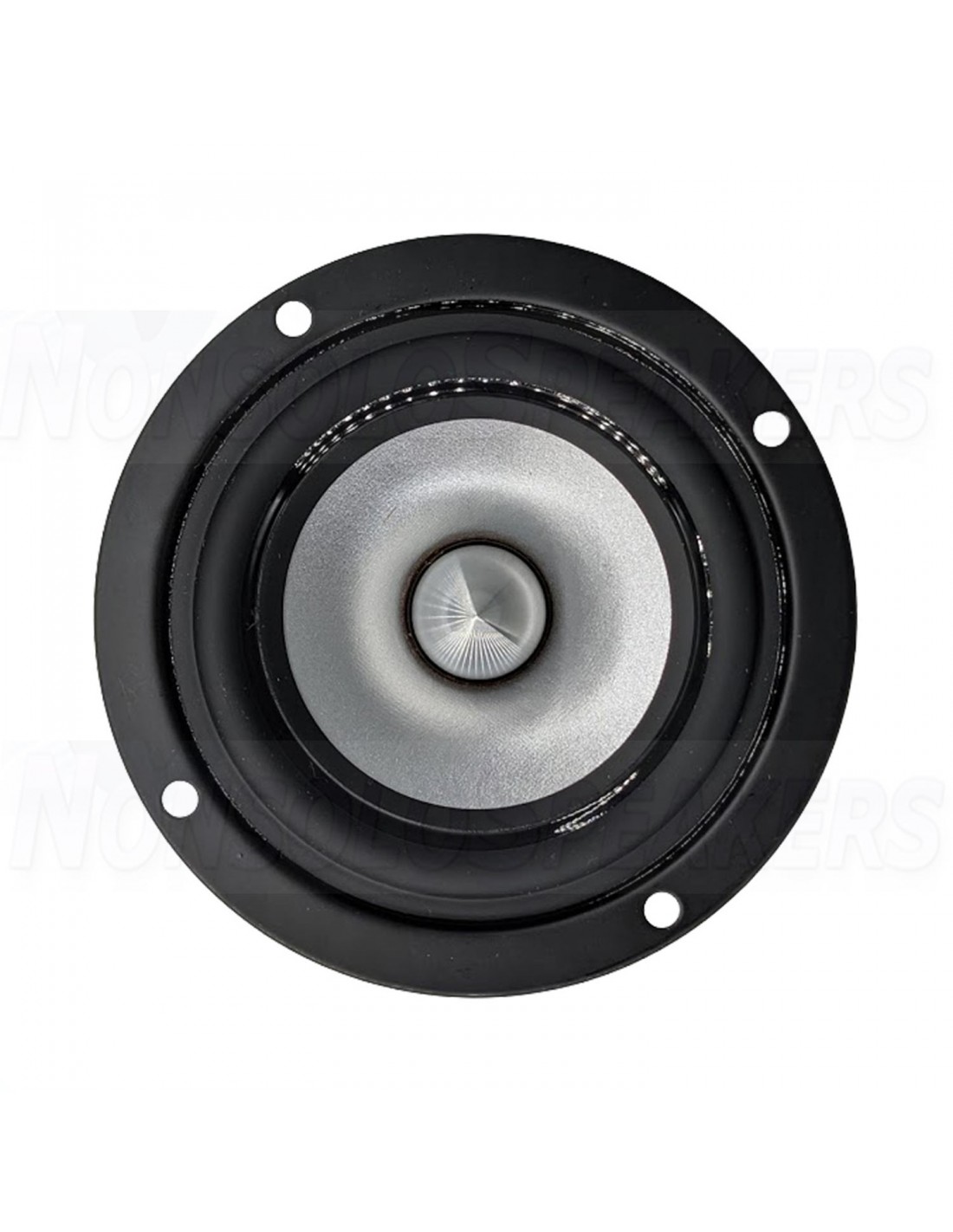

Tang Band W3-871SC 3" Driver
Tang Band W3-871SC 3" Driver
Tang Band W3-871SC 3" Driver
Tang Band W3-871SC 3" Driver

TANG BAND W3-871SC - 3 "Full Range 8 ohm

SHIPMENT IN 5-7 WORKING DAYS
€30.40 €32.00 -5%
Tax included
rating No review at the moment

TANG BAND W3-871SC - 3 "Full Range  8 ohm

This driver features a black cosmetic stamped steel frame, silver coated paper cone, rubber surround, and solid aluminum phase plug. Renowned as one of the smoothest 3" full-range drivers on the market.

The minimum purchase order quantity for the product is 2.

Quantity Unit discount You Save
2 5% €3.20
Estimated Shipping Costs
Shipping Costs
€10.80
Shipping Time
.
Want to check another country or courier?



TANG BAND W3-871SC - 3 "Full Range  8 ohm

.

Tang Band W3-871SC 3" Driver
This driver features a black cosmetic stamped steel frame, silver coated paper cone, rubber surround, and solid aluminum phase plug. Renowned as one of the smoothest 3" full-range drivers on the market.
-
  • Item number:          W3-871SC
  • Woofer series           F Series
  • Woofer type             Full range
  • Nominal diameter     3 "
  • Resilience (QMW)     12 watts
  • Load capacity (max) 25 watts
  • Impedance (Z)         8 ohms
  • sensitivity.               87 dB

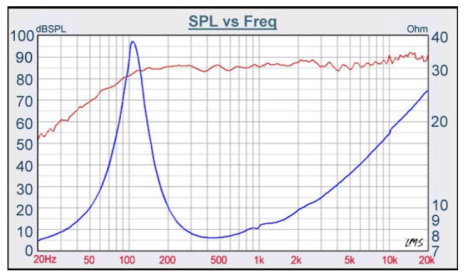

  • Frequency response. 110-20,000 Hz
  • Voice coil diameter.   0.7 "
  • Weight magnet.        117g
  • DC resistance (Re)    6.6 ohms
  • Resonance freq.       (Fs)110 hz
  • Mechanical quality    (Qms)3.40
  • Electrical quality       (Qes)0.71
  • Total Q factor           (Qts)0.59
  • Movable Mass           (Mms)2 g
  • Moving Mass Of Diaphragm       (Mmd)2g
  • Suspension Compliance            (Cms)1133 uMN-1
  • Membrane area                       (Sd)32 cm2
  • Force factor                             (BL)3.51 TM
  • Equivalent volume                   (Vas)1.65 liters
  • Maximum deflection                 (Xmax)0.5 mm
  • Cone / diaphragm material       Silver paper
  • Bead material                          Santoprene
  • Basket / frame material           Stamped steel
  • Magnetic material                    Ferrites
  • Magnetically shielded               Yes

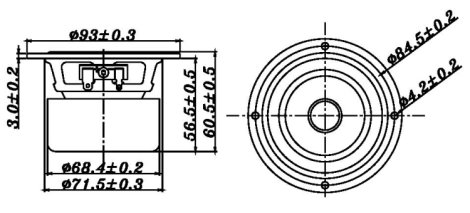

  • outer diameter                        93 mm
  • Total depth                             60 mm
  • Cutout diameter                      71.5 mm
.

.

.

W3-871SC
