Highly linear response. Useful high efficiency output at 92dB sensitivity.

SHIPMENT IN 7-10 WORKING DAYS
€34.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SB26STCN-C000-4 - Tweeter 26mm

-

Product description

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency

Copper cap on pole piece for reduced voice coil inductance and minimum phase shift

Fine weave soft fabric dome for smooth frequency response

Inherently shielded neodymium motor system

Internal pressure equalization and flow resistor for non-resonant coupling of cavities

Compact design

.

Product details

SB Acoustics SB26STCN-C000-4 1'' Tweeter

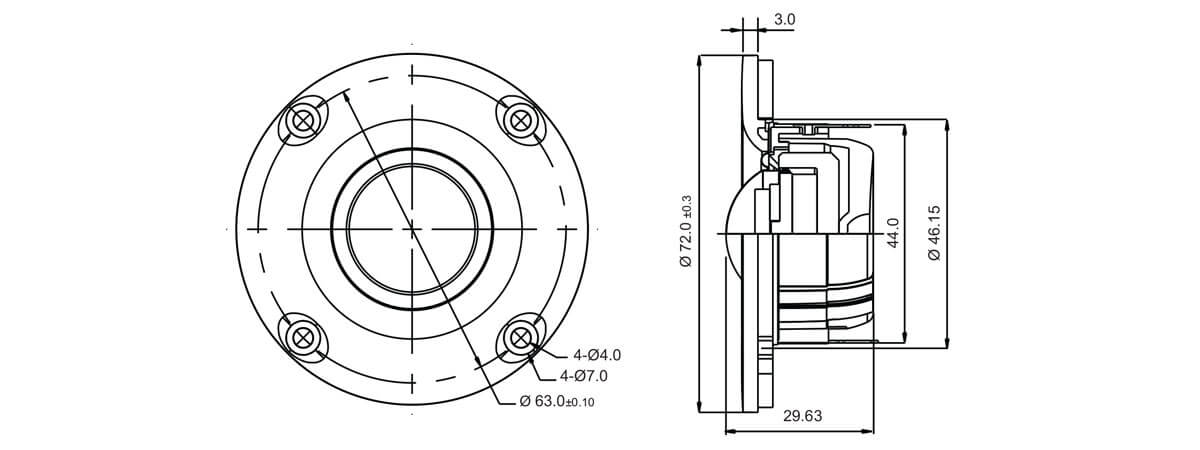

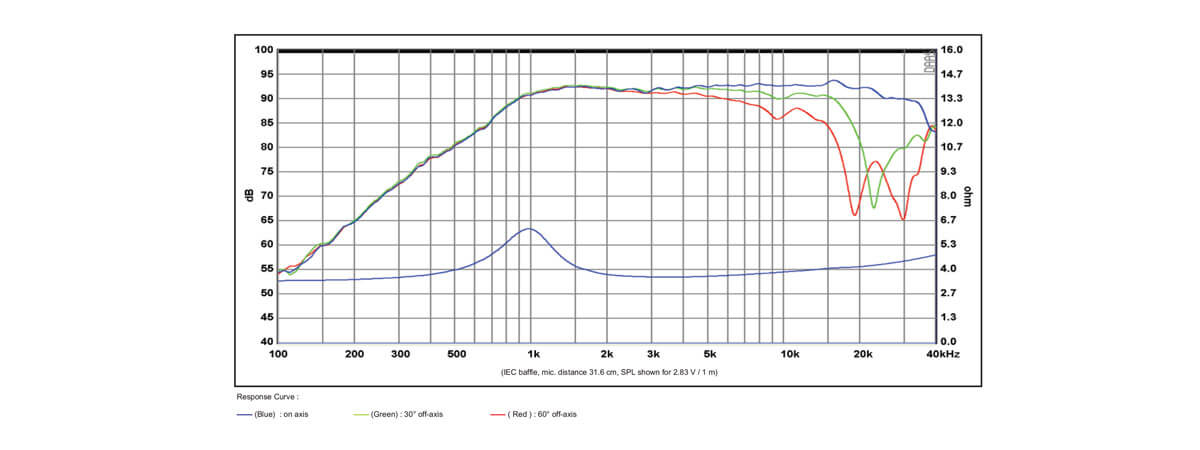

SB Acoustics SB26STCN-C000-4 Tweeter has a Neodymium magnet (unusual in this price range). Its copper cap pole piece, coated textile dome, 1” voice coil and the small 72mm OD proprietary face plate give it a partially loaded horn profile. Highly linear response. Useful high efficiency output at 92dB sensitivity.

Complete with a rear chamber reducing both Fs (950Hz) and back wave reflections from the dome.

Specifications: BL Product (BL): 1.7 Tm N • Diaphragm Mass Inc. Airload (Mms): 0.3 g • Maximum Linear Excursion (Xmax): 0.6 mm • Surface Area of Cone (Sd): 6.2 cm2

.

Specifications

Article numberSB26STCN-C000-4
Tweeter TypeDome
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)120 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)92 dB
Resonant Frequency (Fs)950 Hz
DC Resistance (Re)3.2 ohms
Voice Coil Inductance (Le)0.04 mH
Mechanical Q (Qms)1.8
Electromagnetic Q (Qes)2
Total Q (Qts)0.90

SB26STCN-C000-4
