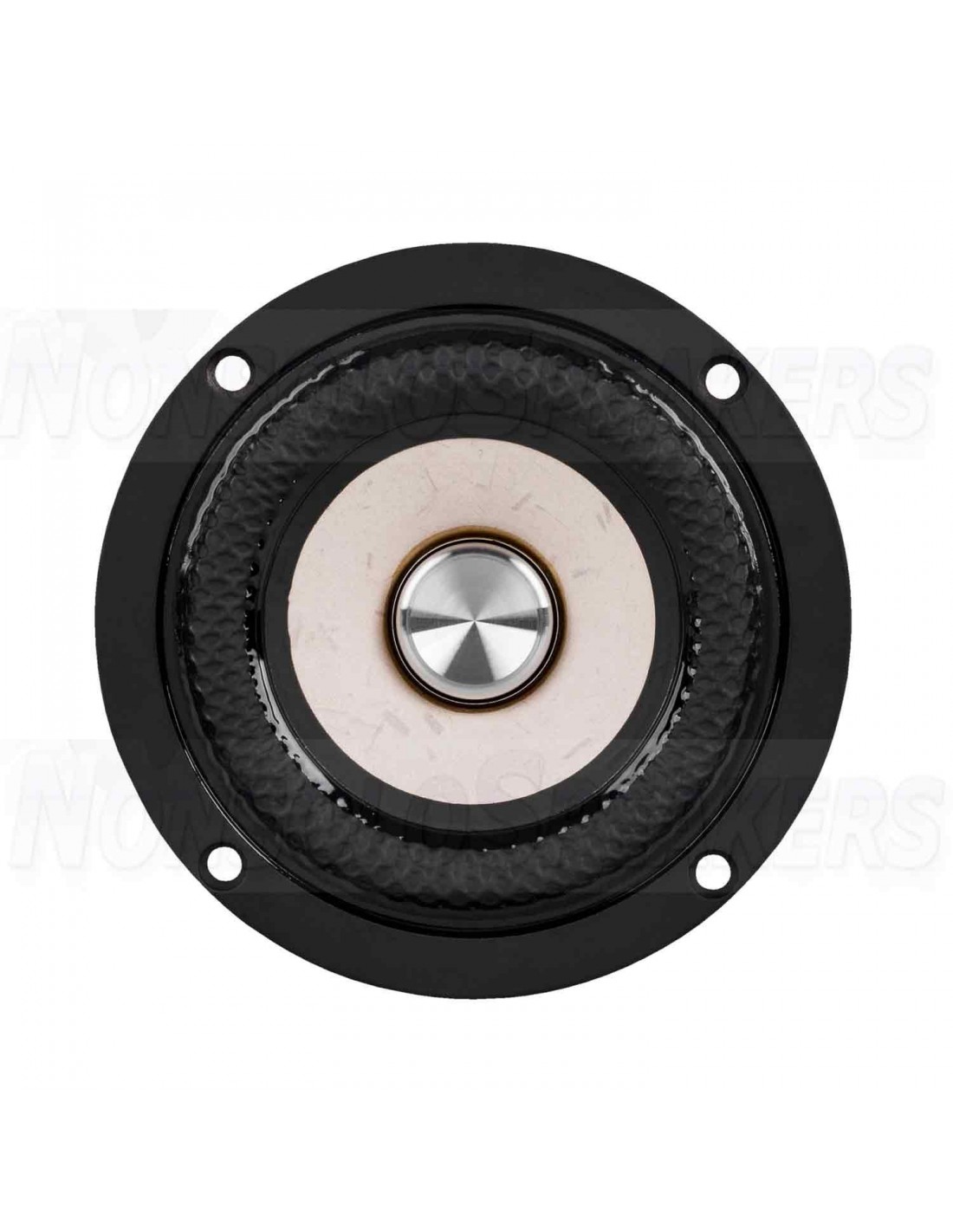

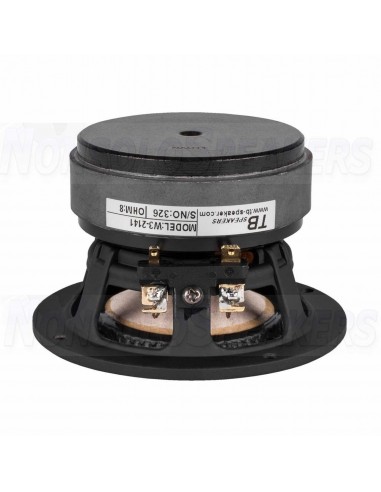

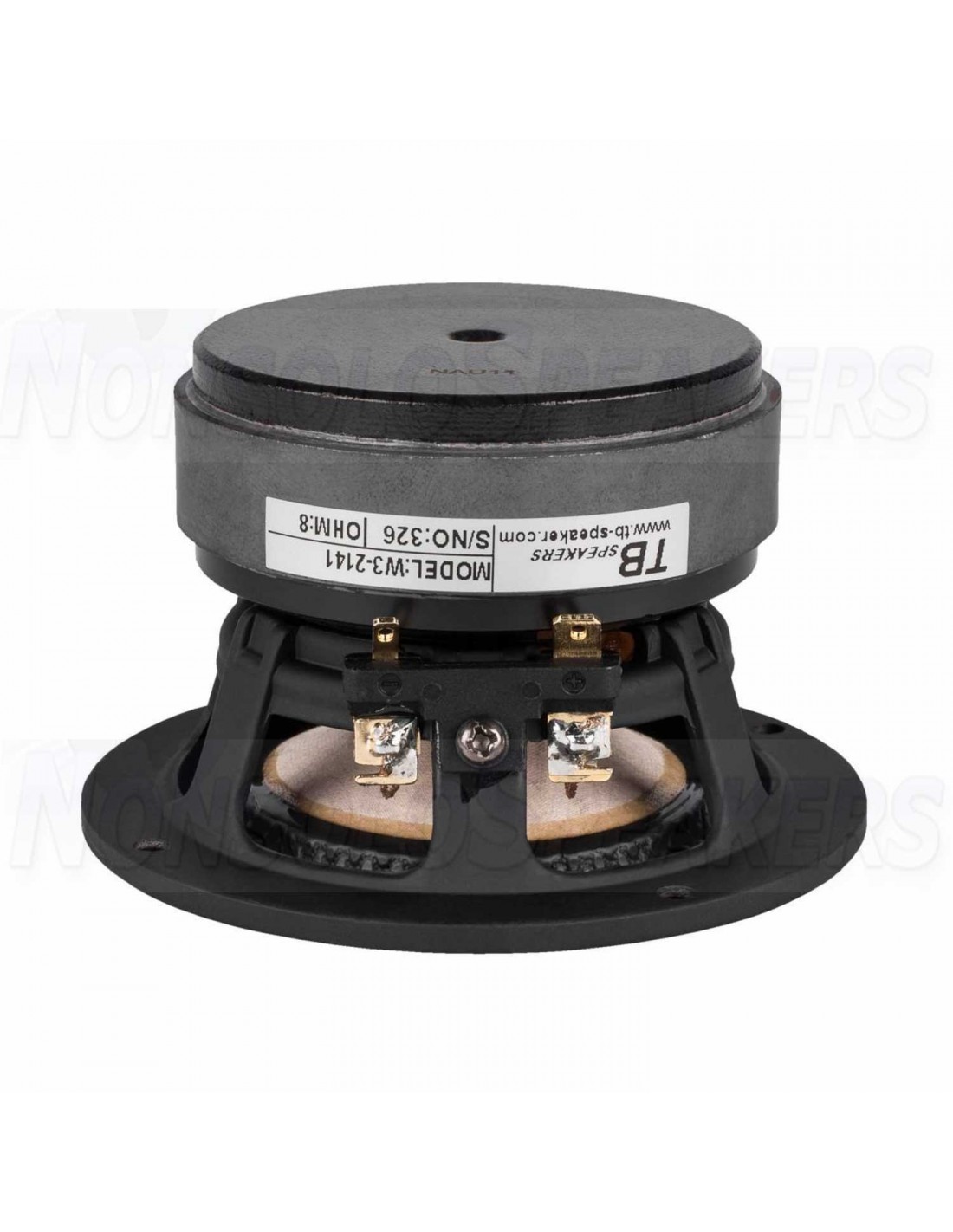

TANG BAND W3-2141 3" Paper Cone Full Range Driver 8 Ohm

Name: TANG BAND W3-2141 3" Paper Cone Full Range Driver 8 Ohm
Brand: Tang Band
SKU: W3-2141
Price: 43.7 EUR
Availability: InStock

TANG BAND W3-2141 3" Paper Cone Full Range Driver 8 Ohm

With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W3-2141 3" full range from Tang Band has impressive response from 75 to 20,000 with very low distortion.

SHIPMENT IN 7/10 WORKING DAYS

€43.70 €46.00 -5%

Tax included

Read the review

Average rating: 10/10 Number of reviews: 1

Quantity	Unit discount	You Save
2	7%	€6.44
4	10%	€18.40

Estimated Shipping Costs

Shipping Costs

€12.60

Shipping Time

Want to check another country or courier?

TANG BAND W3-2141 3" Paper Cone Full Range Driver 8 Ohm

Tang Band's versatile W3-2141 full range driver uses an underhung voice coil, which places the entire coil inside the magnetic gap, for the utmost in control and accuracy. Designed for minimum distortion and resonance, the bamboo fiber paper cone and structured surround produces smooth response without harsh peaks or dips. The aluminum phase plug improves off axis response while also acting as a shorting ring providing greater control of the voice coil resulting in lower distortion.

Product Details

Brand Tang Band
Model W3-2141
Part Number 264-956
UPC 848864023762
Unit of Measure Each
Weight 1.6

Product Specifications

Nominal Diameter 3-1/2"
Bolt Circle Diameter 3.375
Moving Mass Of Diaphragm (Mmd) 1.996
Power Handling (RMS) 12 Watts
Power Handling (MAX) 25 Watts
Impedance 8Ω

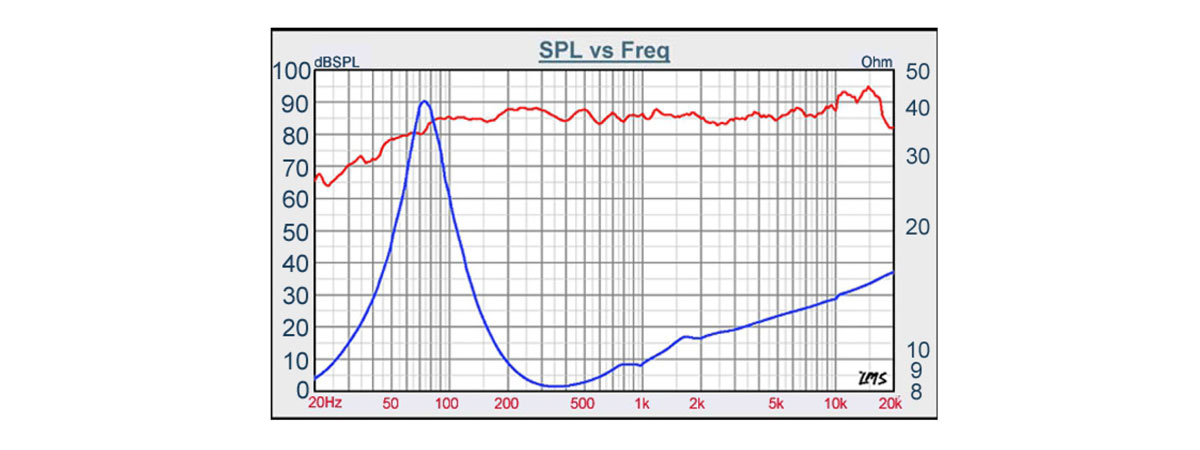

Frequency Response 75 to 20,000Hz
Sensitivity 87dB 2.83V/1m
Voice Coil Diameter 0.8"

Thiele-Small Parameters

Resonant Frequency (Fs) 75Hz
DC Resistance (Re) 6.5Ω
Voice Coil Inductance (Le) 0.02mH
Mechanical Q (Qms) 2.51
Electromagnetic Q (Qes) 0.46
Total Q (Qts) 0.39
Compliance Equivalent Volume (Vas) 0.116ft³
Mechanical Compliance of Suspension (Cms) 2.25mm/N
BL Product (BL) 3.64T·m
Maximum Linear Excursion (Xmax) 1.6mm
Surface Area of Cone (Sd) 32.09cm²

Materials of Construction

Cone Material Bamboo Fiber / Paper
Surround Material Santoprene®
Voice Coil Wire Material Copper
Voice Coil Former Kapton® / Polyimide
Basket / Frame Material Cast Aluminum
Magnet Material Ferrite

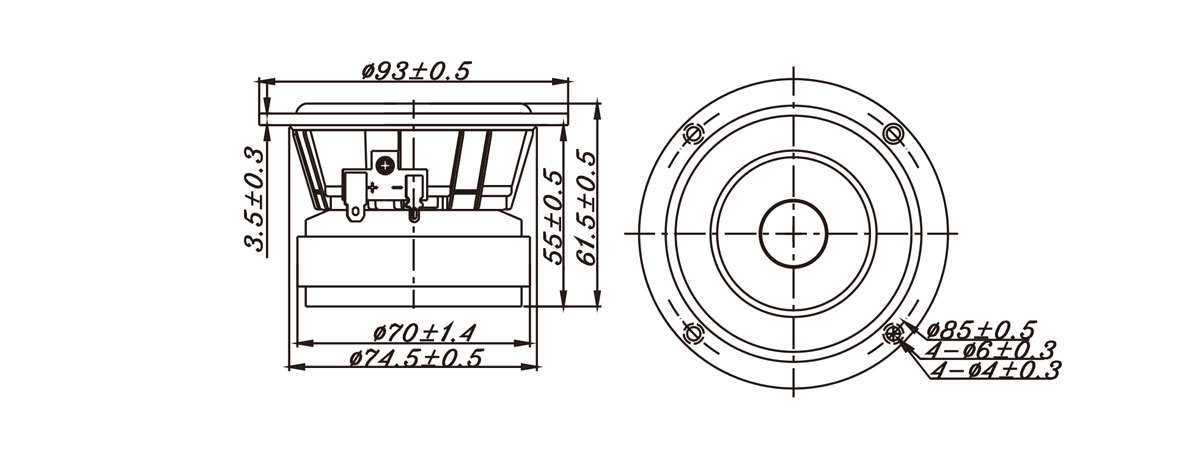

Mounting Information

Overall Outside Diameter 3.625"
Baffle Cutout Diameter 2.92"
Depth 2.25"
# Mounting Holes 4

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

Sealed Volume 0.035ft³
Sealed F3 150Hz
Vented Volume 0.087ft³
Vented F3 84Hz

Reference W3-2141

In stock 84 Items

Tang Band Full Range as Mid Range Speakers

06/17/2024

Thomas

I used this to upgrade a vintage pair of Kenwood LS-407B Speakers. They fit the Mid-range hole without any modification. The isolation cup and to be changed as this speaker fill the cup entirely leaving no room to breathe. So, I created a larger isolation cup. As for sound, wow, clear crisp vocals. Zero distortion. Nonsolo was great to work with. I was so excited I ordered the wrong size. I did not notice till the next AM, so I contacted them through the web chat built into their site. They were very understanding and allowed the change without have to cancel and reorder. Thet simply charged the difference. How cool is that!!I would/will order from them again on my next driver purchase. The ONLY downside is their location from the US as it took a while for the shipment to reach me. But that is my own impatience as I was very excited to get them.
