The Tang Band W4-1879 full-range driver features an underhung neodymium motor design that provides extended, linear response while reducing 2nd and 3rd harmonic distortion.

Out-of-Stock
€176.00
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W4-1879 - 4" Full Range TB-Speakers

The Tang Band W4-1879 full-range driver features an underhung neodymium motor design that provides extended, linear response while reducing 2nd and 3rd harmonic distortion. The bamboo/paper cone is lightweight yet appropriately rigid and is terminated with a durable foam rubber half roll surround. A unique aluminum phase plug improves dispersion at the speaker's higher frequencies.

-

Product Details

  • Brand Tang Band
  • Model W4-1879
  • Part Number 264-903
  • UPC 844632088391
  • Unit of Measure Each
  • Weight 3.65

.

Product Specifications

  • Nominal Diameter 4"
  • Bolt Circle Diameter 4.53
  • Moving Mass Of Diaphragm (Mmd) 4.0
  • Power Handling (RMS) 25 Watts
  • Power Handling (MAX) 50 Watts
  • Impedance 8Ω

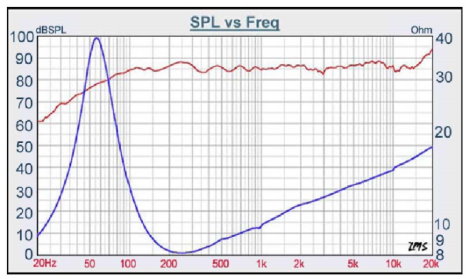

  • Frequency Response 55 to 20,000Hz
  • Sensitivity 87dB 2.83V/1m
  • Voice Coil Diameter 1"

Thiele-Small Parameters

  • Resonant Frequency (Fs) 55Hz
  • DC Resistance (Re) 6.3Ω
  • Voice Coil Inductance (Le) 0.025mH
  • Mechanical Q (Qms) 2.68
  • Electromagnetic Q (Qes) 0.51
  • Total Q (Qts) 0.43
  • Compliance Equivalent Volume (Vas) 0.32ft³
  • BL Product (BL) 4.19T·m
  • Maximum Linear Excursion (Xmax) 5mm
  • Surface Area of Cone (Sd) 57cm²

.

Materials of Construction

  • Cone Material Wood Fiber
  • Surround Material Rubber
  • Basket / Frame Material Cast Aluminum
  • Magnet Material Neodymium

.

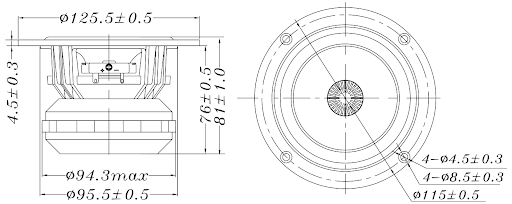

Mounting Information

  • Overall Outside Diameter 4.94"
  • Baffle Cutout Diameter 3.76"
  • Depth 3.18"
  • # Mounting Holes 4

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

  • Sealed Volume 0.13ft³
  • Sealed F3 101Hz
  • Vented Volume 0.34ft³
  • Vented F3 52Hz

.

.

.

.

W4-1879
