W3-1878 - 3" Full Range TB-Speakers - Magnete in Neodimio - Cono in bamboo e carta - 8 ohm
W3-1878 - 3" Full Range TB-Speakers TANG BAND
W3-1878 - 3" Full Range TB-Speakers TANG BAND
W3-1878 - 3" Full Range TB-Speakers - Magnete in Neodimio - Cono in bamboo e carta - 8 ohm
W3-1878 - 3" Full Range TB-Speakers TANG BAND
W3-1878 - 3" Full Range TB-Speakers TANG BAND

TANG BAND W3-1878 - 3" Full Range TB-Speakers

TANG BAND W3-1878 - 3" Full Range TB-Speakers

The Tang Band W3-1878 full-range driver features an underhung neodymium motor design that provides extended, linear response while reducing 2nd and 3rd harmonic distortion.

Out-of-Stock
€142.50 €150.00 -5%
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W3-1878 - 3" Full Range TB-Speakers

.

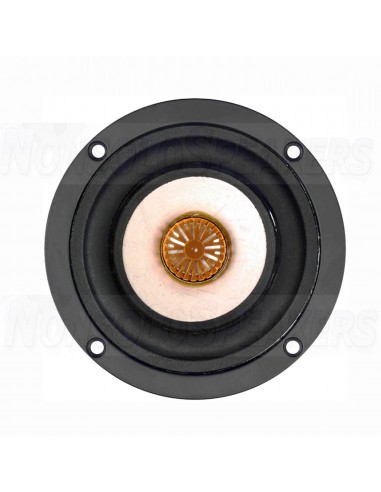

The Tang Band W3-1878 full-range driver features an underhung neodymium motor design that provides extended, linear response while reducing 2nd and 3rd harmonic distortion. The bamboo/paper cone is lightweight yet appropriately rigid and is terminated with a durable foam rubber half roll surround. A unique aluminum phase plug improves dispersion at the speaker's higher frequencies.

-

Product Details

  • Brand Tang Band
  • Model W3-1878
  • Part Number 264-902
  • UPC 844632088384
  • Unit of Measure Each
  • Weight 1.8

.

Product Specifications

  • Nominal Diameter 3"
  • Moving Mass Of Diaphragm (Mmd) 2
  • Power Handling (RMS) 12 Watts
  • Power Handling (MAX) 25 Watts
  • Impedance 8Ω

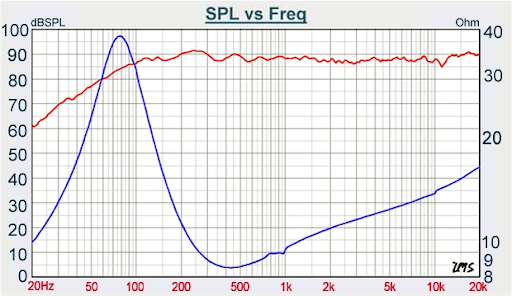

  • Frequency Response 75 to 20,000Hz
  • Sensitivity 88dB 2.83V/1m
  • Voice Coil Diameter 0.8"

.

Thiele-Small Parameters

  • Resonant Frequency (Fs) 75Hz
  • DC Resistance (Re) 6.5Ω
  • Voice Coil Inductance (Le) 0.02mH
  • Mechanical Q (Qms) 1.67
  • Electromagnetic Q (Qes) 0.34
  • Total Q (Qts) 0.28
  • Compliance Equivalent Volume (Vas) 0.11ft³
  • Mechanical Compliance of Suspension (Cms) 2.12mm/N
  • BL Product (BL) 4.3T·m
  • Maximum Linear Excursion (Xmax) 4.2mm
  • Surface Area of Cone (Sd) 32cm²

.

Materials of Construction

  • Cone Material Bamboo Fiber / Paper
  • Surround Material Rubber
  • Magnet Material Neodymium

.

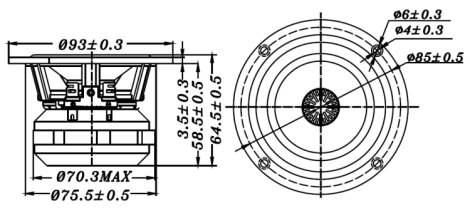

Mounting Information

  • Overall Outside Diameter 3.66"
  • Baffle Cutout Diameter 2.97"
  • Depth 2.54"
  • # Mounting Holes 4

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

  • Sealed Volume 0.02ft³
  • Sealed F3 212Hz
  • Vented Volume 0.03ft³
  • Vented F3 135Hz

.

.



W3-1878
