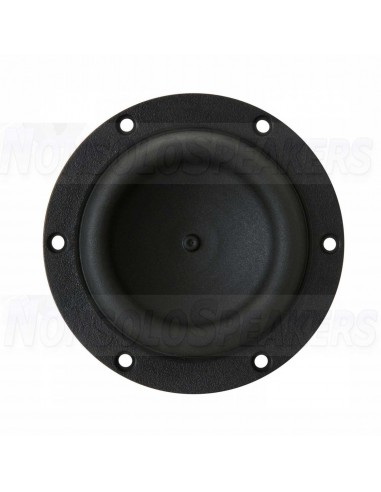

TANG BAND W3-1876S - 3" Subwoofer TB Speaker

TANG BAND W3-1876S - 3" Subwoofer TB Speaker

A true long throw subwoofer, the diminutive Tang Band W3-1876S 3" driver provides a solid bass kick to the smallest possible speaker systems.

Out-of-Stock
€53.20 €56.00 -5%
Tax included
rating Read the review
Average rating: 10/10 Number of reviews: 1

Quantity Unit discount You Save
2 7% €7.84
4 10% €22.40

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W3-1876S - 3" Subwoofer TB Speaker

.

A true long throw subwoofer, the diminutive Tang Band W3-1876S 3" driver provides a solid bass kick to the smallest possible speaker systems.

The Tang Band W3-1876S 3" subwoofer driver offers huge 5 mm Xmax capability and great sound quality in a tiny chassis. A compact yet powerful neodymium magnet system drives the 20 mm voice coil and patented injected polypropylene cone with Santoprene surround to impressively high bass output. The W3-1876S is suited for use in micro-sized home theater and multimedia audio systems.

-

Product Details

  • Brand Tang Band
  • Model W3-1876S
  • Part Number 264-909
  • UPC 844632092756
  • Unit of Measure Each
  • Weight 0.55

.

Product Specifications

  • Nominal Diameter 3"
  • Moving Mass Of Diaphragm (Mmd) 9.98
  • Power Handling (RMS) 15 Watts
  • Power Handling (MAX) 30 Watts
  • Impedance 4Ω

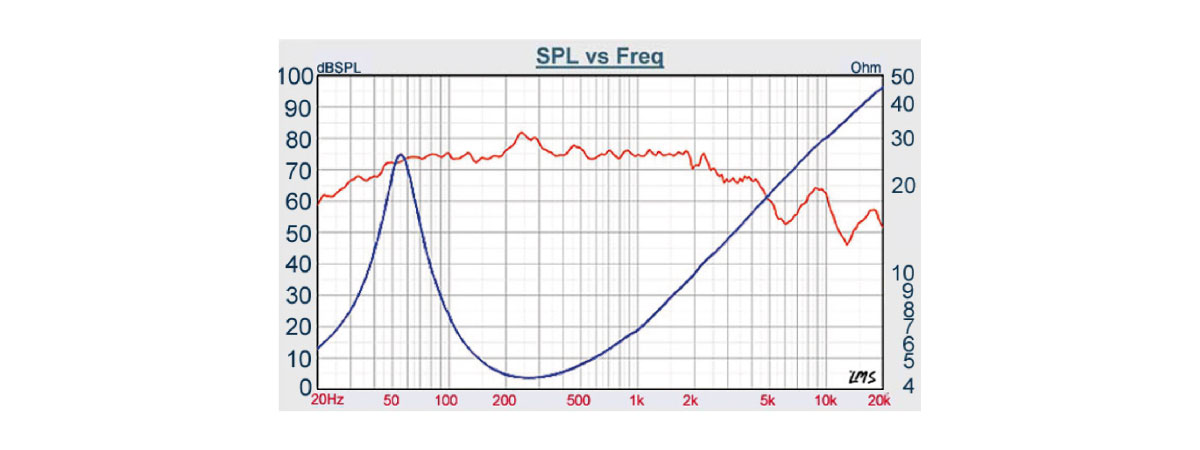

  • Frequency Response 55 to 2,000Hz
  • Sensitivity 76dB 2.83V/1m
  • Voice Coil Diameter 0.8"

.

Thiele-Small Parameters

  • Resonant Frequency (Fs) 55Hz
  • DC Resistance (Re) 3.6Ω
  • Voice Coil Inductance (Le) 0.19mH
  • Mechanical Q (Qms) 3.17
  • Electromagnetic Q (Qes) 0.5
  • Total Q (Qts) 0.43
  • Compliance Equivalent Volume (Vas) 0.03ft³
  • Mechanical Compliance of Suspension (Cms) 0.74mm/N
  • BL Product (BL) 5.28T·m
  • Maximum Linear Excursion (Xmax) 5mm
  • Surface Area of Cone (Sd) 27cm²

.

Materials of Construction

  • Cone Material Poly
  • Surround Material Santoprene®
  • Magnet Material Neodymium

.

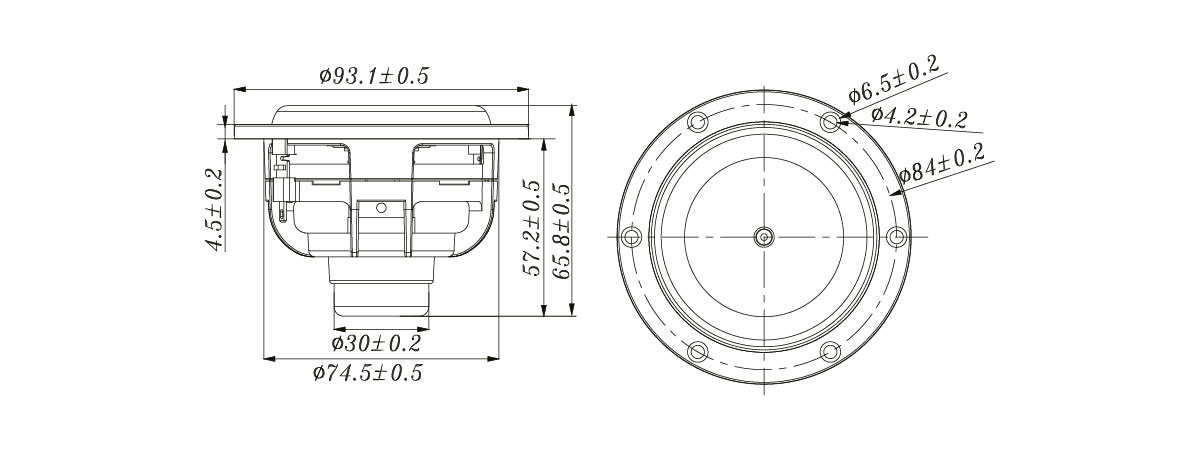

Mounting Information

  • Overall Outside Diameter 3.67"
  • Baffle Cutout Diameter 2.93"
  • Depth 2.59"
  • # Mounting Holes 6

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

  • Sealed Volume 0.01ft³
  • Sealed F3 101Hz
  • Vented Volume 0.03ft³
  • Vented F3 52Hz

W3-1876S
I'm blown by this little woofer speaker
rating
10/11/2023
Sergey
I have dual of these per speaker and the bass is astonishingly nice. I can see why it is har to get these nowadays.
