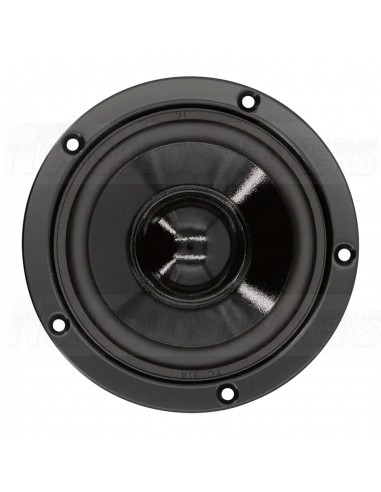

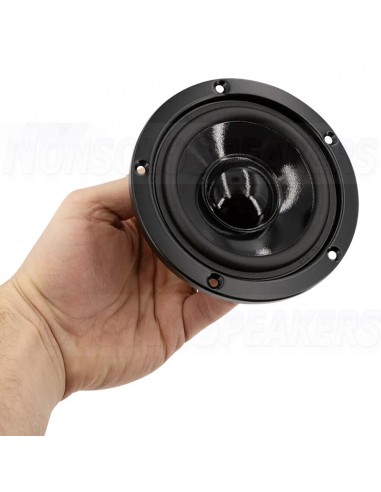

Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm
Visaton W 100 S - 8 4" Woofer 8 Ohm

Visaton W 100 S - 8 4" Woofer 8 Ohm

Visaton W 100 S - 8 4" Woofer 8 Ohm

The W 100 S 8-ohm 4" woofer from Visaton with a coated paper cone and durable rubber surround delivers amazing bass and midrange performance not normally found in drivers at its price point.

SHIPMENT IN 5-7 WORKING DAYS
€35.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton W 100 S - 8 4" Woofer 8 Ohm

The W 100 S 8-ohm 4" woofer from Visaton with a coated paper cone and durable rubber surround delivers amazing bass and midrange performance not normally found in drivers at its price point.

.

Highlights

  • Relatively flat frequency response from 100 to 5,000 Hz
  • Able to play below 60 Hz in a proper vented cabinet
  • Great power handling and decent Xmax

.

Product Details

Visaton W 100 S 4" woofer 8 Ohm
Visaton's W 100 S 4" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W 100 S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 5,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers.
Note: For best bass performance, install the W130S into one of the following cabinets:
• A 3.96 liters sealed cabinet (F3 is 100 Hz with a Qtc of 0.7).
• A 5 liters cabinet tuned to 70 Hz with a 31.75 mm diameter port that is 6 cm long.
• A 10 liters cabinet tuned to 56 Hz with a 31.75 mm diameter port that is 5.8 cm long.

.

Technical Specifications

  • Article number W 100 S - 8
  • Woofer Series HiFi Series
  • Woofer Type Bass-mid woofer
  • Nominal Diameter 4"
  • Power Handling (RMS) 30 Watts
  • Power Handling (max) 50 Watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 86 dB
  • Frequency Response 63 - 15,000 Hz
  • Voice Coil Diameter 20 mm
  • DC Resistance (Re) 6.7 ohms
  • Voice Coil Inductance (Le) 0.5 mH
  • Resonant Frequency (Fs) 63 Hz
  • Mechanical Q (Qms) 2.74
  • Electromagnetic Q (Qes) 0.67
  • Total Q (Qts) 0.54
  • Compliance Equivalent Volume (Vas) 5.38 liters
  • Maximum Linear Excursion (Xmax) 2 mm
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Overall Outside Diameter 122 mm
  • Overall Depth 54 mm
  • Baffle Cutout Diameter 94 mm
  • Bolt Circle Diameter 111 mm
  • # Mounting Holes 5
  • Mounting Hole Diameter 3.7 mm
  • Sealed Volume 4.30 liters
  • Sealed F3 93 Hz
  • Vented Volume 9.91 liters Vented F3 45 Hz

Visaton W 100 S - 8
