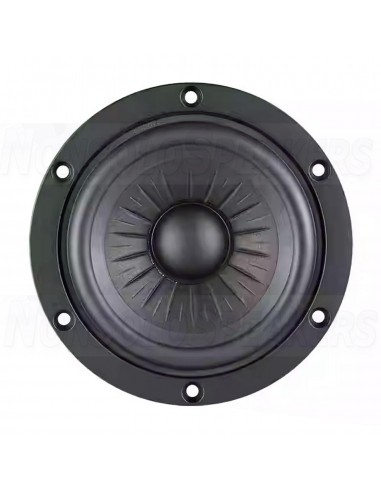

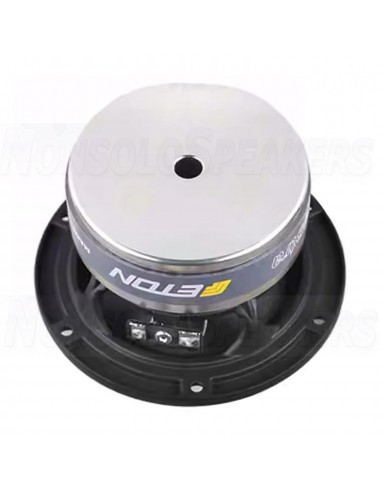

ETON 4-612/C8/25 RP Bass-mid Woofer
ETON 4-612/C8/25 RP Bass-mid Woofer
ETON 4-612/C8/25 RP Bass-mid Woofer
ETON 4-612/C8/25 RP Bass-mid Woofer
ETON 4-612/C8/25 RP Bass-mid Woofer
ETON 4-612/C8/25 RP Bass-mid Woofer

ETON 4-612/C8/25 RP Bass-mid Woofer

ETON 4-612/C8/25 RP Bass-mid Woofer

Step up your audio game with the ETON 4-612/C8/25 RP bass-midrange speaker, a versatile component designed to deliver exceptional sound across a wide range of applications.

SHIPMENT IN 7/10 WORKING DAYS
€71.96 €79.95 -10%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



ETON 4-612/C8/25 RP Bass-mid Woofer

Step up your audio game with the ETON 4-612/C8/25 RP bass-midrange speaker, a versatile component designed to deliver exceptional sound across a wide range of applications. This meticulously crafted driver boasts a ribbed cone geometry that enhances efficiency and extends the lower frequency response, ensuring a rich, full-bodied bass that resonates with your music. The precision-engineered paper cone contributes to a warm, well-balanced midrange, while the included dust cap safeguards the delicate voice coil from harm.

.

Highlights

  • Ribbed cone geometry for improved efficiency and lower frequency response
  • Paper cone for warm, well-balanced midrange and solid fundamental bass
  • Dust cap to protect voice coil from damage

.

Product details

ETON 4-612/C8/25 RP Bass-mid Woofer
Immerse yourself in the captivating clarity and dynamic range of the ETON 4-612/C8/25 RP. Its 40 W RMS power handling ensures ample power to handle demanding audio playback, while the 8 ohm impedance ensures compatibility with a wide range of audio systems. Measuring a compact 10 cm (4 inches) in diameter, this speaker seamlessly integrates into various speaker enclosures, from compact bookshelf speakers to larger home theater setups. With a frequency response extending from 70 Hz to 18 kHz, the ETON 4-612/C8/25 RP delivers a seamless transition between bass, midrange, and high frequencies, ensuring a cohesive and immersive listening experience.
Its sensitivity of 89 dB SPL further enhances its versatility, allowing it to adapt to various room acoustics and sound levels. Whether you're seeking to elevate your home theater experience, enhance your studio monitors, or add a touch of refinement to your car audio system, the ETON 4-612/C8/25 RP bass-midrange speaker is the perfect choice to elevate your audio experience to new heights.
.

Technical Specifications

  • Terminal 2.8/4.8 mm
  • Screw hole diameter 4.5/8 mm
  • Basket edge thickness 6 mm
  • Total depth 66 mm
  • Installation diameter 96 mm
  • Weight 1.2 kg
  • Total diameter 122 mm
  • Winding layers 2
  • Carrier material Kapton Wire material Cu
  • Diameter 25 mm
  • DC resistance Re 5.8 Ω
  • Mechanical resistance RMS 0.37 kg/s
  • Effective radiating area SD 55 cm2
  • Electrical quality Qes 0.34
  • Force factor BLxl 6.1 Tm
  • Load capacity watts 40 W
  • Suspension compliance CMS 1 mm/N
  • Total quality Qts 0.32
  • Total moving mass (including moving air mass) MMD 5.4 g
  • Inductance voice coil Le 0.36 mH
  • Resonance frequency TSP fr 68 Hz
  • Resonance frequency 1W fr 66 Hz
  • Average sound pressure level 1W/1m SPL 88 dB
  • Equivalent volume VAS 4.2 dm3
  • Nominal impedance Zn 8 Ω
  • Xmax mechanical +/- 6.8 mm
  • Mechanical quality Qms 6.78
  • Xmax electrical +/- 2 mm
  • Drive system Overhung Ferrofluid no/no
  • Dimensions 90 x 36 mm
  • Height air gap 6 mm
  • Height 17 mm
  • Material Ferrite/Ferrite Magnetic flux density 1.15 T
  • Recommended frequency range 80 - 5000 Hz
ETON 4-612/C8/25 RP
