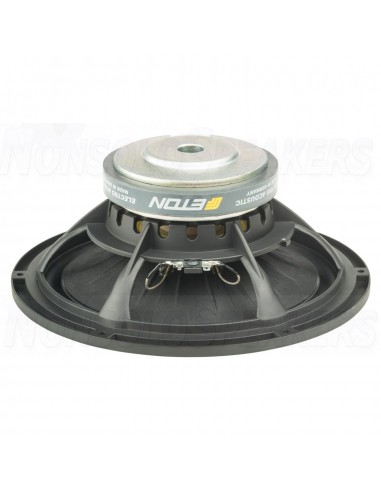

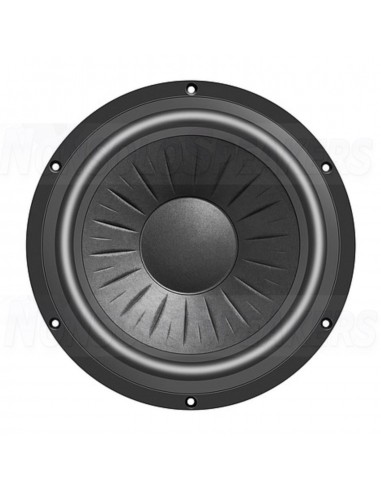

ETON 11-612/C8/50 RP Bass-mid Woofer

Classic 11'' bass-/midrange speaker for 3-way systems, serrated paper membrane geometry, very precise bass reprodruction also in deep frequencies, agile sound

.

Highlights

• Uncompromising sound quality
• Uncolored sound reproduction
• Frequency range: 30 – 1000 Hz

.

Product details

ETON 11-612/C8/50 RP Bass-mid Woofer

Our Orchestra Series with traditional paper cone, newly interpreted with ETON’s expertise. The special, radial ribbing and long-fiber, highly absorbing paper mixture creates a very high degree of impulse fidelity and precision, even at extremely high levels; not to mention the resulting individualized appearance. The special paper mixture guarantees homogeneity by preventing mode formations at all possible frequency ranges.

The Orchestra mid range drivers and woofers are characterized by their natural, warm sound. This results in a balanced, well-contoured and soft mid range. In the low frequency range, our Orchestra is more than convincing with its voluminous and impulsive bass response. With its multiply ventilated and flow-supporting cast basket, the ferrite drive ensures that any occurring compression effects are reduced to a minimum.

Orchestra, a sonic reinterpretation with traditional materials.

Technical Specifications

• Article number 11-612/C8/50 RP
• Woofer Series Orchestra
• Woofer Type Bass-mid Woofer
• Nominal Diameter 11"
• Power Handling (RMS) 120 Watts
• Impedance (Z) 8 Ω
• Sensitivity (SPL at 1m / 2.83V) 91 dB DC
• Resistance (Re) 5.3 Ω
• Voice Coil Inductance (Le) 1.03 mH
• Resonant Frequency (Fs) 23 Hz
• Mechanical Q (Qms) 7.87
• Electromagnetic Q (Qes) 0.30
• Total Q (Qts) 0.29
• Moving Mass Of Diaphragm (Mmd) 54 g
• Mechanical Compliance of Suspension (Cms) 0.81 mm/N
• Surface Area of Cone (Sd) 366 cm2
• BL Product (BL) 11.4 Tm
• Compliance Equivalent Volume (Vas) 152 dm3
• Maximum Linear Excursion (Xmax) 5 mm
• Driver's Mechanical Losses (Rms) 1.13 kg/s
• Voice Coil Former Kapton
• Magnet Material Ferrite
• Overall Outside Diameter 280 mm
• Overall Depth 110.5 mm
• Baffle Cutout Diameter 242 mmMounting Hole Diameter 5.5/9.7 mm
