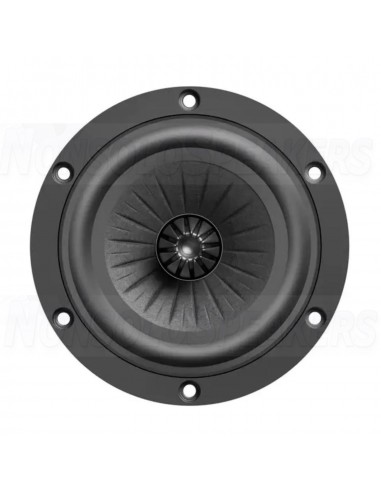

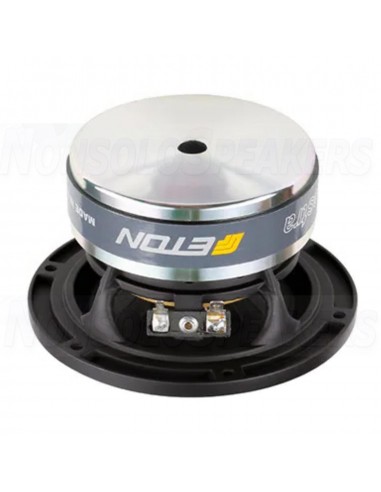

ETON 4-512/C8/25 RP Bass-mid Woofer

The ETON 4-512/C8/25 RP Bass-mid Woofer is a high-quality speaker driver that is designed to deliver a rich, detailed sound. It features a ribbed cone geometry that helps to reduce cone breakup and improve impulse response. This results in a more accurate and detailed sound. The woofer is also designed to provide a warm, well-balanced midrange and a solid, fundamental bass. This makes it a versatile speaker that can be used in a variety of applications, such as home theater, music playback, and studio recording.

.

Highlights

• Ribbed cone geometry
• Neutral sound
• Open design
• Phase plug

.

Product details

ETON 4-512/C8/25 RP Bass-mid Woofer

The woofer is also designed to be very efficient. It has a nominal impedance of 8 ohms and a sensitivity of 89 dB. This means that it can produce a good amount of sound with very little power. The woofer is also very durable and can handle up to 40 W RMS of power.

Overall, the ETON 4-512/C8/25 RP Bass-mid Woofer is a high-quality speaker driver that is sure to please even the most discerning audiophiles. It is a versatile speaker that can be used in a variety of applications, and it is sure to deliver a rich, detailed sound that will transport you to the heart of the music.

Technical Specifications

• Terminal 2,8/4,8 mm
• Screw holes diameter 4,5/8 mm
• Frame depth 6 mm
• Overall depth 66 mm
• Cutout diameter 96 mm
• Weight 1,23 kg
• Overall diameter 122 mm
• Layers 2
• Former material Kapton
• Wire material Cu
• Diameter 25 mm
• DC resistance Re 5,8 Ω
• Mechanical resistance RMS 0,38 kg/s
• Effective piston area SD 55 cm2
• Electrical Q Qes 0,34
• Force factor BLxl 6 Tm
• Rated power Watt 40 W
• Suspension compliance CMS 0,86 mm/N
• Total Q Qts 0,32
• Total moving mass (incl. air mass) MMD 4,5 g
• Voice coil inductance Le 0,35 mH
• Resonance frequency TSP fr 80 Hz
• Resonance frequency 1W fr 78 Hz
• Characteristic SPL 1W/1m SPL 88 dB
• Equivalent volume VAS 3,7 dm3
• Nominal impedance Zn 8 Ω
• Xmax mechanical +/- 6,8 mm
• Mechanical Q Qms 6,65
• Xmax electrical +/- 2 mm
• Motor type Overhung Ferrofluid no/nein
• Dimensions 90 x 36 mm
• Height of air gap 6 mm
• Height 17 mm
• Material Ferrite/Ferrit Flux density 1,15 T
• Recommended frequency range 80 -5000 Hz
