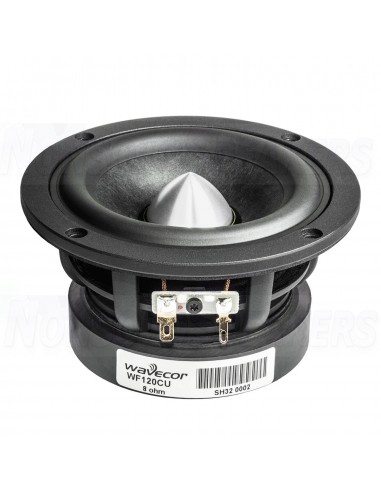

Wavecor WF120CU08 11 cm bass midrange 8 ohm
Wavecor WF120CU08 11 cm bass midrange 8 ohm

Wavecor WF120CU08 11 cm bass midrange 8 ohm

SHIPMENT IN 5-7 WORKING DAYS
€158.00
Tax included
rating No review at the moment

Wavecor WF120CU08 11 cm bass midrange 8 ohm

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



11 cm bass-midrange driver with glass fibre cone. The basket is made of die-cast.

  • power handling (continuous/programme) = 60 W
  • frequency range = 50-5000 Hz
  • resonance frequency fs = 55 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,7 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 5,9 N/A
  • effective piston radiating area Sd = 54 cm2
  • effective mechanical mass incl. air load mms = 6 g
  • equivalent volume of compliance Vas = 5,8 l
  • total Q factor Qts = 0,37 (Qms=9,4, Qes=0,39)
  • voice coil diameter = 32 mm
  • maximum peak linear excursion vibration xlin = +/- 4 mm
  • mounting diameter d = 99 mm
  • overall diameter d = 120,5 mm
  • mounting depth (not countersunk) t = 72 mm

recommended cabinet 1:
closed cabinet with 1,4 L volume
from 116/73 Hz (-3dB/-8dB)

recommended cabinet 2:
5 L volume bass reflex cabinet
with HP35 reflex tube, 12 cm long.
from 59/47 Hz (-3dB/-8dB).
