Wavecor FR055WA01 2" alu-con fullrange 4 ohm

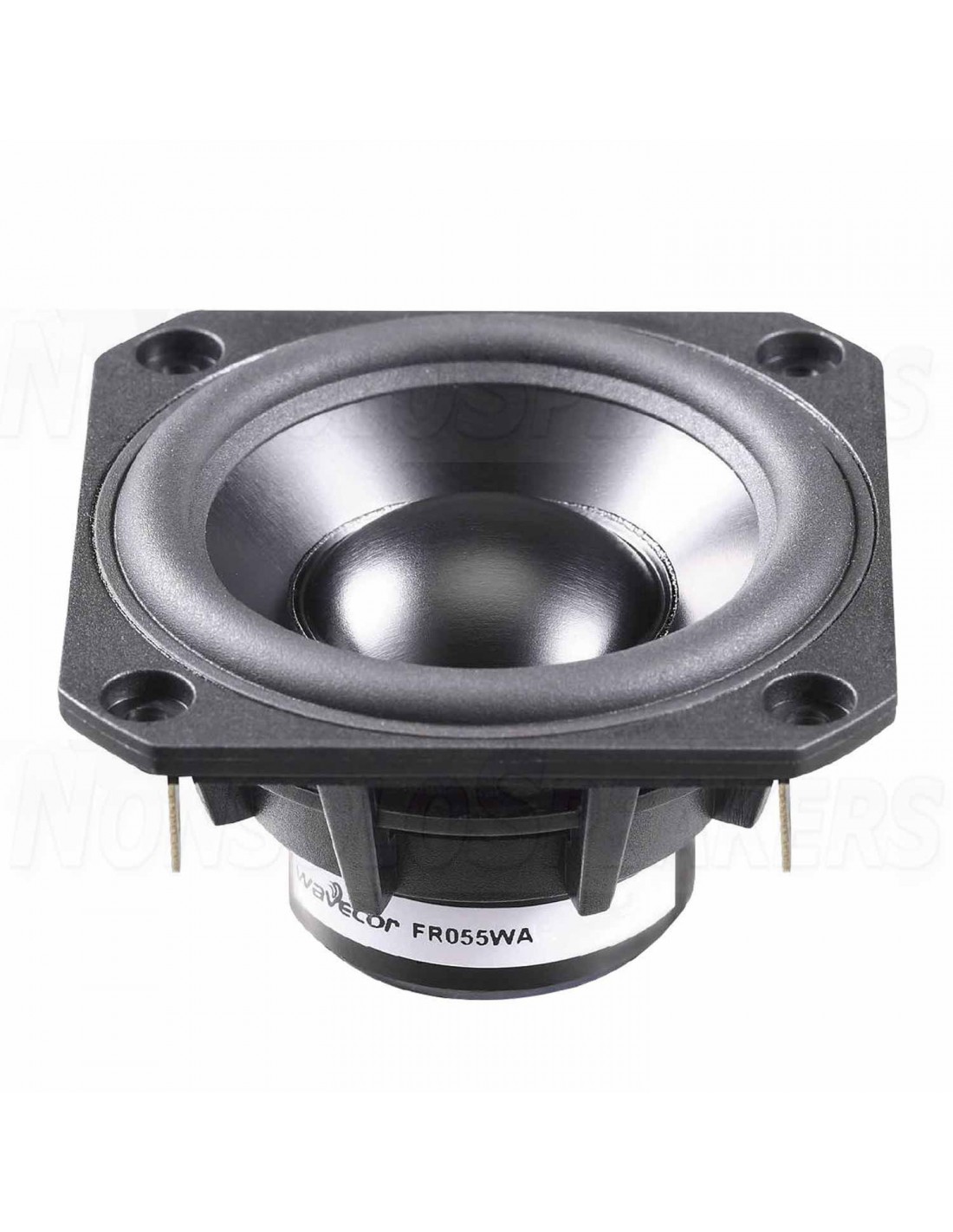

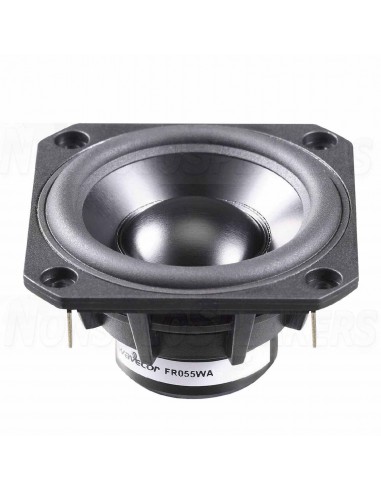

The Wavecor FR055WA01 is a 2" aluminum cone fullrange that is designed for compact multimedia installations. The FR055WA01 is a very good choices for any project requiring fullrange audio in a compact space.

Highlights
  • True full-range design with on-axis output to beyond 20,000 Hz
  • Dual neodymium magnet structure for high efficiency and almost ideal magnetically shielding
  • Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
  • Vented polymer chassis for lower air flow speed reducing audible distortion
  • Vented voice coil former for reduced distortion and compression
  • Low-loss suspension (high Qm) for better reproduction of details and dynamics
  • Conex spider for better durability under extreme conditions
Product Specifications
  • Nominal Diameter2"
  • Power Handling (RMS)20 Watts
  • Power Handling (max)40 Watts
  • Impedance4 ohms
  • Frequency Response200 to 20,000 Hz
  • Sensitivity83.5 dB 2.83V/1m
  • Voice Coil Diameter0.87"
Thiele-Small Parameters
  • Resonant Frequency (Fs)142 Hz
  • DC Resistance (Re)3.1 ohms
  • Voice Coil Inductance (Le)0.079 mH
  • Mechanical Q (Qms)8.8
  • Electromagnetic Q (Qes)1.01
  • Total Q (Qts)0.91
  • Compliance Equivalent Volume (Vas)0.009 ft.³
  • Mechanical Compliance of Suspension (Cms)0.785 mm/N
  • BL Product (BL)2.09 Tm
  • Diaphragm Mass Inc. Airload (Mms)1.60g
  • Maximum Linear Excursion (Xmax)1.35 mm
  • Surface Area of Cone (Sd)15.6 cm²
Materials of Construction
  • Cone MaterialAluminum
  • Voice Coil Wire MaterialCopper
  • Voice Coil FormerFiberglass
  • Basket / Frame MaterialPolymer
  • Magnet MaterialNeodymium
Mounting Information
  • Overall Outside Diameter2.17"
  • Baffle Cutout Diameter2.00"
  • Depth1.18"
  • Bolt Circle Diameter2.39"
  • # Mounting Holes4
Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)
  • Sealed Volume0.012 ft.³
  • Sealed F3149.3 Hz
  • Vented Volume0.044 ft.³
  • Vented F386.79 Hz
FR055WA01
