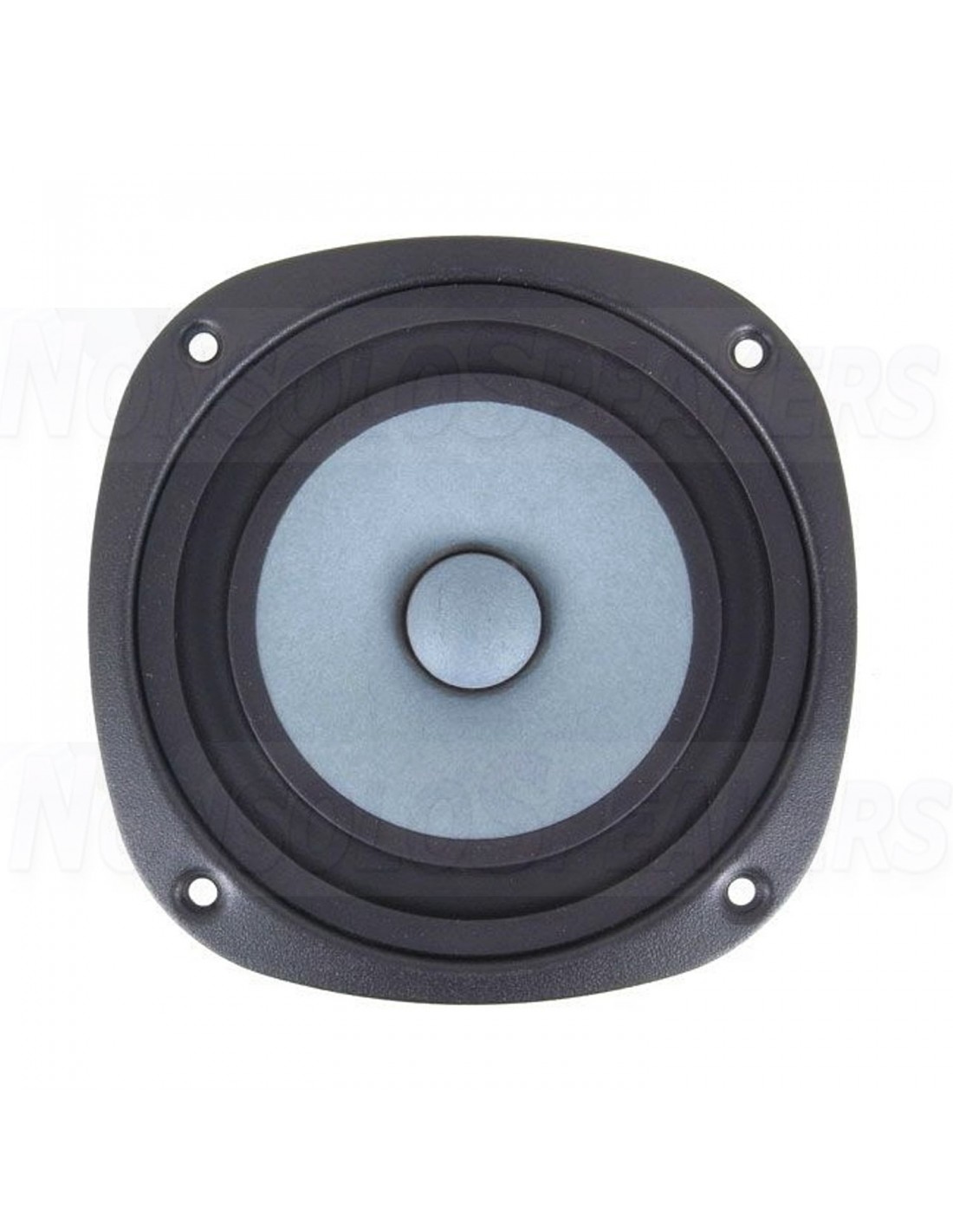

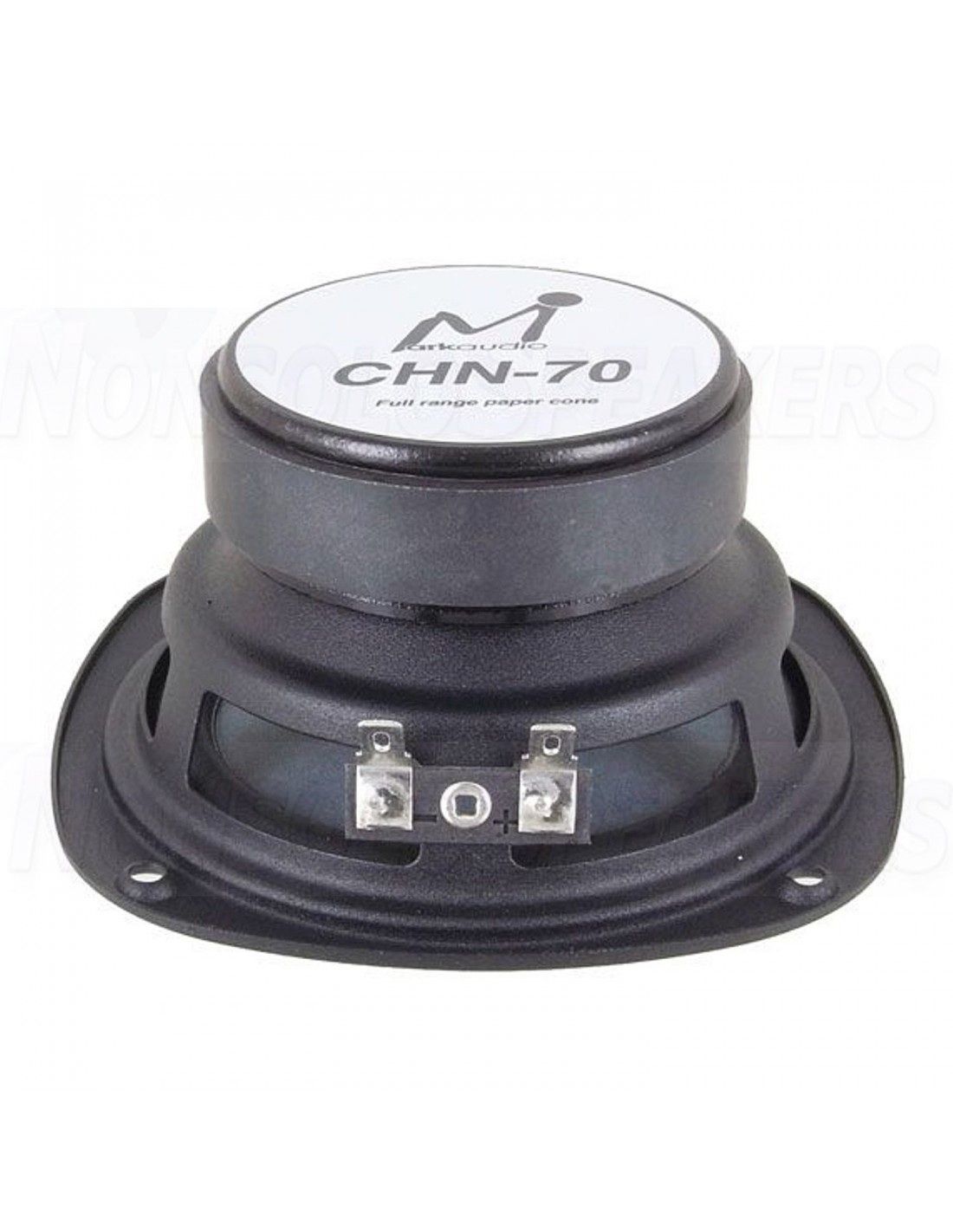

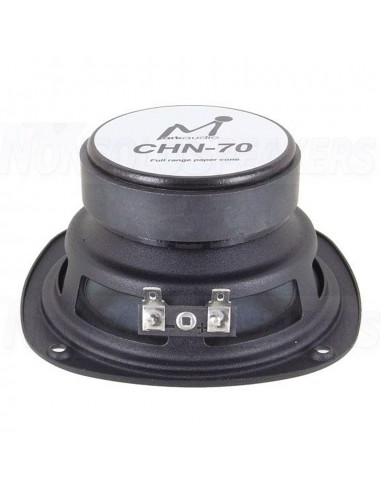

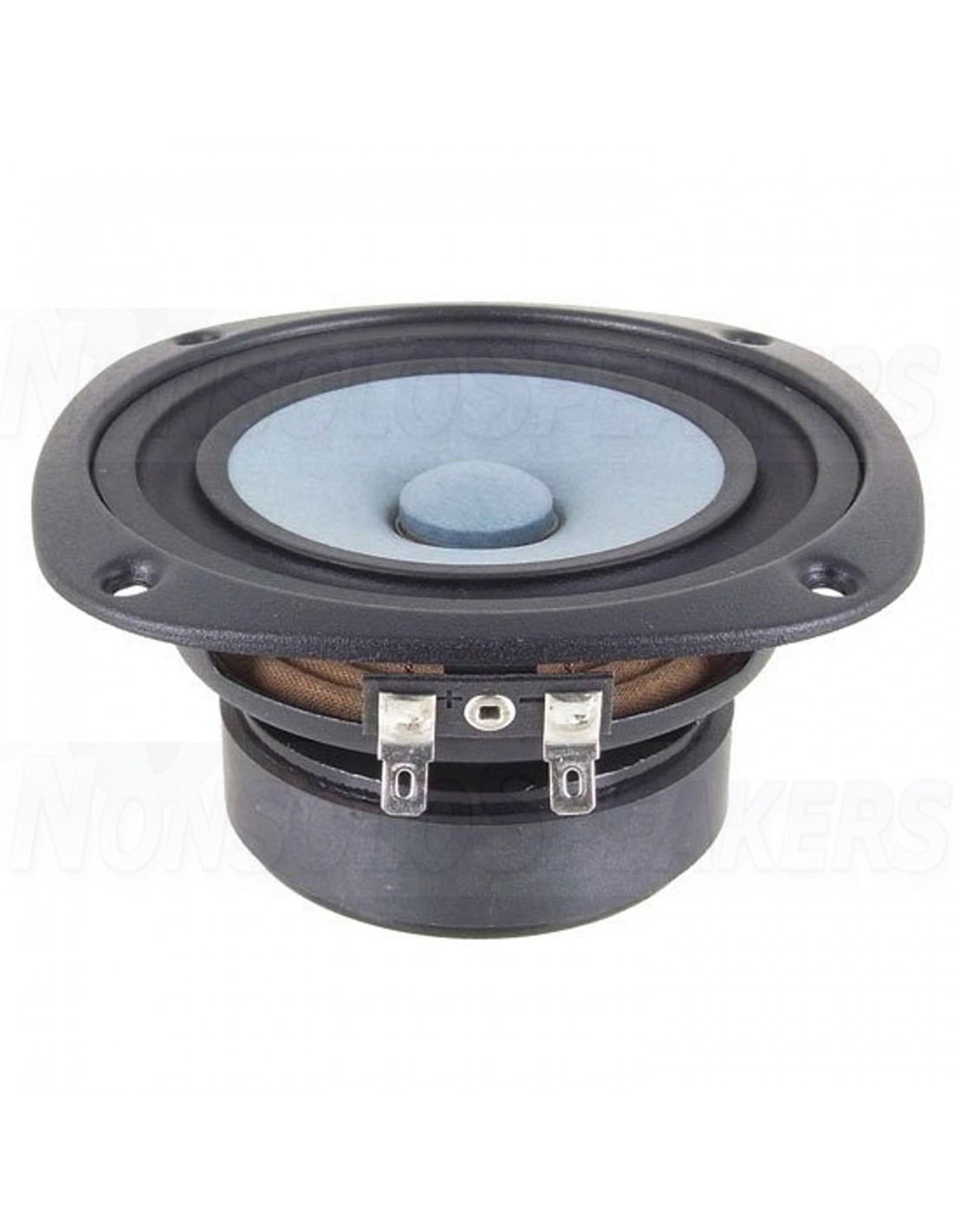

Markaudio CHN-70 5" Full Range Paper Woofer

Markaudio CHN-70 5" Full Range Paper Woofer

Name: Markaudio CHN-70 5" Full Range Paper Woofer
Brand: MARKAUDIO
SKU: Markaudio CHN-70
Price: 32.45 EUR
Availability: InStock

Markaudio CHN-70 5" Full Range Paper Woofer

SHIPMENT IN 5-7 WORKING DAYS

€32.45

Tax included

No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs

Shipping Costs

€12.60

Shipping Time

Want to check another country or courier?

Markaudio CHN-70 5" Full Range Paper Woofer

Price for 1 piece

The CHN-70 is a Full Range design for use in many audio applications. Designed by Mark Fenlon and Evan Yu for use by audio end-users who want a high-performance driver at a lower cost.

Highlights

Natural Sound

Long-throw (4mm X-max)

Improved paper cone

Improved dust cap

Product details

Markaudio CHN-70 5” Full Range Paper Woofer

The cone, coil, and suspensions are all-new designs. The profile shape is unique to this driver, to give it a neutral musical tone. The frame is made from 0.8mm high quality pressed steel with synthetic damping coating to reduce vibrations and for best environmental protection. The CHNʼs sound character is natural, especially suitable for vocal reproduction. The CHN70 is suitable for sealed and ported box designs from 4 liters to 12 liters volume. Other box designs can also be used.

Specifications

Article number CHN-70
Woofer Series CH Series
Woofer Type Full-range
Nominal Diameter 4"
Power Handling (RMS) 16 Watts
Power Handling (max) 50 Watts
Impedance (Z) 8 ohms
Sensitivity 86.7 dB 2.83V/1m
Frequency Response 50 to 20,000 Hz
Voice Coil Diameter 1"
DC Resistance (Re) 5 ohms
Voice Coil Inductance (Le) 0.17 mH
Resonant Frequency (Fs) 71.6 Hz
Mechanical Q (Qms) 1.85
Electromagnetic Q (Qes) 0.65
Total Q (Qts) 0.48
Diaphragm Mass Inc. Airload (Mms) 3.4 g
Surface Area of Cone (Sd) 50.27 cm²
BL Product (BL) 3.4 Tm
Compliance Equivalent Volume (Vas) 0.188 ft.³
Maximum Linear Excursion (Xmax) 4 mm
Cone / Diaphragm Material Paper
Surround Material Rubber
Basket / Frame Material Glass-Fibre
Magnet Material Ferrite
Overall Outside Diameter 4.92"
Baffle Cutout Diameter 3.64"
Bolt Circle Diameter 4.45"
# Mounting Holes 4

Reference Markaudio CHN-70

In stock 4 Items

Markaudio is a well-known brand specializing in high-performance full-range drivers and speakers. They’re particularly popular among audiophiles and DIY speaker builders because of their exceptional sound quality and innovative designs.

Markaudio’s drivers are known for:

Full-Range Sound: Their speakers typically focus on delivering clear, uncolored sound across a broad range, without relying on crossovers or multiple drivers. This results in a more natural soundstage.

High Efficiency: Markaudio drivers are usually designed to be highly efficient, which means they can produce loud and clear sound even with lower-powered amplifiers.

Compact Size: Many of their drivers are compact, making them ideal for bookshelf or small speaker builds while still providing excellent sound reproduction.

Their most popular models include:

Markaudio Alpair Series: This is one of their flagship lines, known for its clarity and wide frequency response.

Markaudio CHR Series: These are also highly regarded, with some models offering even broader dispersion and better midrange presence.
