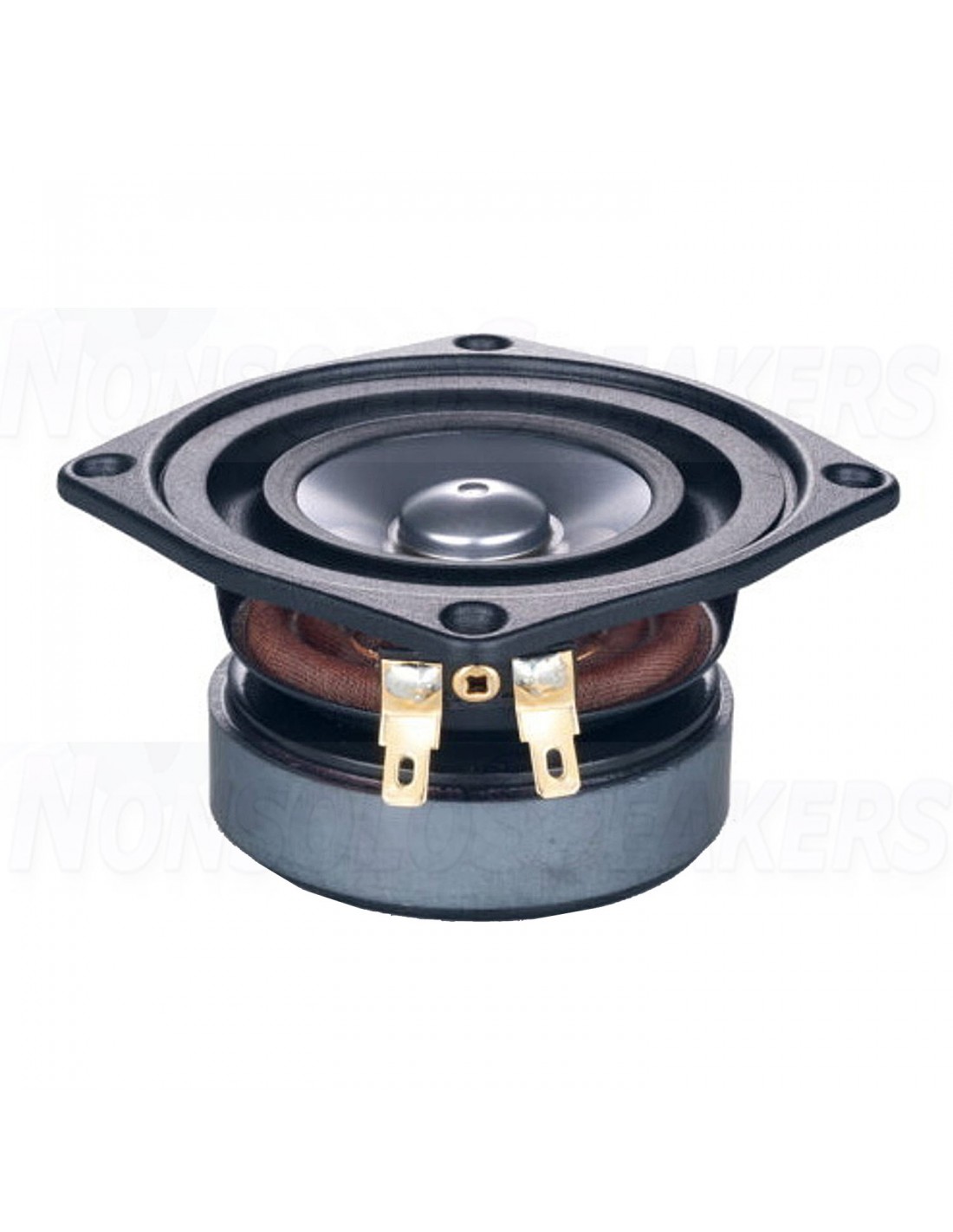

Markaudio CHN-40 Full-range Woofer

Name: Markaudio CHN-40 Full-range Woofer
Brand: MARKAUDIO
SKU: Markaudio CHN-40
Price: 18.45 EUR
Availability: OutOfStock

Markaudio CHN-40 Full-range Woofer

Out-of-Stock

€18.45

Tax included

No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs

Shipping Costs

€14.40

Shipping Time

Want to check another country or courier?

Markaudio CHN-40 Full-range Woofer

Price for 1 piece

Product description

The MarkAudio CHN-40 is Markaudio’s smallest driver in its entry level line up after the CHN-50 and CHN-70, the compact 2.5 inch unit suitable for use in smaller full range or nearfield loudspeaker systems, as a quality mid-tweeter for low-crossover multiway designs, and for array applications.

Highlights

40mm Fullrange drive unit

8ohm single ferrite magnet

2.5inch silver colour magnesium alloy cone

Operating range to 25KHz –very linear response

Low-profile multiform cone –broad directivity pattern

Long stroke suspension with progressive-rate spider

Low profile surface-mount metal basket

Product details

Markaudio CHN-40 2.5" Full-range Woofer 8 Ohm

The CHN40 has a gentle rise into the low and high frequency response, as seen in some of our more expensive drive units, to enhance speaker box off-axis positioning flexibility. The sound presentation is forgiving, without glare, and the Thiele / Small parameters, with a generous 3.5mm (1-way) Xmax are balanced for ease of use.The low-mass voice coil, suspension and shallow profile magnesium alloy cone are custom designs for the CHN40. The pressed steel frame is designed to be very open and allow airflow to be as free as possible to the rear of the cone. Response extends from resonance to beyond 25KHz, and the impedance rise at higher frequencies is only modest, due to the careful motor design.

The CHN40, like the larger driver in this series is versatile, easy to install, making it suitable for a wide variety of applications.

Specifications

Article number CHN-40
Woofer Series CH-Serie
Woofer Type Full-range
Nominal Diameter 2.5"
Power Handling (RMS) 7 Watts
Impedance (Z) 8 ohms
DC Resistance (Re) 6.8 Ohms

Reference Markaudio CHN-40

Markaudio is a well-known brand specializing in high-performance full-range drivers and speakers. They’re particularly popular among audiophiles and DIY speaker builders because of their exceptional sound quality and innovative designs.

Markaudio’s drivers are known for:

Full-Range Sound: Their speakers typically focus on delivering clear, uncolored sound across a broad range, without relying on crossovers or multiple drivers. This results in a more natural soundstage.

High Efficiency: Markaudio drivers are usually designed to be highly efficient, which means they can produce loud and clear sound even with lower-powered amplifiers.

Compact Size: Many of their drivers are compact, making them ideal for bookshelf or small speaker builds while still providing excellent sound reproduction.

Their most popular models include:

Markaudio Alpair Series: This is one of their flagship lines, known for its clarity and wide frequency response.

Markaudio CHR Series: These are also highly regarded, with some models offering even broader dispersion and better midrange presence.
