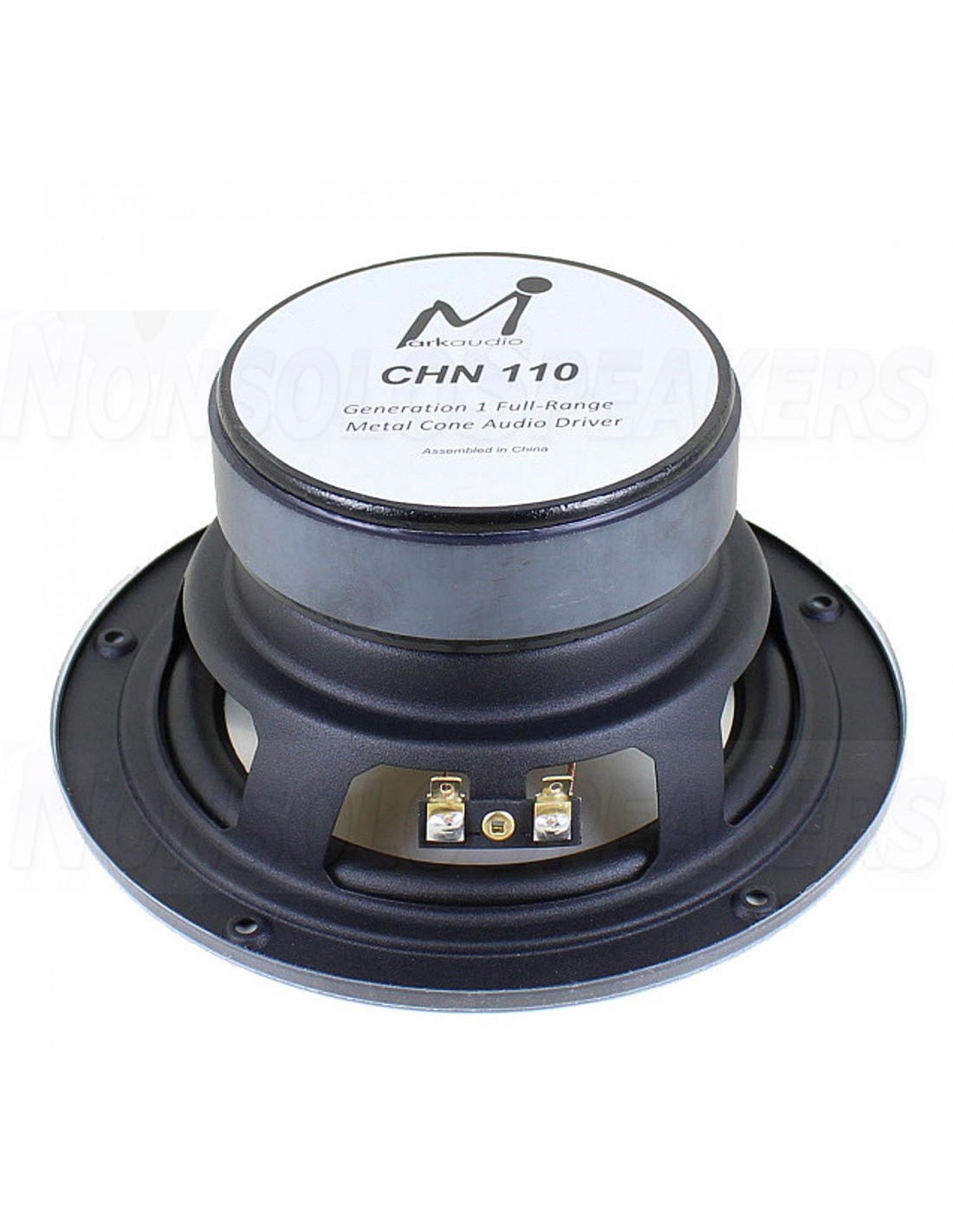

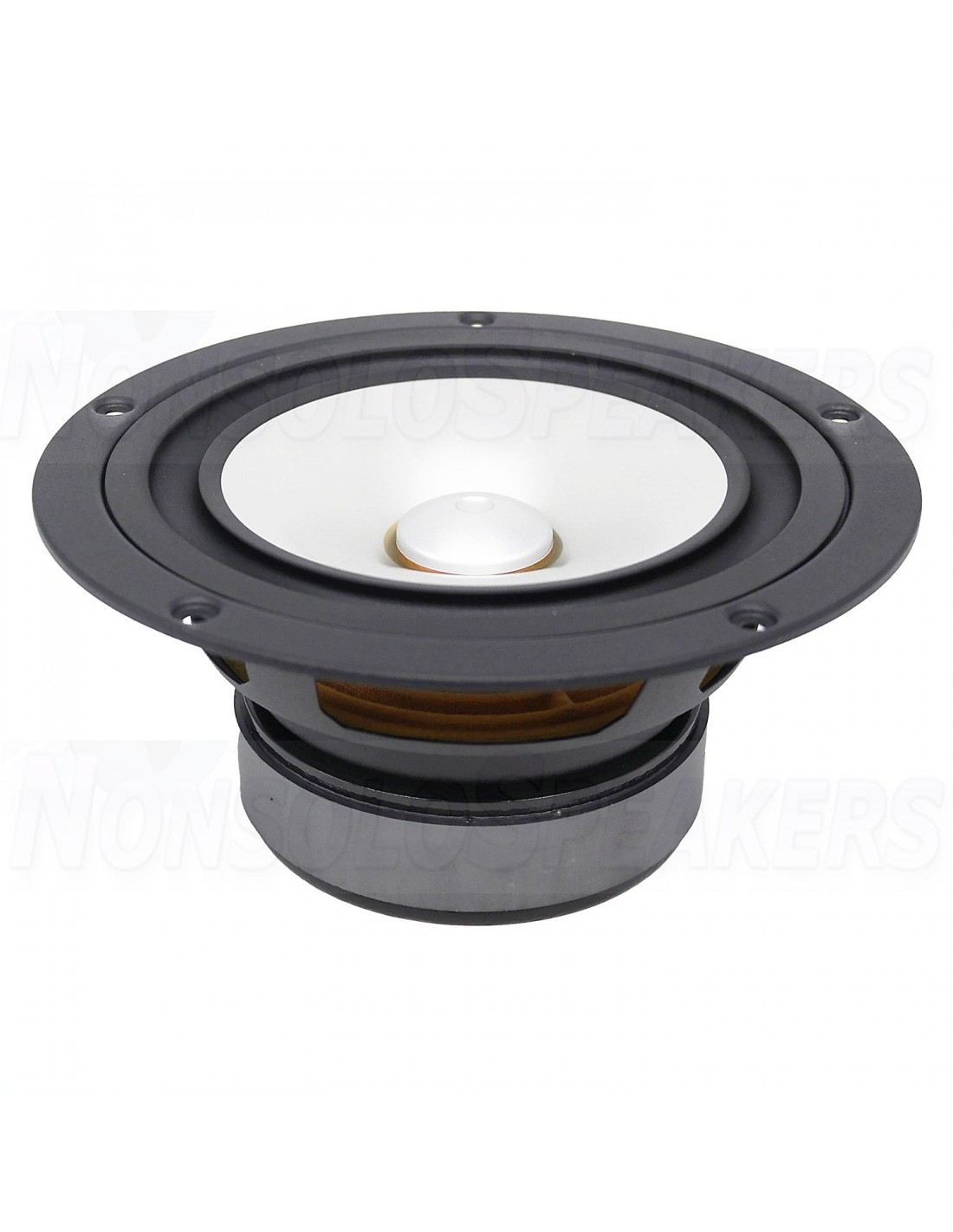

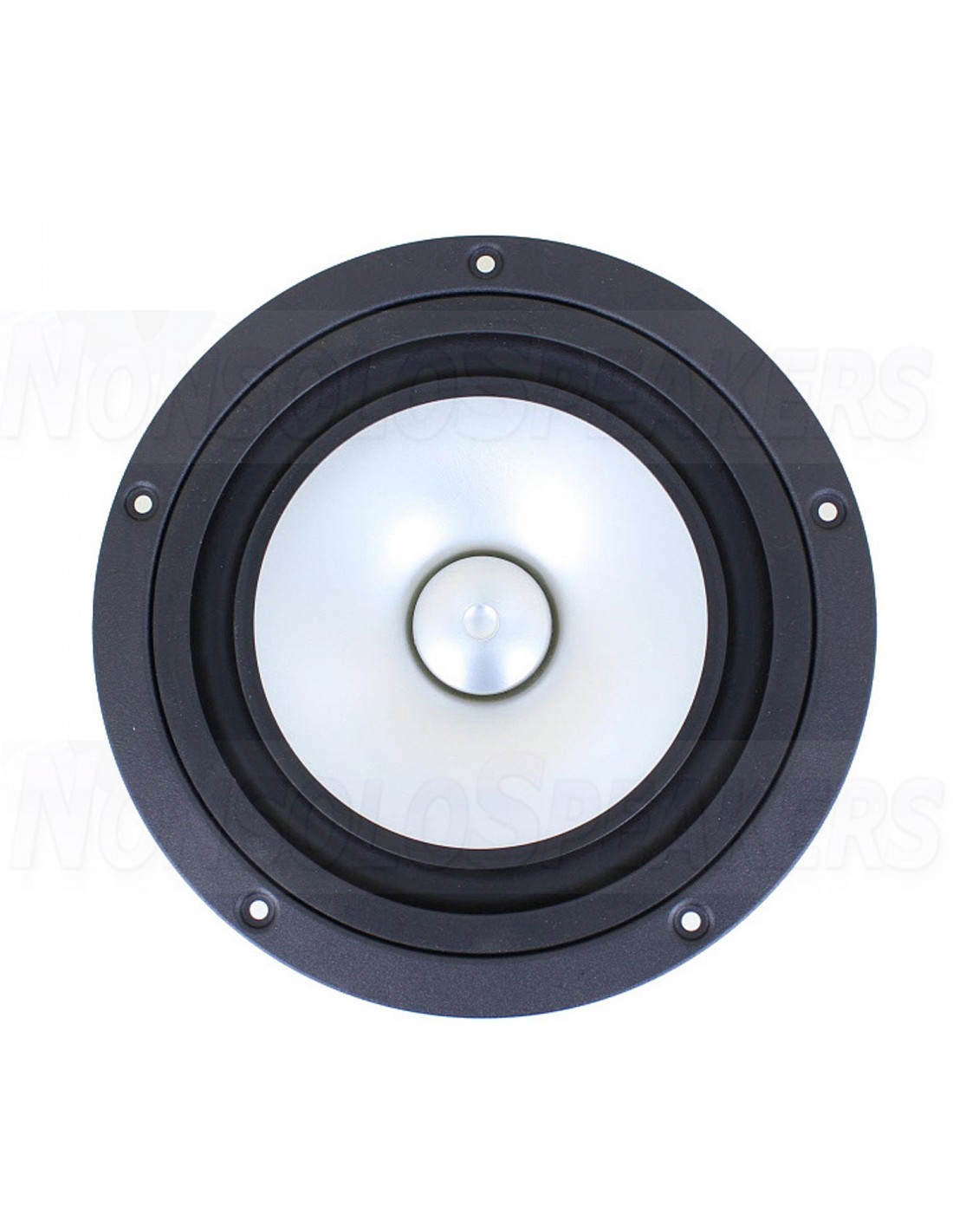

Markaudio CHN-110 Silver 6,75" Full Range Woofer

Price for 1 piece

The CHN-110 is a brand-new 5.75" (actual frame diameter 6.75") driver high fidelity multi-purpose design. Exploiting technologies and features from Markaudio’s continuous research, it has been carefully optimised to provide exceptional bass extension beyond what many 5 ½ inch to 6 ½ inch mid-bass units can deliver combined with full-range frequency output.

-

Highlights

New low-distortion motor

Exceptional bass extension

Improved voice coil former

-

Product details

Markaudio CHN-110  Silver  6,75" Full Range Woofer

The CHN-110 is a brand-new 5.75" (actual frame diameter 6.75") driver high fidelity multi-purpose design. Exploiting technologies and features from Markaudio’s continuous research, it has been carefully optimised to provide exceptional bass extension beyond what many 5 ½ inch to 6 ½ inch mid-bass units can deliver combined with full-range frequency output. The CHN-110 cone exploits a high-strength series aerospace grade alloy designed to cope with high bending stress loads. Based upon the shallow, wide-dispersion multiform cone concept, the material thickness has been increased to allow greater operational low frequency load capacity. The all-new long-stroke suspension has been optimised to enhance and support the remarkable low-frequency load capacity, and has an air volume compliance of almost 25 litres. With a new low-distortion motor designed to provide a medium Q, the CHN-110 is intended for use in larger enclosures where it can produce significant bass extension for a driver of its size, while providing a sensitivity of over 88dB 1m/w, and a smooth high frequency range extending to 25KHz at +80dB. Other features include an “easy install” heavy duty steel frame for both surface and recessed mounting.

The CHN-110 provides custom builders with wide operational flexibility at an affordable price, allowing use either as a genuine, high-performance full-range driver, or as a wide-range mid-bass with simple filtering. Ideal for use in high-fidelity, home-theatre, commercial A/V applications, and suiting a wide range of enclosure types, it continues Markaudio’s reputation for providing qualitative excellence and advanced mechanical engineering at an accessible level.

-

Specifications

• Article number CHN-110
• Woofer Series CH Series
• Woofer Type Full-range
• Power Handling (max) 45watts Nom
• Impedance (Z) 8 ohms
• Mechanical Q (Qms) 2.86
• Electromagnetic Q (Qes) 0.4884
• Total Q (Qts) 0.4172
• Diaphragm Mass Inc. Airload (Mms) 8.7700 g
• Moving Mass Of Diaphragm (Mmd) 8.1228 g
• Mechanical Compliance of Suspension (Cms) 1.4811
• Surface Area of Cone (Sd) 0.0109 m2
• BL Product (BL) 5.8206 TM
• Compliance Equivalent Volume (Vas) 24.7335 L
• Maximum Linear Excursion (Xmax) 8mm 1 way
• Cone / Diaphragm Material Aluminium
