W4-1337SDF - 4" Full Range TB-Speakers - TANG BAND
W4-1337SDF - 4" Full Range TB-Speakers - TANG BAND
W4-1337SDF - 4" Full Range TB-Speakers - TANG BAND
W4-1337SDF - 4" Full Range TB-Speakers - TANG BAND

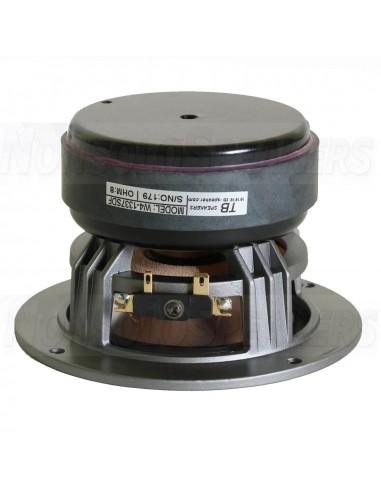

TANG BAND W4-1337SDF - 4" Full Range TB-Speakers

TANG BAND W4-1337SDF - 4" Full Range TB-Speakers

The Tang Band W4-1337SDF 4" driver achieves extended range and high efficiency, thanks in large part to its exotic titanium cone. Achieves extended range thanks in part to its exotic titanium cone .Offers high power handling, good mechanical excursion abilities, and strong bass performance .Great for home theater or hi-fi midbass applications

SHIPMENT IN 5-7 WORKING DAYS
€69.97 €73.65 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Quantity Unit discount You Save
2 5% €7.37
4 7% €20.62
Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W4-1337SDF - 4" Full Range TB-Speakers

This high-quality full range 4" driver, the Tang Band W4-1337SDF, utilizes a unique titanium cone, solid aluminum phase plug, Santoprene rubber half-roll surround, underhung voice coil, and large ceramic ferrite motor structure. The W4-1337SDF offers high power handling, good mechanical excursion abilities, and strong bass performance for a driver of its size. Great for home theater or hi-fi midbass applications.

-

Product Details

  • Brand Tang Band
  • Model W4-1337SDF
  • Part Number 264-916
  • UPC 844632092848
  • Unit of Measure Each
  • Weight 3.65

.

Product Specifications

  • Nominal Diameter 4"
  • Moving Mass Of Diaphragm (Mmd) 3.99
  • Power Handling (RMS) 25 Watts
  • Power Handling (MAX) 50 Watts
  • Impedance 8Ω
  • Frequency Response 70 to 20,000Hz
  • Sensitivity 89dB 2.83V/1m
  • Voice Coil Diameter 1"

.

Thiele-Small Parameters

  • Resonant Frequency (Fs) 70Hz
  • DC Resistance (Re) 6.3Ω
  • Voice Coil Inductance (Le) 0.03mH
  • Mechanical Q (Qms) 2.04
  • Electromagnetic Q (Qes) 0.4
  • Total Q (Qts) 0.34
  • Compliance Equivalent Volume (Vas) 0.2ft³
  • Mechanical Compliance of Suspension (Cms) 1.21mm/N
  • BL Product (BL) 5.32T·m
  • Maximum Linear Excursion (Xmax) 2.5mm
  • Surface Area of Cone (Sd) 57cm²

.

Materials of Construction

  • Cone Material Titanium
  • Surround Material Santoprene®
  • Basket / Frame Material Cast Aluminum
  • Magnet Material Ferrite

.

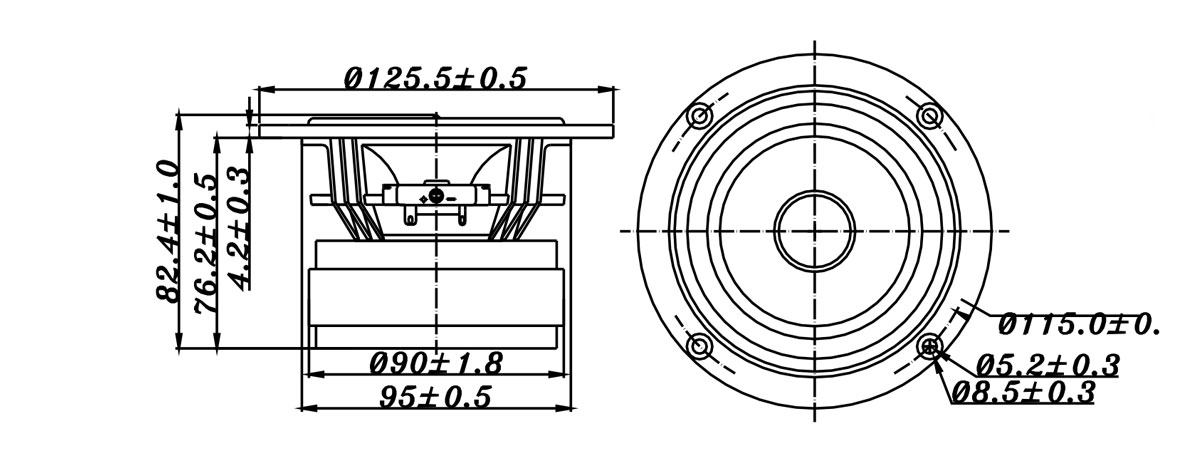

Mounting Information

  • Overall Outside Diameter 4.94"
  • Baffle Cutout Diameter 3.74"
  • Depth 3.24"
  • # Mounting Holes 4

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

  • Sealed Volume 0.04ft³
  • Sealed F3 167Hz
  • Vented Volume 0.09ft³
  • Vented F3 101Hz

.

.

W4-1337SDF
