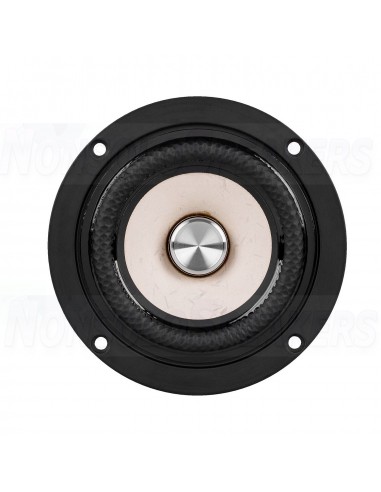

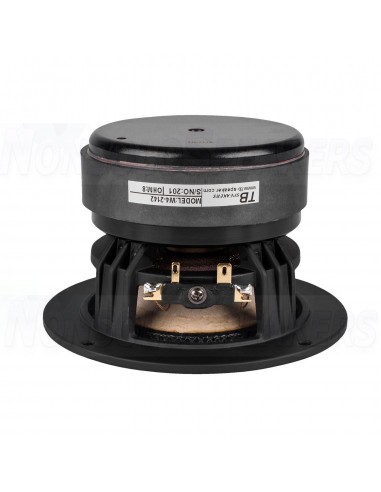

TANG BAND W4-2142 - 4" Full Range TB-Speakers
TANG BAND W4-2142 - 4" Full Range TB-Speakers
TANG BAND W4-2142 - 4" Full Range TB-Speakers
TANG BAND W4-2142 - 4" Full Range TB-Speakers
TANG BAND W4-2142 - 4" Full Range TB-Speakers
TANG BAND W4-2142 - 4" Full Range TB-Speakers

TANG BAND W4-2142 - 4" Full Range TB-Speakers

TANG BAND W4-2142 - 4" Full Range TB-Speakers

With a bamboo fiber paper cone, structured Santoprene surround, and underhung motor, the W4-2142 4" full range from Tang Band has impressive response from 60 to 20,000 with very low distortion.

Variants
TANG BAND W4-2142 - 4" Full Range TB-Speakers
TANG BAND W4-2414 - Full Range 4" - Cone Al+PPM - Ferrite
TANG BAND W4-2417 - Full Range TB 4" - Cone Al+PPM - Ferrite
SHIPMENT IN 7/10 WORKING DAYS
€70.30 €74.00 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Quantity Unit discount You Save
2 5% €7.40
4 7% €20.72
Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W4-2142 - 4" Full Range TB-Speakers

Tang Band's versatile W4-2142 full range driver uses an underhung voice coil, which places the entire coil inside the magnetic gap, for the utmost in control and accuracy. Designed for minimum distortion and resonance, the bamboo fiber paper cone and structured surround produces smooth response without harsh peaks or dips. The aluminum phase plug improves off axis response while also acting as a shorting ring providing greater control of the voice coil resulting in lower distortion.

-

Product Details

  • Brand Tang Band
  • Model W4-2142
  • Part Number 264-957
  • UPC 848864023786
  • Unit of Measure Each
  • Weight 3.65

Product Specifications

  • Nominal Diameter 4"
  • Bolt Circle Diameter 4.5
  • Moving Mass Of Diaphragm (Mmd) 4.61
  • Power Handling (RMS) 25 Watts
  • Power Handling (MAX) 50 Watts
  • Impedance 8Ω

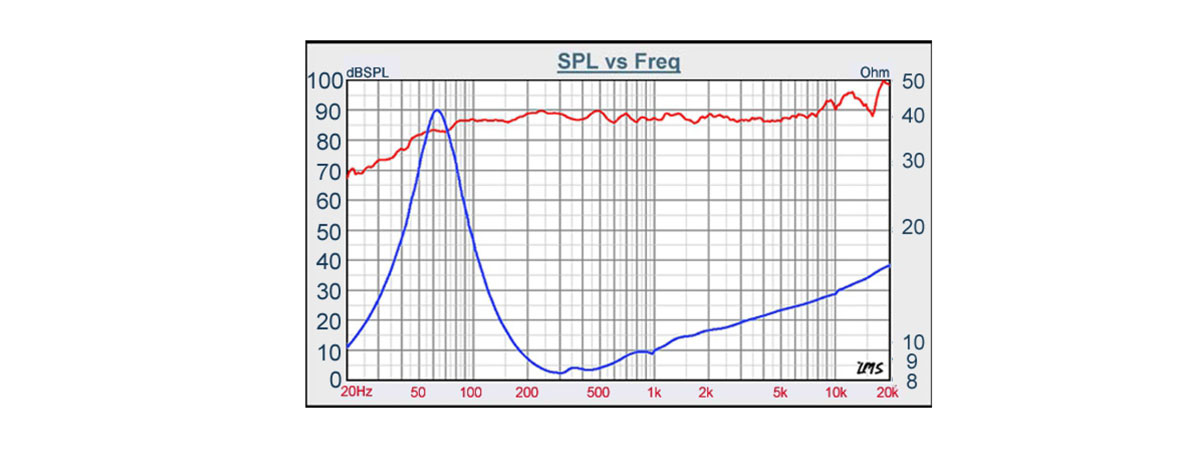

  • Frequency Response 60 to 20,000Hz
  • Sensitivity 88dB 2.83V/1m
  • Voice Coil Diameter 1"

Thiele-Small Parameters

  • Resonant Frequency (Fs) 60Hz
  • DC Resistance (Re) 6.3Ω
  • Voice Coil Inductance (Le) 0.022mH
  • Mechanical Q (Qms) 2.2
  • Electromagnetic Q (Qes) 0.39
  • Total Q (Qts) 0.33
  • Compliance Equivalent Volume (Vas) 0.22ft³
  • Mechanical Compliance of Suspension (Cms) 1.52mm/N
  • BL Product (BL) 5.41T·m
  • Maximum Linear Excursion (Xmax) 2.4mm
  • Surface Area of Cone (Sd) 54.3cm²

Materials of Construction

  • Cone Material Bamboo Fiber / Paper
  • Surround Material Santoprene®
  • Voice Coil Wire Material Copper
  • Voice Coil Former Kapton® / Polyimide
  • Basket / Frame Material Cast Aluminum
  • Magnet Material Ferrite

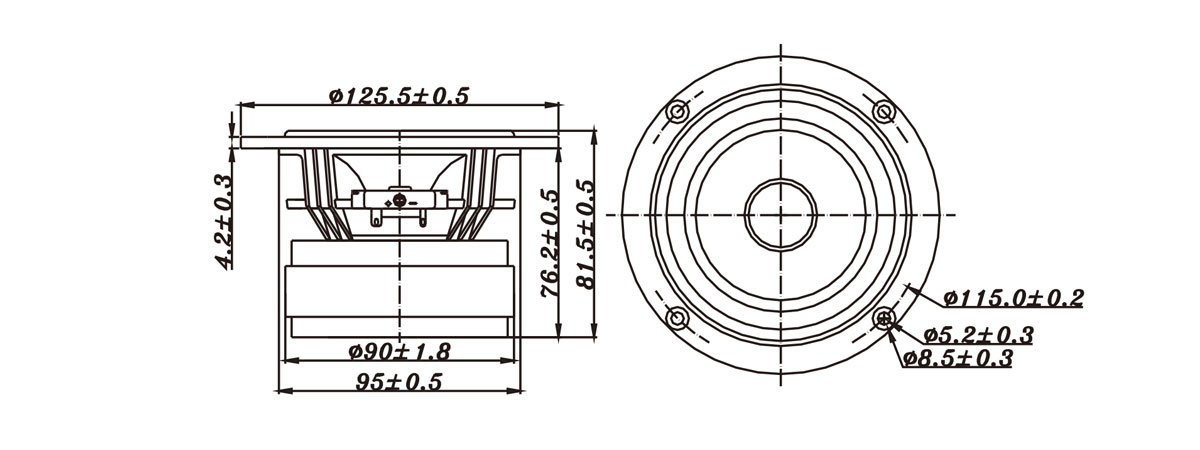

  • Mounting Information
  • Overall Outside Diameter 4.92"
  • Baffle Cutout Diameter 3.74"
  • Depth 3.18"
  • # Mounting Holes 4

W4-2142
300 Items
