TANG BAND W4-2414 - Full Range 4" - Cone Al+PPM - Ferrite
TANG BAND W4-2414 - Full Range 4" - Cone Al+PPM - Ferrite
TANG BAND W4-2414 - Full Range 4" - Cone Al+PPM - Ferrite
TANG BAND W4-2414 - Full Range 4" - Cone Al+PPM - Ferrite
TANG BAND W4-2414 - Full Range 4" - Cone Al+PPM - Ferrite
TANG BAND W4-2414 - Full Range 4" - Cone Al+PPM - Ferrite

TANG BAND W4-2414 - Full Range 4" - Cone Al+PPM - Ferrite

TANG BAND W4-2414 - Full Range  4" - Cone Al+PPM - Ferrite

Variants
TANG BAND W4-2414 - Full Range 4" - Cone Al+PPM - Ferrite
TANG BAND W4-2142 - 4" Full Range TB-Speakers
TANG BAND W4-2417 - Full Range TB 4" - Cone Al+PPM - Ferrite
SHIPMENT IN 7/10 WORKING DAYS
€68.40 €72.00 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Quantity Unit discount You Save
2 5% €7.20
4 7% €20.16
Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like

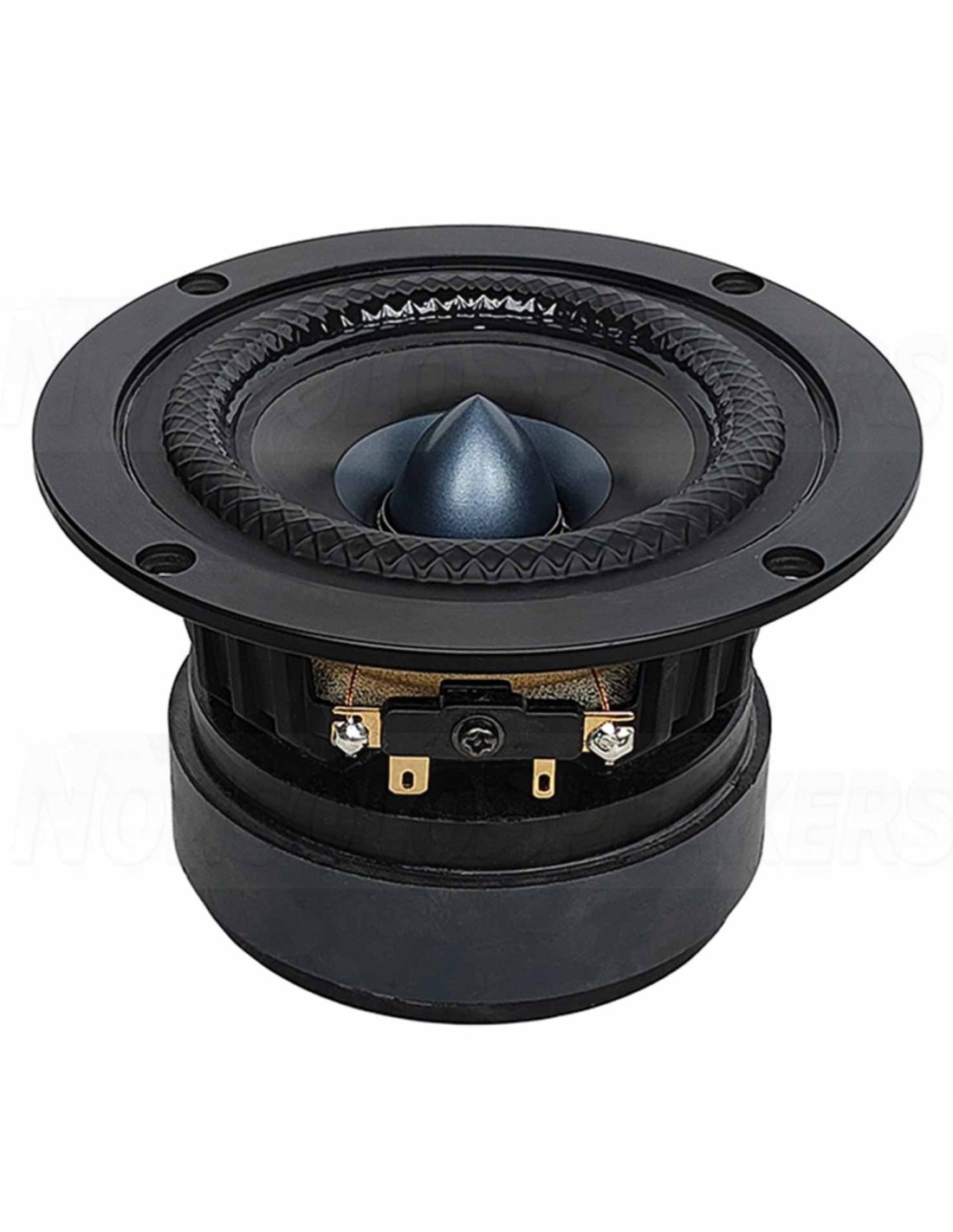

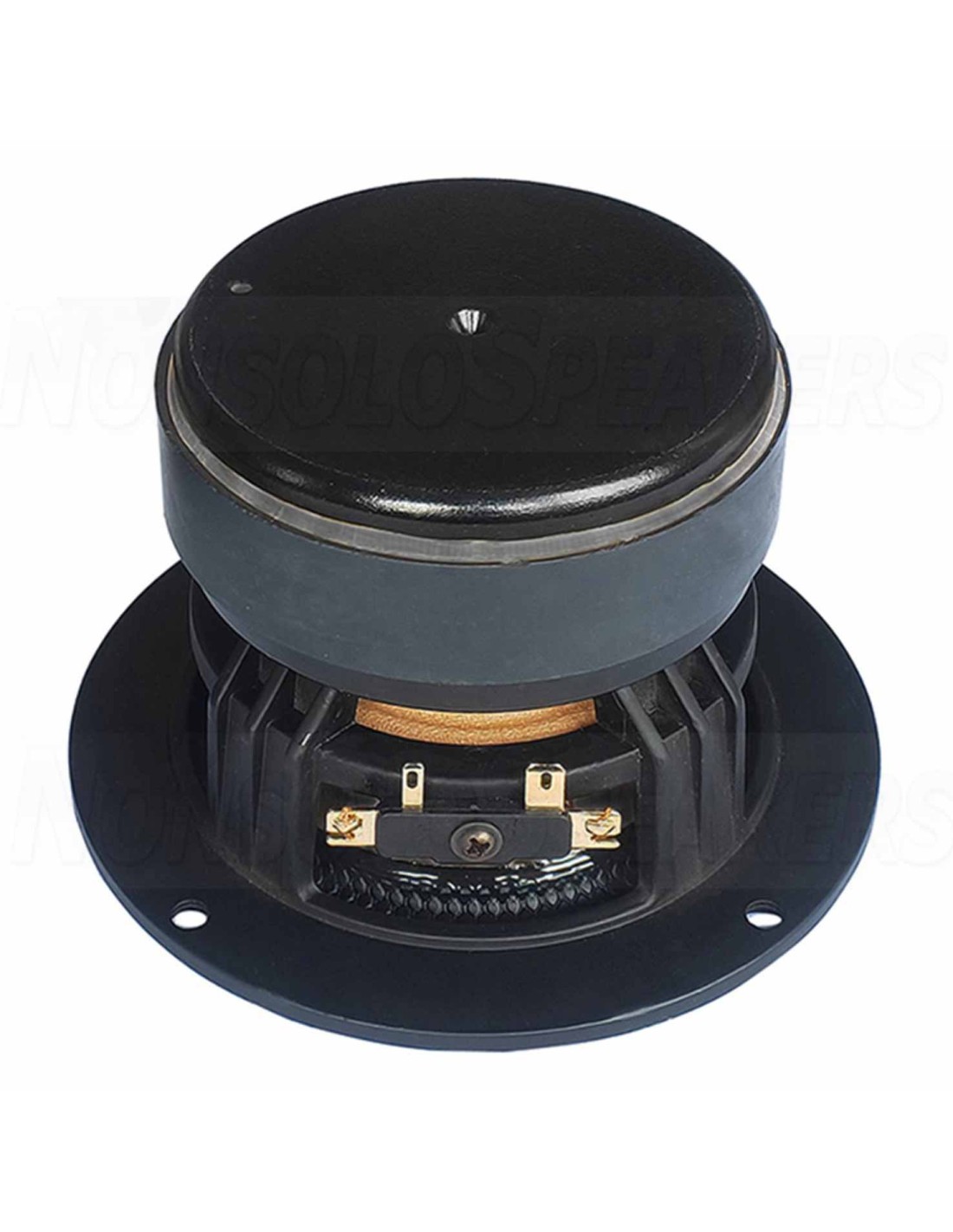

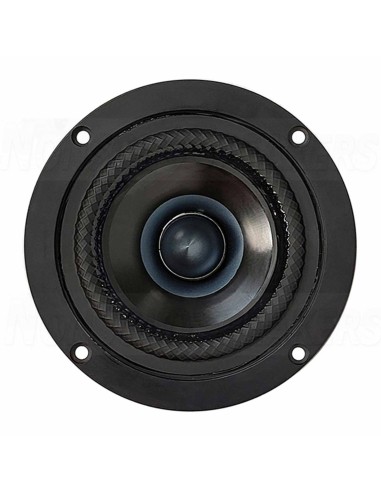

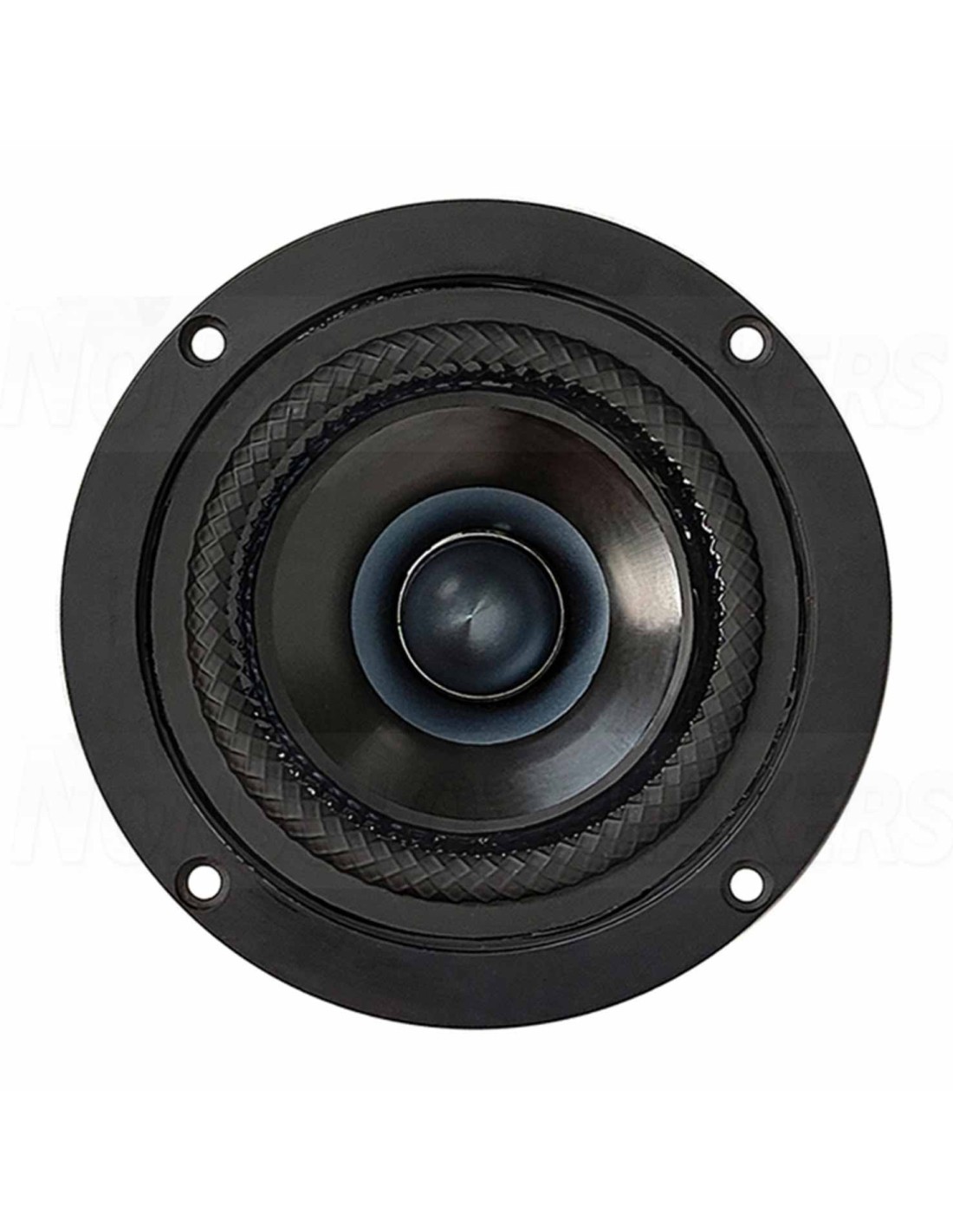

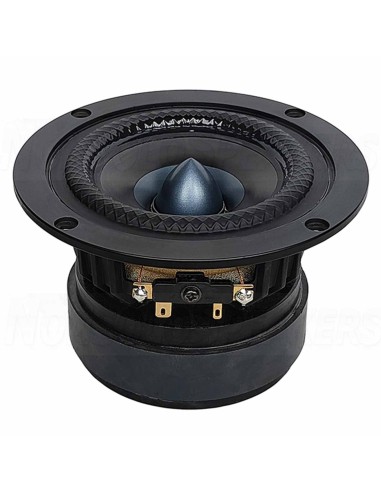

TANG BAND W4-2414 - Full Range  4" - Cone Al+PPM - Ferrite

.

The TB Speaker W4-2414 is a full-range speaker designed to deliver extremely high performance across a wide frequency range, from 65 Hz to 40 kHz. Thanks to its underhung configuration, this unit ensures superior control of voice coil movement, significantly reducing total harmonic distortion, which remains exceptionally low (≤0.01), thus ensuring extremely clean and detailed sound reproduction.

The enclosure incorporates an aluminum alloy phase plug with a "bullet" design, designed to optimize high-frequency dispersion and improve high-end response. The cone uses a special polypropylene formulation with aluminum-embedded technology, an advanced solution that further extends high-frequency performance while maintaining rigidity and lightness, essential for dynamic and precise response.

This speaker also stands out for its high construction consistency, ensuring uniformity of performance between different models and making it ideal for high-level audio applications, both in hi-fi and in professional systems where precision, transparency and reliability are fundamental requirements.

Specifications

MTL Diaphragm Aluminum + PP

MTL Santoprene Suspension

Nominal Impedance 8 Ω

DCR Impedance 6.3 Ω

Sensitivity 87 dB

Frequency Response 65 - 40 kHz

Free-Air Resonance 65 Hz

Voice Coil Diameter 25.45 mm

Traffic Height 10 mm

Rated Input Power 25 W

Maximum Input Power 50 W

Blade Force Factor 5.49 TM

Magnet Type Ferrite

Moving Mass 5.06 g

Ferrofluid Enhanced

Full Suspension NO

1007 uMN¯¹

Effective Piston Area 0.0052 m²

Levc 0.032 mH

Zo 45 Ω

X-max 2.5 mm

Vapor 3.87 l

Qts 0.40

Qms 2.77

Qes 0.47

W4-214
