TANG BAND 25-2234S - Super Tweeter 25mm TB - 40KHz

SHIPMENT IN 7-10 WORKING DAYS
€68.40 €72.00 -5%
Tax included
rating No review at the moment

TANG BAND 25-2234S - Super Tweeter 25mm TB - 40KHz

With smooth response and low distortion all the way up to 40,000 Hz, Tang Band's 25-2234S tweeter gives designers an affordable option for use in systems that meet the new high-resolution audio standards.

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND 25-2234S - Super Tweeter 25mm TB - 40KHz

With smooth response and low distortion all the way up to 40,000 Hz, Tang Band's 25-2234S tweeter gives designers an affordable option for use in systems that meet the new high-resolution audio standards.

-

Highlights

  • Delivers flat response from 1,000 Hz up to 40,000 Hz to reproduce even the finest details

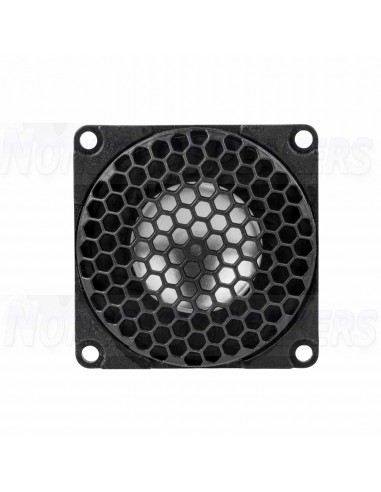

  • Integrated faceplate protects the fragile diaphragm
  • Compact 1.88" square faceplate for use in even the smallest systems
  • Aluminum/Magnesium dome has excellent damping properties

Tang Band's 25-2234S 1" Aluminum/magnesium dome tweeter has smooth response beyond 20,000 Hz, all the way up to 40,000 Hz, to meet even the newest high-resolution audio standards. The aluminum/magnesium composite diaphragm has extremely low mass with excellent damping which allows for increased high frequency and accurate transient response. The compact 1-7/8" x 1-7/8" faceplate allows this tweeter to be installed into even the smallest designs while the integrated grill protects the fragile dome from damage.

-

Product Details

  • Brand Tang Band
  • Model 25-2234S
  • Part Number 264-801
  • UPC 848864033044
  • Unit of Measure Each
  • Weight 0.18

.

Product Specifications

  • Cone / Dome Diameter 1"
  • Cutout Diameter 1.69
  • Tweeter Type Metal Dome
  • Power Handling (RMS) 8 Watts
  • Impedance 4Ω
  • Frequency Response 900 to 40,000Hz
  • Sensitivity 90dB 2.83V/1m

.

Thiele-Small Parameters

  • Resonant Frequency (Fs) 900Hz
  • DC Resistance (Re) 3.6Ω
  • Voice Coil Inductance (Le) 0.02mH

.

Mounting Information

  • Overall Outside Diameter 1.88" x 1.88"
  • Depth 1.29"


.

,




25-2234S
