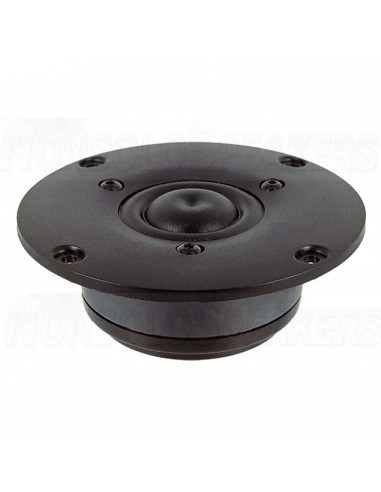

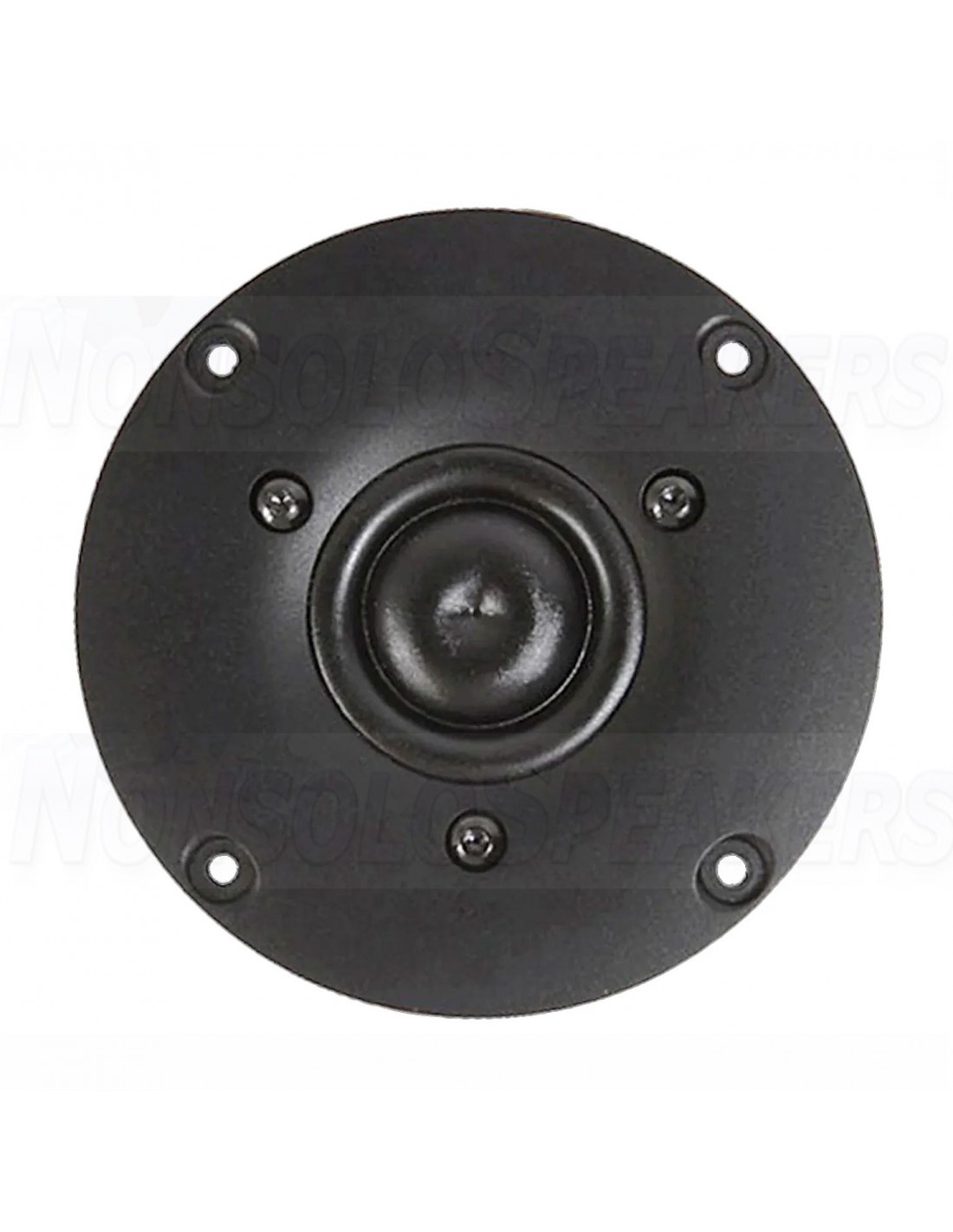

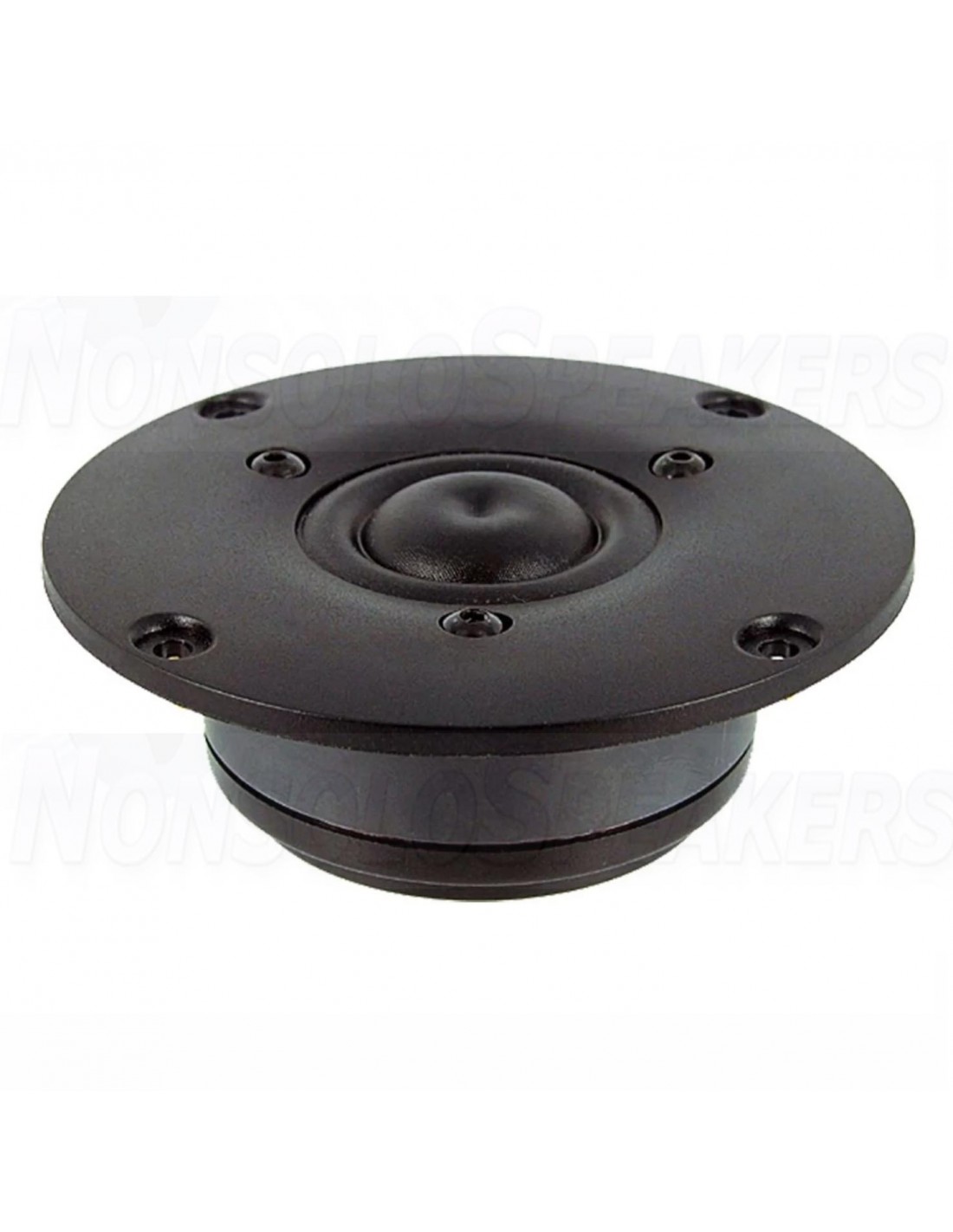

SB Acoustics SB29RDAC-C000-4 Dome Tweeter
SB Acoustics SB29RDAC-C000-4 Dome Tweeter
SB Acoustics SB29RDAC-C000-4 Dome Tweeter
SB Acoustics SB29RDAC-C000-4 Dome Tweeter

SB Acoustics SB29RDAC-C000-4 Dome Tweeter

SB Acoustics SB29RDAC-C000-4 Dome Tweeter

The SB Acoustics SB Acoustics SB29RDAC-C000-4  is a fabric Ring-Radiator tweeter features an extended high frequency response. This results in a low distortion sound representation within the range of the human hearing

Out-of-Stock
€53.30 €54.95 -3%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB29RDAC-C000-4 Dome Tweeter

.

Product description

Non-resonant diaphragm design for minimum high frequency break-up

High efficiency 93 dB (2,83 V/1m)

Dual balanced compression chamber for improved dynamics

Copper cap for reduced voice coil inductance and minimum phase shift

Saturation controlled motor system for low distortion

Non-reflective rear chamber with optimized damping for improved dynamics

Flow optimized vented pole piece for optimum coupling tot rear chamber

CCAW voice coil for low moving mass

Long life silver lead wires

Low resonance frequency

-

Product details

SB Acoustics SB29RDAC-C000-4  Fabric Ring-Radiator Tweeter

The SB Acoustics SB Acoustics SB29RDAC-C000-4  is a fabric Ring-Radiator tweeter features an extended high frequency response. This results in a low distortion sound representation within the range of the human hearing. The chambers within this tweeter unit are designed for improved dynamics. The driver also features a low Fs point of 600 Hz to allow for a low crossover point. A crossover point of at least 2600Hz is recommend with a second order 12dB/oct slope.

.

Specifications

Article numberSB29RDAC-C000-4
Tweeter TypeDome
Cone / Dome Diameter25 mm | 1"
Power Handling (RMS)100 Watts
Impedance (Z)4 Ω
Sensitivity (SPL at 1m / 2.83V)93 dB
Resonant Frequency (Fs)900 Hz
DC Resistance (Re)3 Ohms
Voice Coil Inductance (Le)0.05 mH
Mechanical Q (Qms)2.2
Electromagnetic Q (Qes)0.9
Total Q (Qts)0.64
Overall Outside Diameter103.8 mm
Cutout Diameter70 mm
Recommended cut frequency2600 Hz, 12 dB/oct
SB29RDC-C000-4
