Morel ET 338 - 28mm Tweeter - Morel Elite - 8ohm

Morel ET 338 - 28mm Tweeter - Morel Elite - 8ohm

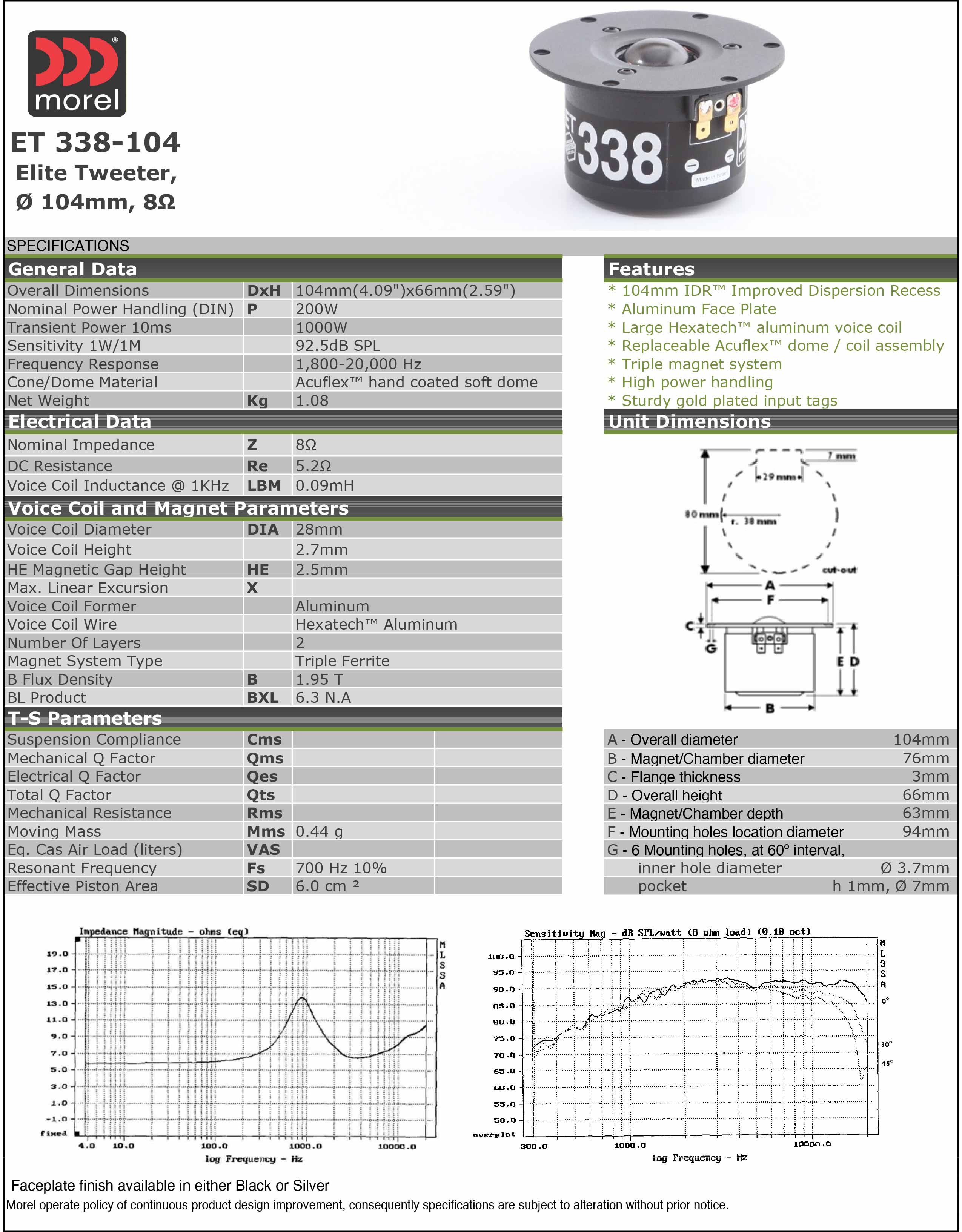

This pair of Morel ET338 Elite tweeters is acoustically matched from the manufacturer and based on the unique qualities of the famous Morel MDT 33. The new IDR™ (Improved Dispersion Recess) technology enables wider high frequency off-axis dispersion, resulting in a smoother overall performance. An aluminum faceplate with a newly refined texture offers extraordinary acoustical characteristics and exceptional quality finish. Also available in a 104 mm diameter faceplate (277-072). Replacement diaphragm (277-019).

Product Details

Brand Morel

Model ET 338

Part Number 277-070

UPC 844632065941

Unit of Measure Pairs

Weight 3

-

Product Specifications

Cone / Dome Diameter 1.125"

Cutout Diameter 2.99

Tweeter Type Soft Dome

Power Handling (RMS) 200 Watts

Impedance 8Ω

Frequency Response 1,800 to 20,000Hz

Sensitivity 92.5dB 2.83V/1m

-

Thiele-Small Parameters

Resonant Frequency (Fs) 700Hz

DC Resistance (Re) 5.2Ω

Voice Coil Inductance (Le) 0.09mH

-

Mounting Information

Overall Outside Diameter 4.33"

Depth 2.59"
