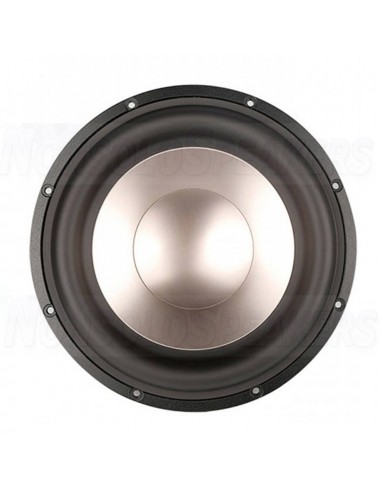

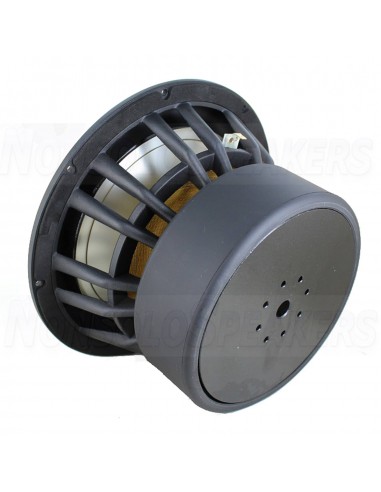

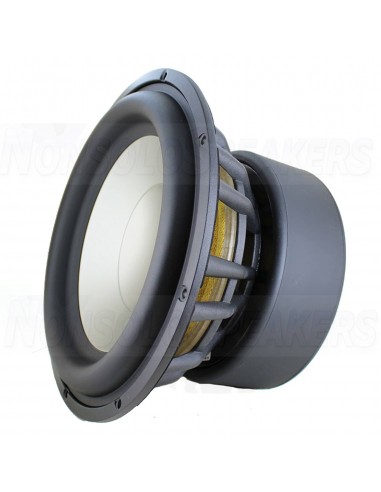

Seas L26ROY 10" Subwoofer - XM001-04 - 4 ohm

• Extremely stiff and rigid aluminium cone gives tremendous bass precision
• The cone and the long throw low loss rubber surround show no sign of the familiar cone edge resonance and distortion associated with soft cones
• Lead-out wires symetrically stitched to the spider to avoid resonances
• Total suspension designed to assure stability for extreme excursions
• 2-layer, extremely long, high temperature voice coil wound on an glassfiber voice coil former gives a high power handling capacity
• Cu-cap around the pole pieces reduce non linear and modulation distortion and increase overload margin
• Extra large magnet system provides high efficiency and low Q
• Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment
• Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum

For use with the SL26 passive radiator  CLICK HERE
1.4 cubic foot with passive - 3dB down at 38Hz and actual roll off at 25Hz

25 cm woofer with aluminum cone.

-

Features

• Power handling (nominal/music) = 250/500 W
• Frequency range = 20-1000 Hz
• Resonance frequency fs = 25 Hz
• Impedance R = 4 ohms
• Characteristic sound pressure SPL = 87 dB (2.83V; 1m)
• DC resistance Re = 3.3 ohms
• Force Factor BL = 12 N/A
• Voice coil inductance L = 0.73 mH
• Effective membrane area Sd = 342 cm2
• Moved mass including air load mms = 118 g
• Equivalent volume Vas = 56 l
• Total outdoor quality Qts = 0.42 (Qms=5.6, Qes=0.45)
• Voice coil diameter = 56 mm
• Linear deflection xlin = +/- 14 mm
• Installation diameter d = 236 mm
• Outside diameter d = 269 mm
• Installation depth (not milled) t = 142.3 mm
