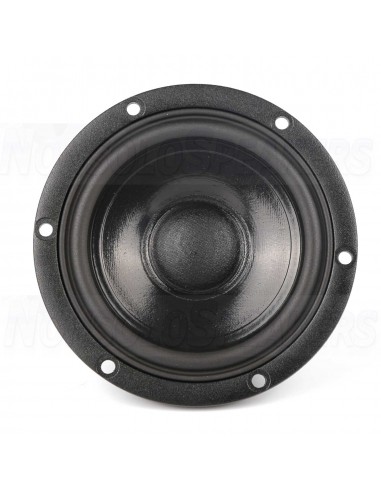

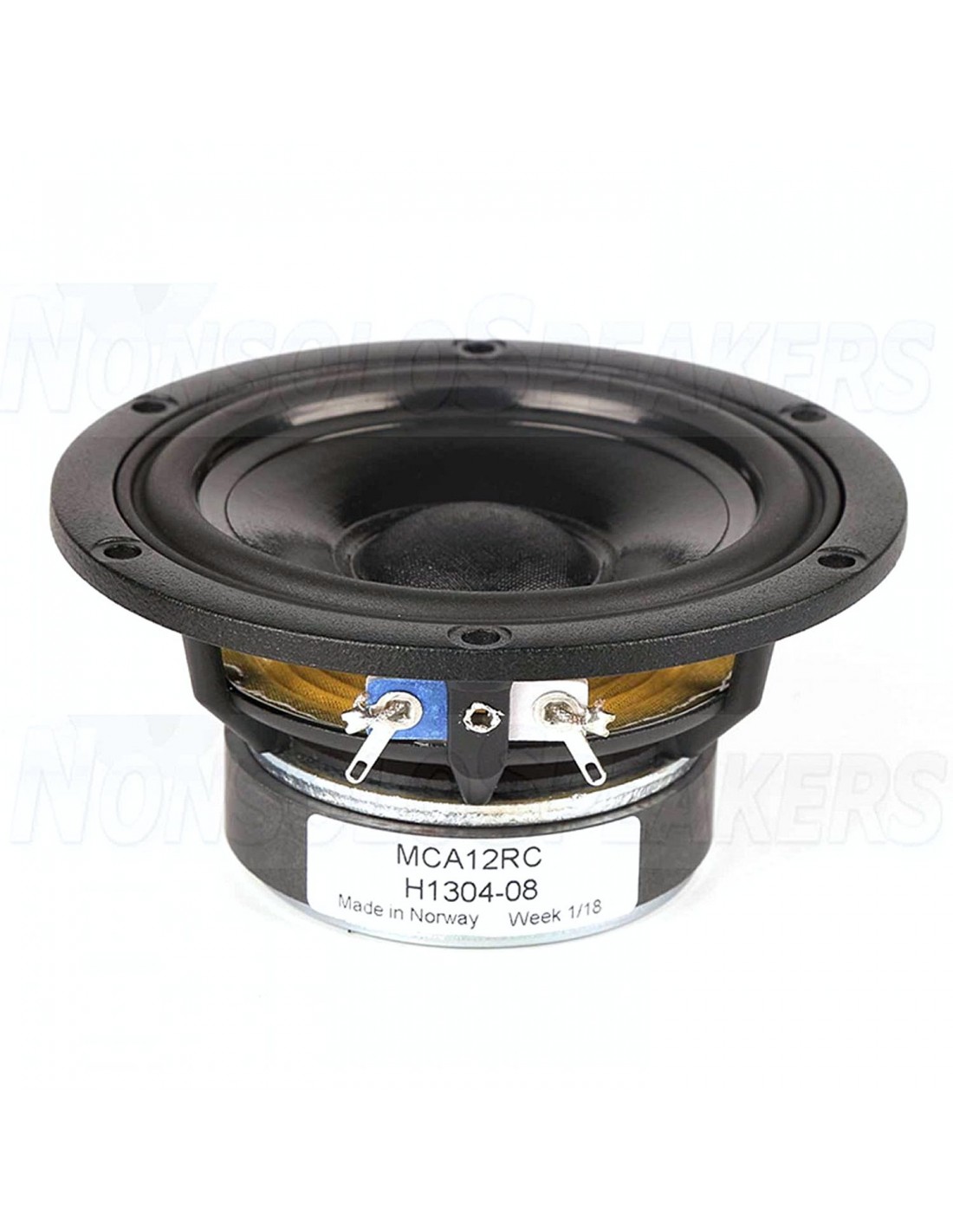

SEAS Prestige MCA12RC - H1304 4.5" Coated Paper Midrange
.
Product description
Long term power handling (RMS) is 110 Watts
Manually coated paper cone and mechanically matching natural rubber surround result in an unusually smooth midrange response
Reduced sound reflexion, air flow noise and cavity resonance
.
Product details
Seas Prestige MCA12RC - H1304 4.5" Coated Paper Midrange

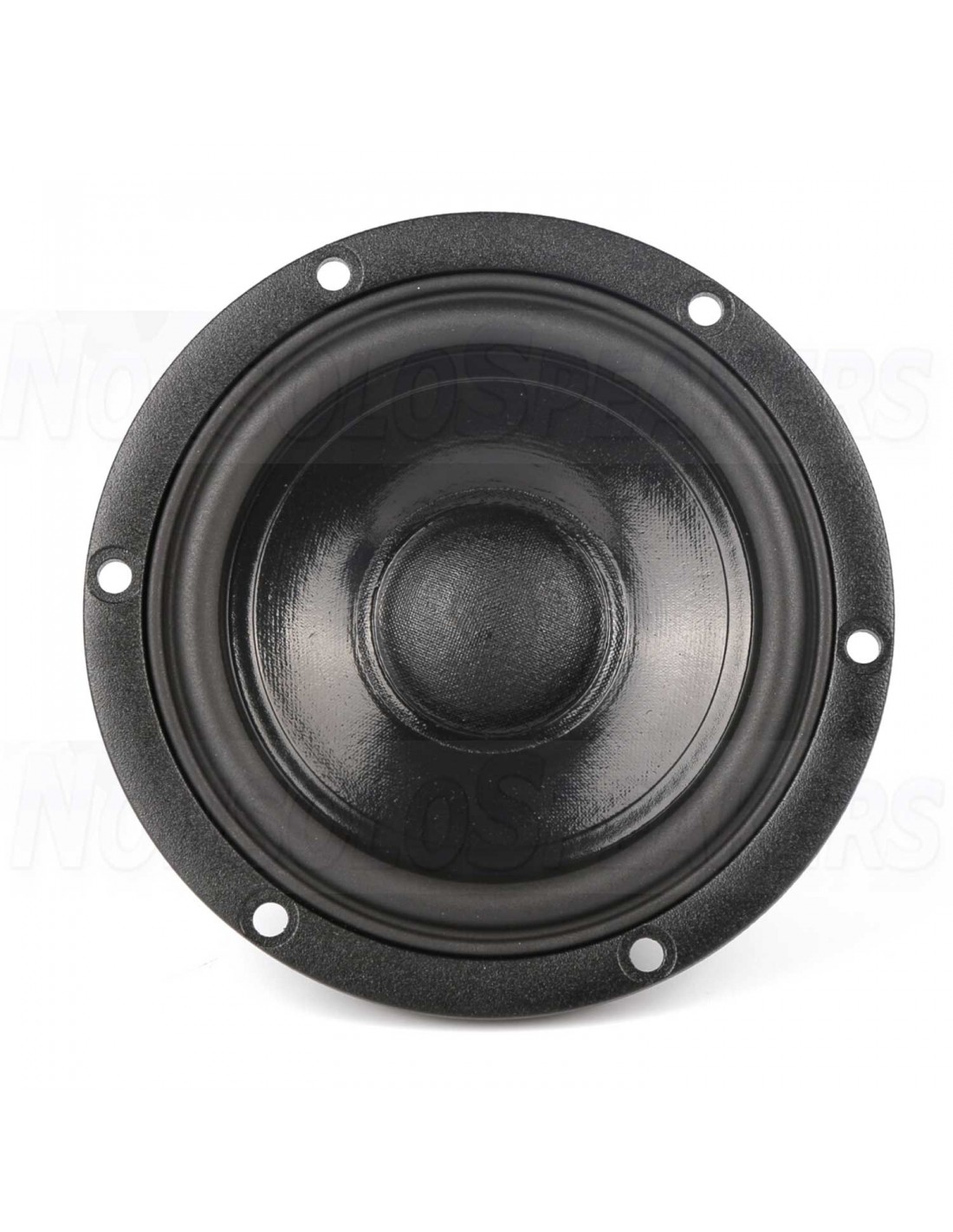

Manually coated paper cone and mechanically matching natural rubber surround result in an unusually smooth midrange response. 1” high temperature voice coil is wound on an aluminum voice coil former to ensure a very high power handling capacity.

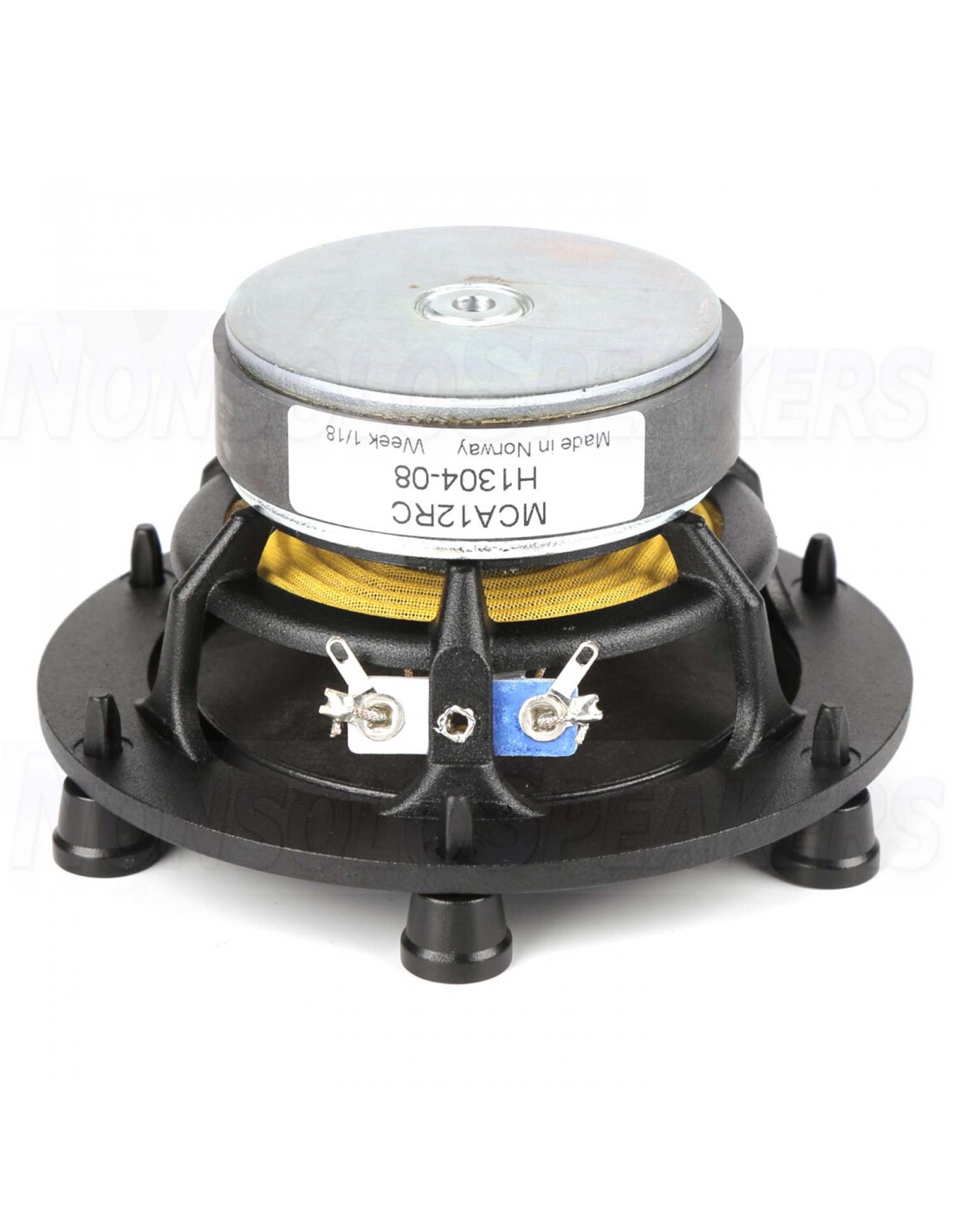

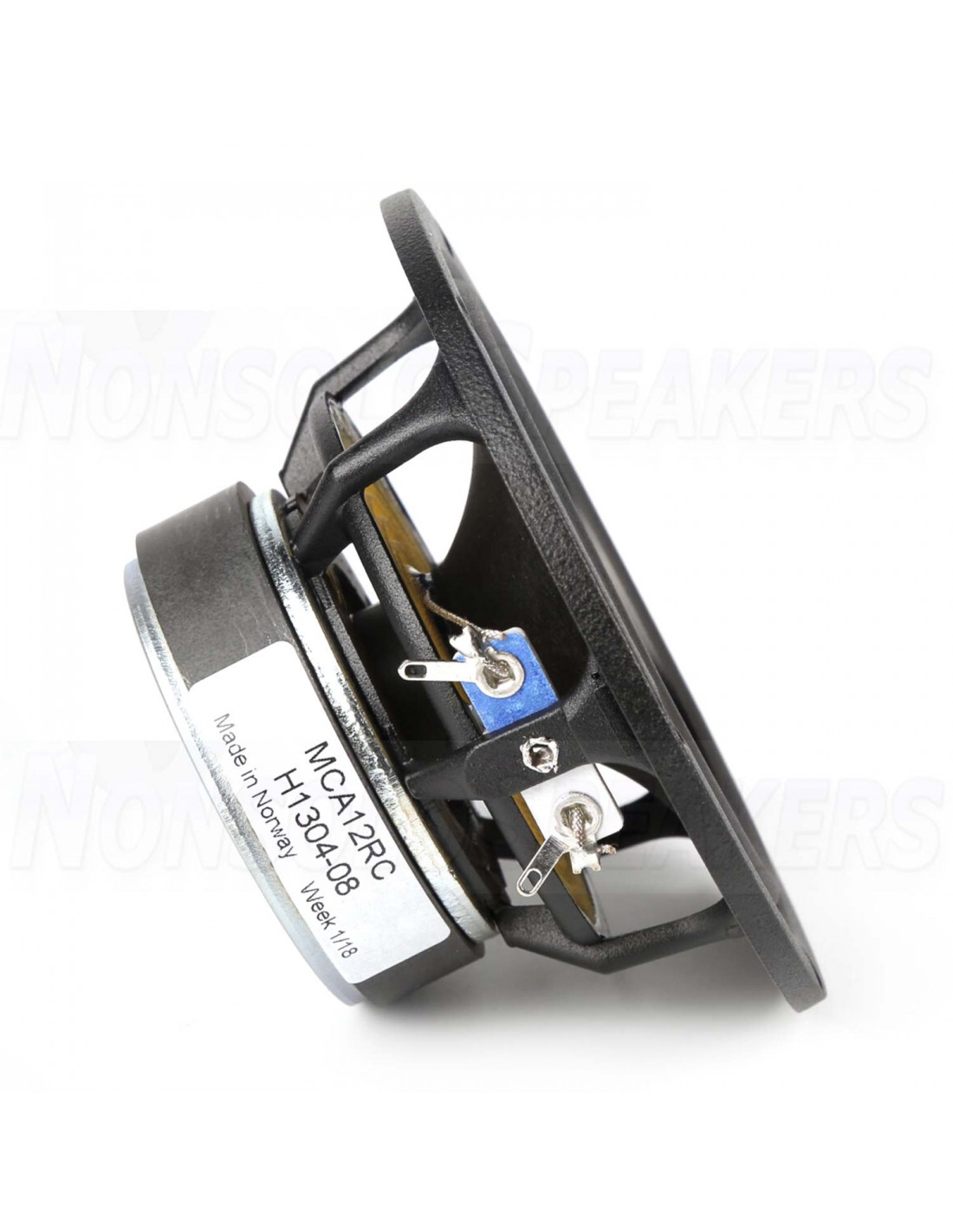

Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.
.
Specifications
Article numberMCA12RC
Woofer SeriesPrestige Series
Nominal Diameter4.5"
Power Handling (RMS)110 Watts
Power Handling (max)400 Watts
Impedance (Z)8 ohms
Sensitivity (SPL)86 dB 2.83V/1m
Frequency Response400 to 5,000 Hz
Voice Coil Diameter1.02"
Magnet Weight8.81 oz.
DC Resistance (Re)6.3 ohms
Voice Coil Inductance (Le)0.31 mH
Resonant Frequency (Fs)68 Hz
Mechanical Q (Qms)2.42
Electromagnetic Q (Qes)0.74
Total Q (Qts)0.56
Diaphragm Mass Inc. Airload (Mms)4.58g
Mechanical Compliance of Suspension (Cms)1.2 mm/N
Compliance Equivalent Volume (Vas)0.17 ft.³
Maximum Linear Excursion (Xmax)0.9 mm
Overall Outside Diameter4.74"
Overall Depth2.38"
Baffle Cutout Diameter3.77"
Bolt Circle Diameter4.36"
# Mounting Holes6
Mounting Hole Diameter0.2"
Dimensions and Mechanical Drawing

Frequency Response
