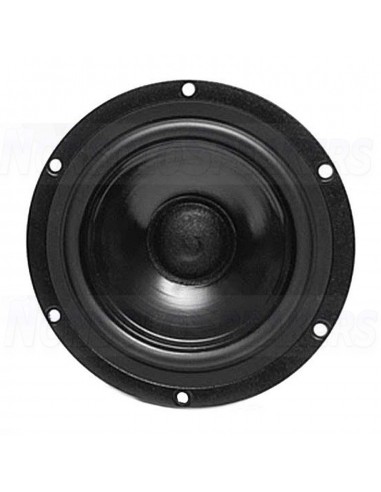

SEAS Prestige MCA15RCY - H1262-08 5.5" Coated Paper Midrange
.
Product description
Highlights
Long term power handling (RMS) is 100 Watts
Large magnet system and the light cone give high sensitivity with low distortion and good transient response
Reduced sound reflection, air flow noise and cavity resonance
.
Product details
Seas Prestige MCA15RCY - H1262-08 5.5" Coated Paper Midrange
The MCA15RCY is a 15 cm (5’’) cone driver, developed for use as a high quality midrange unit. Classically coated paper cone gives a smooth extended frequency response with a controlled roll off.
The large magnet system, together with the light cone give high sensitivity with low distortion and good transient response.
Extremely stiff and stable injection molded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
.
Specifications
Article numberMCA15RCY
Woofer SeriesPrestige Series
Woofer TypeMidwoofer
Nominal Diameter5"
Power Handling (RMS)100 Watts
Power Handling (max)300 Watts
Impedance (Z)8 ohms
Sensitivity (SPL)89.5 dB 2.83V/1m
Frequency Response100 to 4,000 Hz
Voice Coil Diameter1.02"
Magnet Weight14.8 oz.
DC Resistance (Re)5.8 ohms
Voice Coil Inductance (Le)0.73 mH
Resonant Frequency (Fs)51 Hz
Mechanical Q (Qms)1.57
Electromagnetic Q (Qes)0.30
Total Q (Qts)0.25
Diaphragm Mass Inc. Airload (Mms)7.1g
Mechanical Compliance of Suspension (Cms)1.4 mm/N
Compliance Equivalent Volume (Vas)0.42 ft.³
Maximum Linear Excursion (Xmax)1.7 mm
Overall Outside Diameter5.75"
Overall Depth2.82"
Baffle Cutout Diameter4.41"
# Mounting Holes6
Dimensions and Mechanical Drawing

Frequency Response
