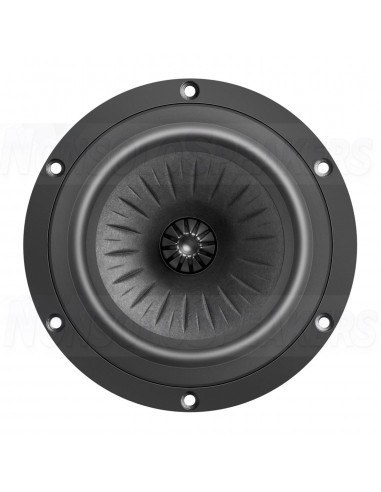

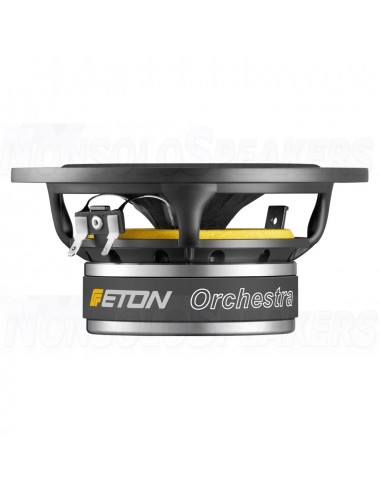

ETON 5-512/C8/25 RP Bass-mid Woofer

5“ bass-mid range driver for multiple usage, serrated paper membrane geometry, non committed sound character with harmonic, warm mid range and a solid bass range.

.

Highlights

• Uncompromising sound quality
• Uncolored sound reproduction
• Frequency range: 50 – 4000 Hz

.

Product details

ETON 5-512/C8/25 RP Bass-mid Woofer

Our Orchestra Series with traditional paper cone, newly interpreted with ETON’s expertise. The special, radial ribbing and long-fiber, highly absorbing paper mixture creates a very high degree of impulse fidelity and precision, even at extremely high levels; not to mention the resulting individualized appearance. The special paper mixture guarantees homogeneity by preventing mode formations at all possible frequency ranges.

The Orchestra mid range drivers and woofers are characterized by their natural, warm sound. This results in a balanced, well-contoured and soft mid range. In the low frequency range, our Orchestra is more than convincing with its voluminous and impulsive bass response. With its multiply ventilated and flow-supporting cast basket, the ferrite drive ensures that any occurring compression effects are reduced to a minimum.

Orchestra, a sonic reinterpretation with traditional materials.

Technical Specifications

• Terminal 2.8/4.8 mm
• Screw hole diameter 4.5/8 mm
• Basket edge thickness 6 mm
• Total depth 68 mm
• Installation diameter 120 mm
• Weight 1.29 kg
• Total diameter 148 mm
• Winding layers 2
• Carrier material Kapton
• Wire material Cu Diameter 25 mm
• DC resistance Re 5.4 Ω
• Mechanical resistance RMS 0.32 kg/s
• Effective radiating area SD 80 cm2
• Electrical quality Qes 0.35
• Force factor BLxl 5.9 Tm
• Load capacity watts 50 W
• Suspension compliance CMS 1.12 mm/N
• Total quality Qts 0.34
• Total moving mass (incl. moving Air mass) MMD 6.7 g
• Inductance voice coil Le 0.48 mH
• Resonance frequency TSP fr 59 Hz
• Resonance frequency 1W fr 57 Hz
• Average sound pressure level 1W/1m SPL 88 dB
• Equivalent volume VAS 10 dm3
• Nominal impedance Zn 8 Ω
• Xmax mechanical +/- 7.5 mm
• Mechanical quality Qms 8.19
• Xmax electrical +/- 2.5 mm
• Drive system Overhung Ferrofluid no/no
• Dimensions 90 x 36 mm
• Height air gap 6 mm
• Height 11 mm
• Material Ferrite/Ferrite
• Magnetic flux density 1.15 T
• Recommended frequency range 50 - 4000 Hz
