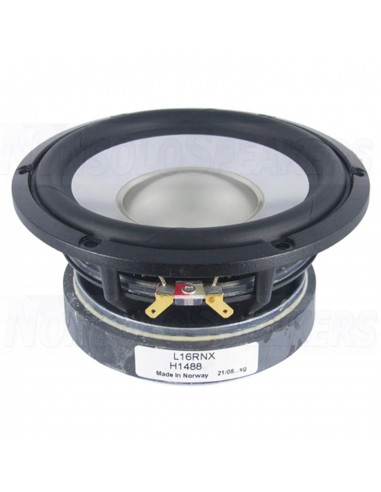

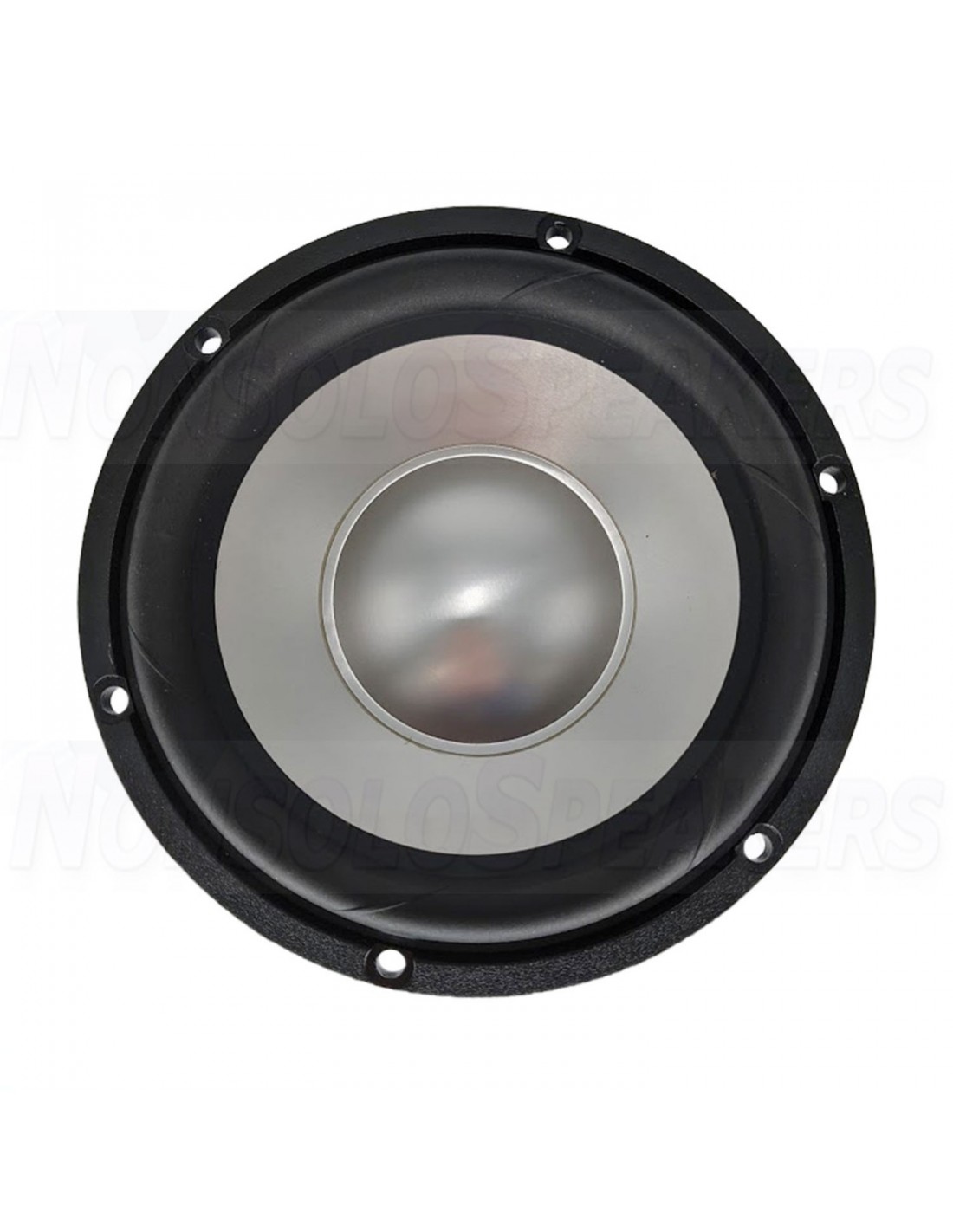

SEAS Prestige L16RNX - H1488-04 Bass-midwoofer
Product description
The L16RNX is a 5” High Fidelity woofer with an injection molded metal chassis, intended for bass reflex and transmission line designs.
.
Highlights
Seas SpiderRing® surround
Extreme coil excursion with low distortion
Extremely stiff and stable injection molded metal basket
.
Product details
Seas Prestige L16RNX - H1488-04 Bass-midwoofer
Stiff, yet light aluminum cone and low loss rubber surround show no sign of the familiar 500-1500 Hz cone edge resonance and distortion associated with soft cones. A bumped back plate in the magnet system, together with the very long and light weight copper clad aluminum voice coil, allow extreme coil excursion with low distortion. A heavy copper ring below the T-shaped pole piece reduces nonlinear and modulation distortion.
Extremely stiff and stable injection molded metal basket, keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.
This driver uses Seas SpiderRing® technology.
Specifications
Article numberL16RNX-4
Woofer SeriesPrestige
Woofer TypeBass-midwoofer
Nominal Diameter5"
Power Handling (RMS)80 watts
Power Handling (max)250 watts
Continuous Program Power-
Impedance (Z)4 ohms
Sensitivity (SPL)88 dB (2.83 V / 1 m)

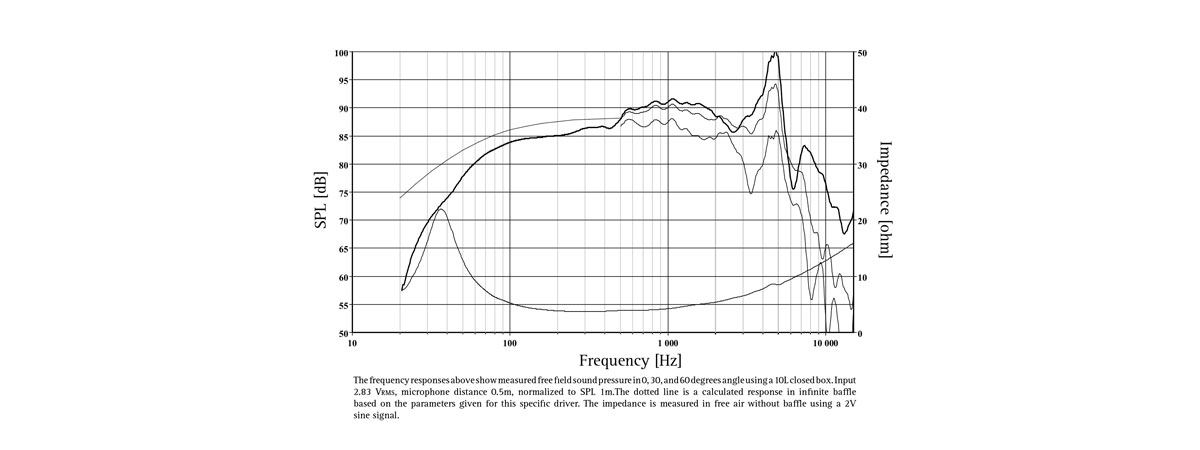

Frequency Response45 - 20,000 Hz
Voice Coil Diameter39 mm
Magnet Weight0.42 kg
DC Resistance (Re)3.1 ohms
Voice Coil Inductance (Le)0.32 mH
Resonant Frequency (Fs)37 Hz
Mechanical Q (Qms)2.31
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.33
Diaphragm Mass Inc. Airload (Mms)14.7 g
Mechanical Compliance of Suspension (Cms)1.3 mm/N
Surface Area of Cone (Sd)104 cm²
Volume of Displacement (Vd)62.4 cm³
BL Product (BL)5.4 N/A
Compliance Equivalent Volume (Vas)18 liters
Maximum Linear Excursion (Xmax)6 mm
Driver's Mechanical Losses (Rms)-
Cone / Diaphragm MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper-clad aluminum
Voice Coil Former-
Dual Voice Coil-
Basket / Frame MaterialInjection molded metal
Magnet Material-
Shielded-
Overall Outside Diameter146 mm
Overall Depth76 mm
Baffle Cutout Diameter127 mm
Bolt Circle Diameter137 mm
# Mounting Holes6
Mounting Hole Diameter5 mm
Sealed Volume-
Sealed F3-
Vented Volume-
Vented F3-
