The 9022 W130S 5" woofer from Visaton delivers amazing bass, Xmax, and midrange performance not normally found in drivers at its price point. The 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers.

SHIPMENT IN 5-7 WORKING DAYS
€38.45
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton W 130 S - 4 5" Woofer 4 Ohm

The 9022 W130S 5" woofer from Visaton delivers amazing bass, Xmax, and midrange performance not normally found in drivers at its price point. The 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers.

.

Highlights

  • Relatively flat frequency response from 80 to 4,000 Hz
  • Able to play below 40 Hz in a proper vented cabinet
  • Great power handling and Xmax
  • 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers

.

Product Details

Visaton W 130 S - 4 5" Woofer 4 Ohm

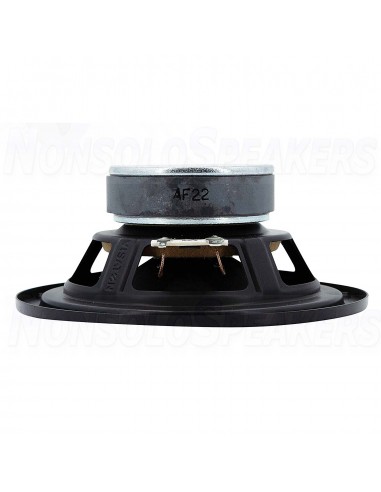

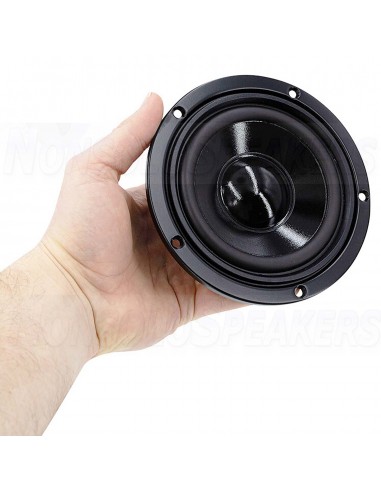

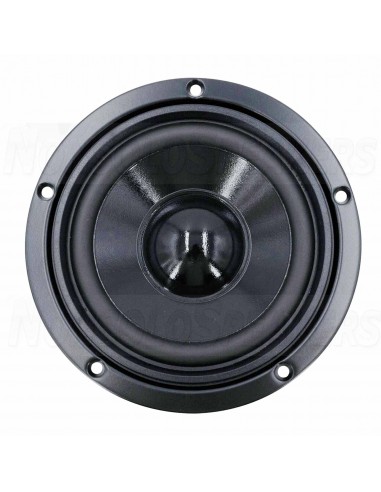

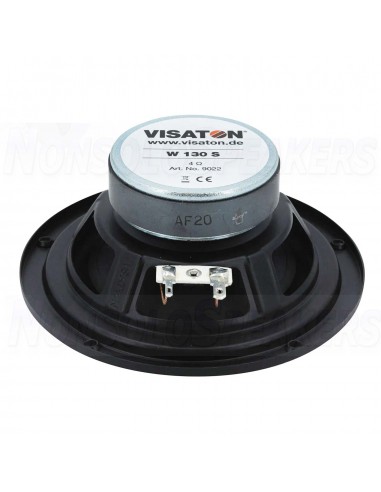

Visaton's 9022 W130S 5" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W130S to be used as a woofer in small two-way speakers or a midbass/midrange in three-way speakers, with a crossover point as high as 4,000 Hz.
This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers. The 4-ohm impedance is perfect for series pair use in MTM and center-channel speakers.
For best bass performance, install the W130S into one of the following cabinets:
• A 0.25 cubic foot sealed cabinet (F3 is 86 Hz with a Qtc of 0.75)
• A 0.71 cubic foot cabinet tuned to 44 Hz with a 1-1/4" diameter port that is 1-9/16" long
• A 1.06 cubic foot cabinet tuned to 39 Hz with a 2-3/8" diameter port that is 4-3/4" long.
.

Technical Specifications

  • Article number W 130 S - 4
  • Woofer Series HiFi Series
  • Woofer Type Bass-mid woofer
  • Nominal Diameter 5"
  • Power Handling (RMS) 50 watts
  • Power Handling (max) 80 watts
  • Impedance (Z) 4 ohms
  • Sensitivity (SPL at 1m / 2.83V) 89 dB
  • Frequency Response 50 - 12.000 Hz
  • Voice Coil Diameter 1"
  • DC Resistance (Re) 3.5 ohms
  • Voice Coil Inductance (Le) 0.6 mH
  • Resonant Frequency (Fs) 50 Hz
  • Mechanical Q (Qms) 2.54
  • Electromagnetic Q (Qes) 0.55
  • Total Q (Qts) 0.45
  • Compliance Equivalent Volume (Vas) 13.87 liters
  • Maximum Linear Excursion (Xmax) 2.25 mm
  • Cone / Diaphragm Material Treated Paper
  • Surround Material Rubber
  • Overall Outside Diameter 146.1 mm
  • Overall Depth 53.1 mm
  • Baffle Cutout Diameter 107 mm
  • # Mounting Holes 5
  • Sealed Volume 6.23 liters
  • Sealed F3 88 Hz
  • Vented Volume 16.71 liters Vented F3 44 Hz
