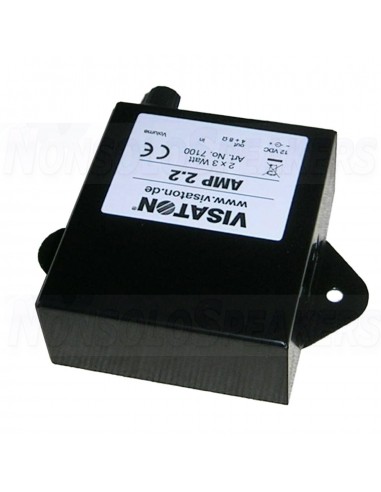

Visaton AMP 2.2 Stereo Amplifier

Looking to add some extra oomph to your computer speakers or power a pair of bookshelf speakers? The Visaton AMP 2.2 Stereo Amplifier might be the perfect choice. This compact amplifier is designed specifically for multimedia applications, making it ideal for desktops, bedrooms, or even small living spaces.

.

Highlights

• Stereo Amplifier: Designed to power two speakers in a stereo configuration.
• Compact Size: Takes up minimal space, making it ideal for smaller setups or desktop use.
• Suitable for Low-Power Speakers: Works well with speakers with impedances of 4 to 8 ohms.
• Level Controls: Allows you to adjust the volume for each channel (left and right speaker).
• DC Power Supply: Powered by a 12 VDC, 700 mA power supply (usually included).

.

Product Details

Visaton AMP 2.2 Stereo Amplifier

Despite its small size, the Visaton AMP 2.2 packs a punch. It can comfortably drive speakers with impedances of 4 to 8 ohms, which covers a wide range of bookshelf and multimedia speakers. The amplifier features easy-to-use level controls, allowing you to adjust the volume for each speaker independently to achieve a perfect balance. Powered by a simple DC power supply (usually included), the Visaton AMP 2.2 offers a user-friendly and space-saving solution for enhancing your audio experience.

While it may not be suitable for audiophile setups or high-power speakers, the Visaton AMP 2.2 is a great choice for those looking for a simple and affordable way to improve their sound quality.

.

Technical Specifications

• Power supply 12 V DC/1.0 A
• Quiescent current 46 mA
• Input impedance 10 kOhm
• Max. current consumption 1.1 A
• Power output (sine, 1% / 5% / 10% THD) 2 x 2.1 / 3.1 / 3.3 W (4 Ohm) 2 x 1.6 / 1.9 / 2.1 W (8 Ohm)
• Input voltage (full conduction) 60 mV
• Output impedance 1.1 Ohm SNR 61 dB (A) / 59 dB (ext)
• Frequency response (−3 dB) 40 Hz–40 kHz
• Terminal In-/Output jack 3.5 mm stereo
• Terminal DC 5.4 mm outer diam. (−) 2.1 mm inner diam. (+)
• Net weight 0,178 kg
• Temperature range −10 ... 50 °C

.
