SHIPMENT IN 5-7 WORKING DAYS
€59.95
Tax included
rating No review at the moment

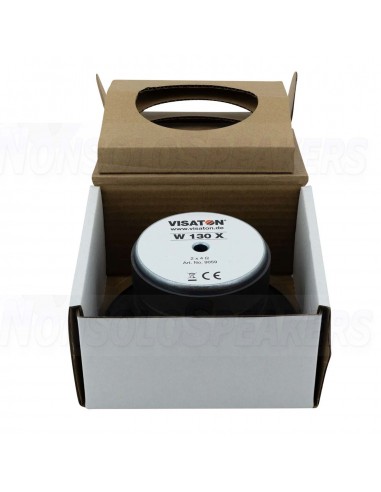

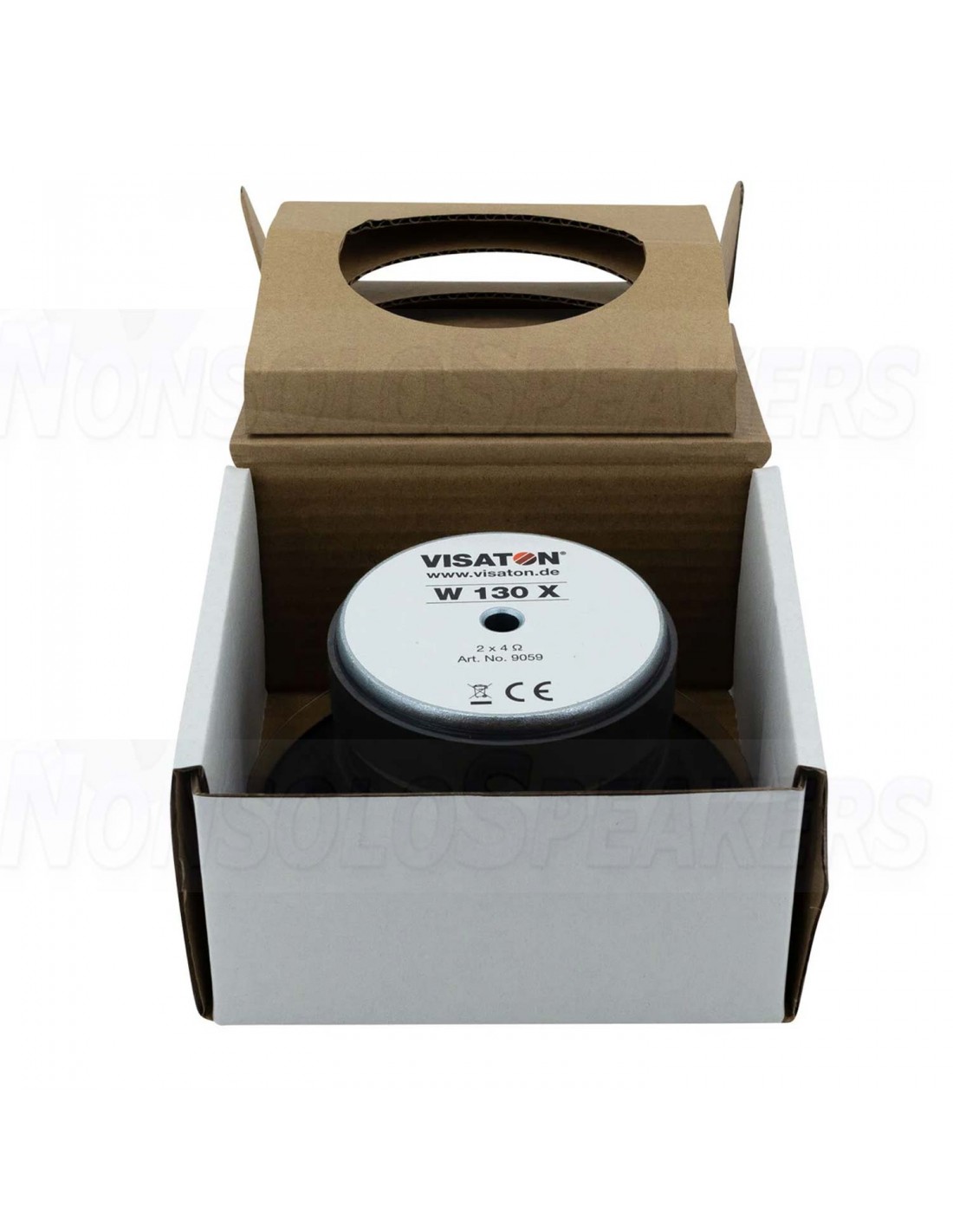

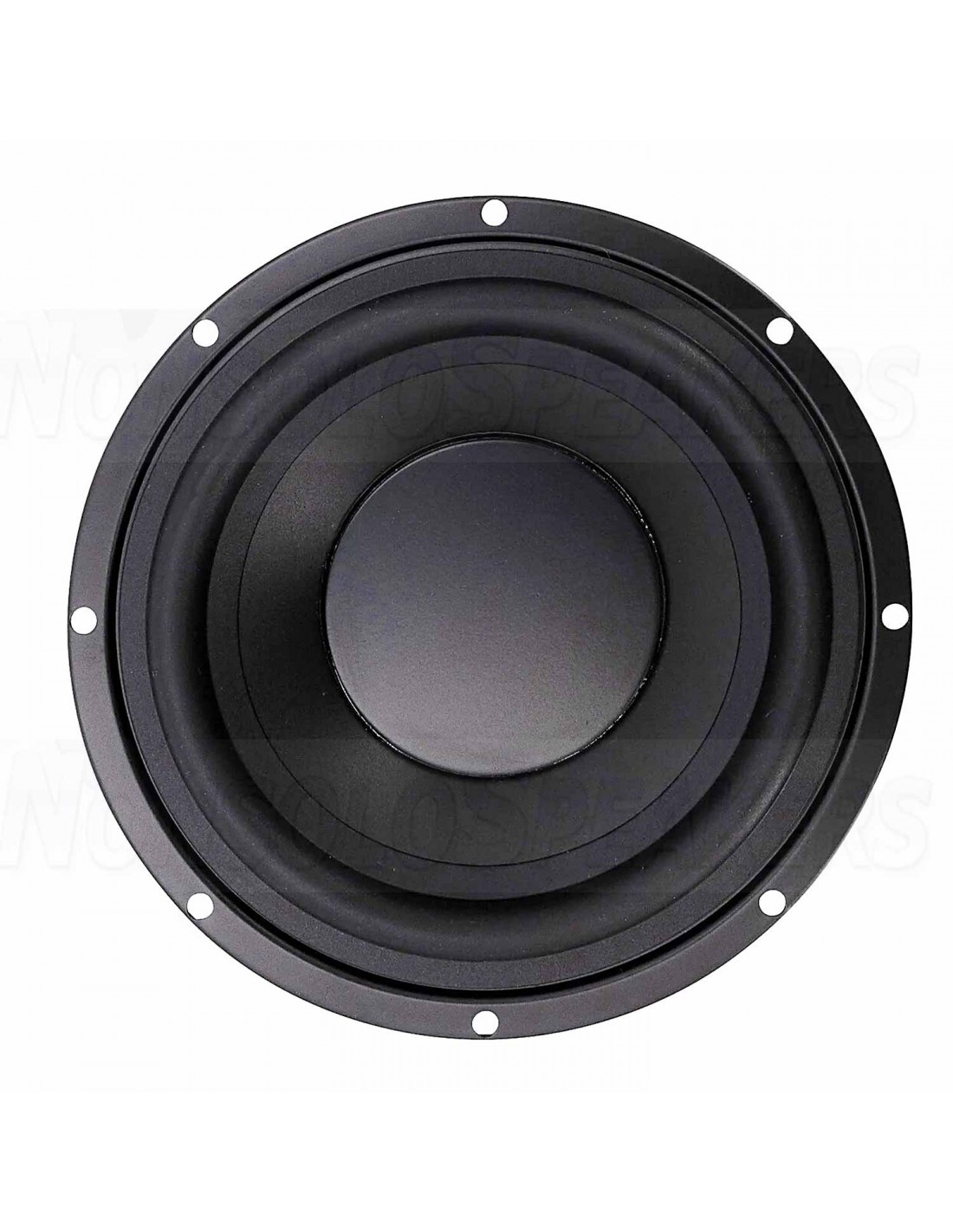

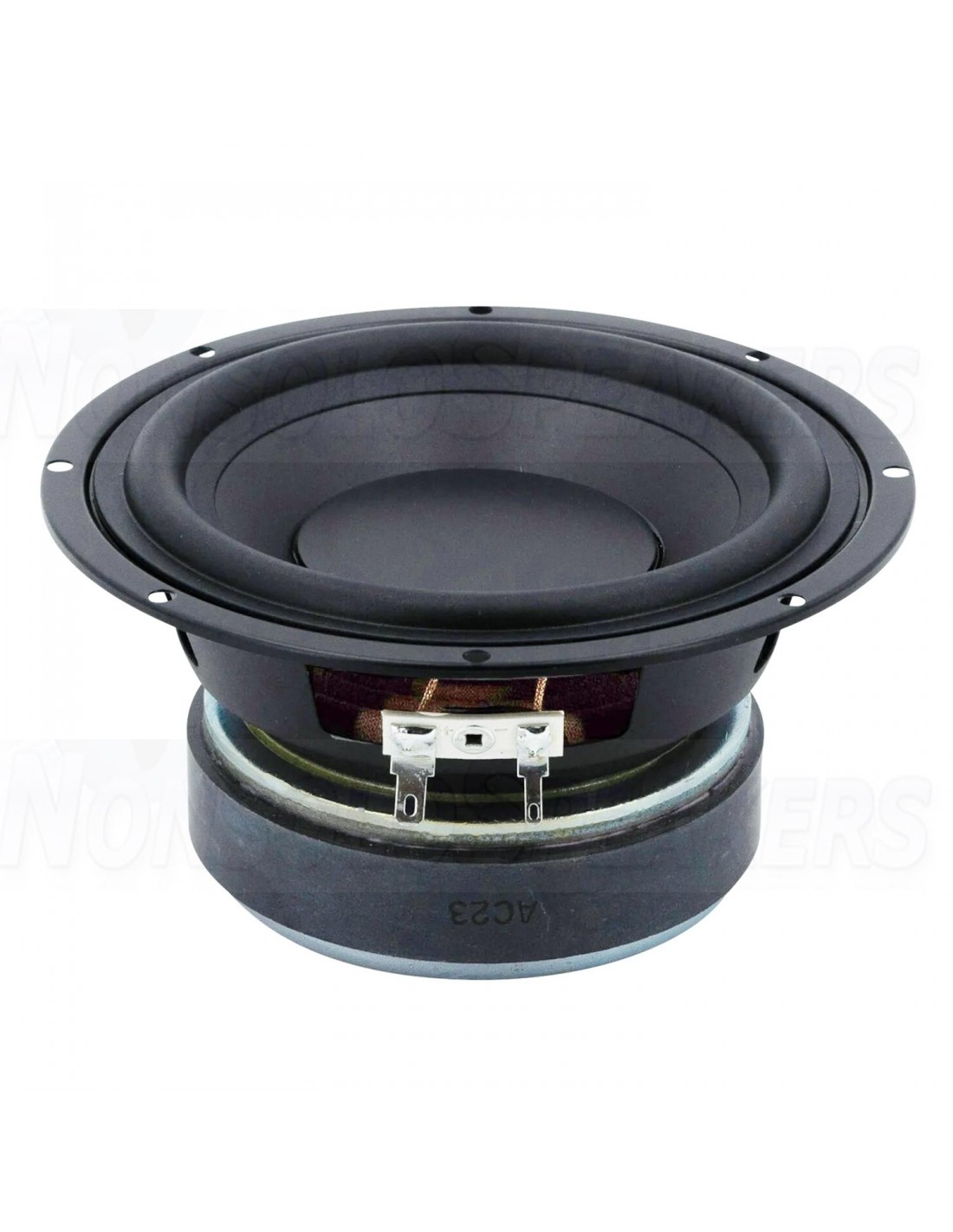

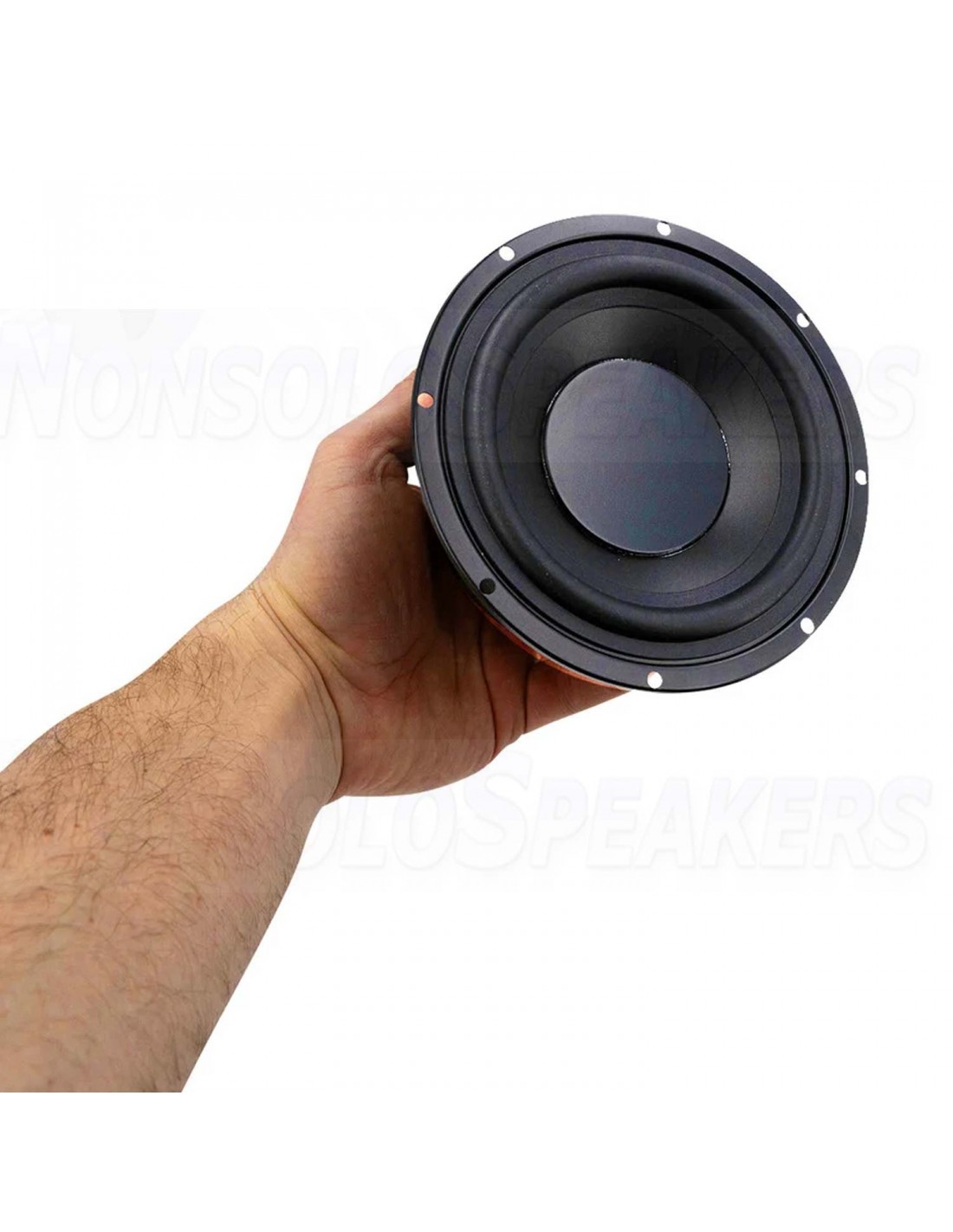

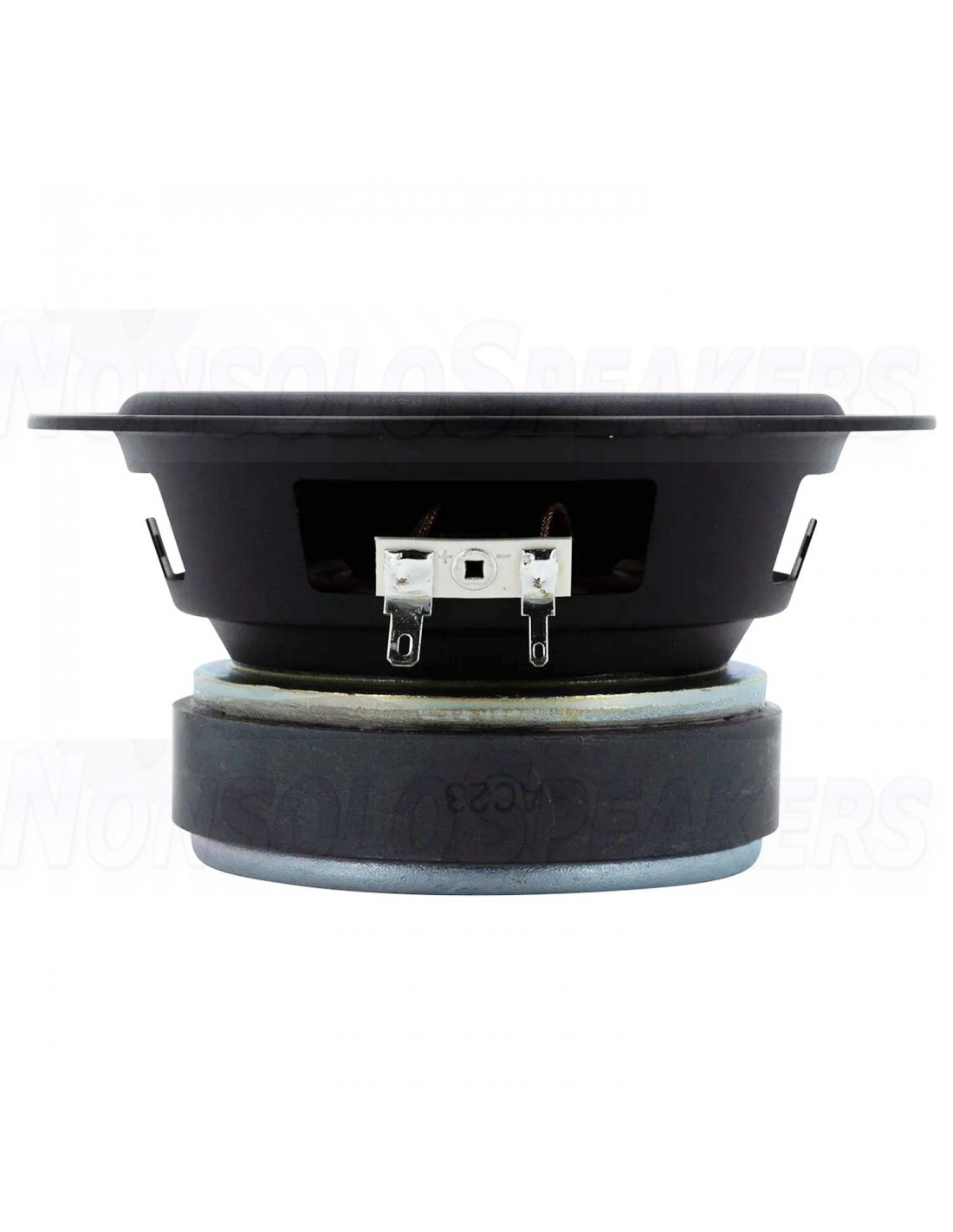

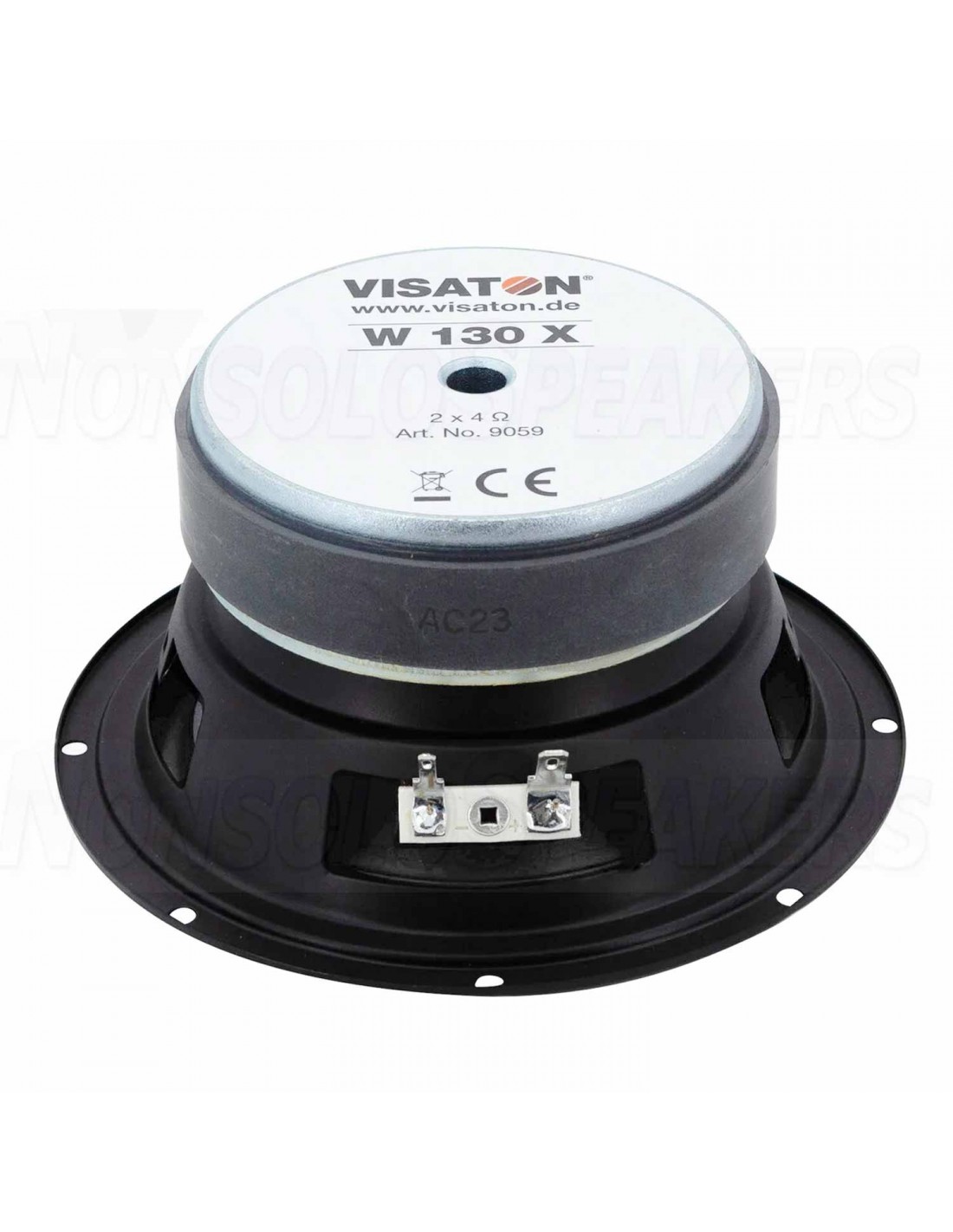

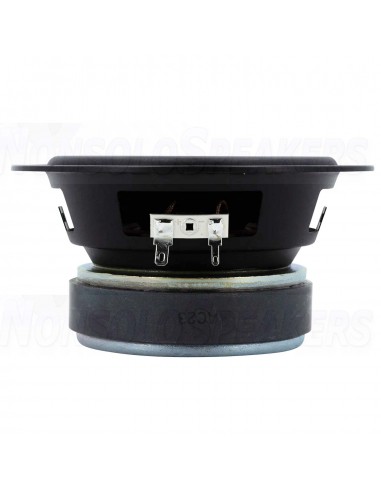

Visaton W 130 X 5" DVC Woofer 4 Ohm

13 cm (5") woofer with robust polypropylene membrane for very compact subwoofer.

Estimated Shipping Costs
Shipping Costs
€16.80
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton W 130 X 5" DVC Woofer 4 Ohm

13 cm (5") woofer with robust polypropylene membrane for very compact subwoofer.

.

Highlights

  • Large Volume Displacement
  • Low Resonance Frequency
  • Double Voice Coil

.

Product Details

Visaton W 130 X 5" DVC Woofer 4 Ohm
Designed for multi-purpose applications due to 2 x 4 ohms double voice coil, with excellent properties as 8 ohms drivers in series configuration.
The enormous membrane displacement for its size as well as the very low resonance frequency allows a considerable sound pressure level, this you would not expect from such a small speaker.

.

Technical Specifications

  • Article number W 130 X
  • Woofer Series W Series
  • Woofer Type Midwoofer
  • Nominal Diameter 5"
  • Power Handling (RMS) 60 Watts
  • Power Handling (max) 90 Watts
  • Impedance (Z) 4+4 ohms
  • Sensitivity (SPL at 1m / 2.83V) 78 dB
  • Frequency Response 40 - 6,000 Hz
  • Voice Coil Diameter 40 mm
  • DC Resistance (Re) 2.0 - 7.9 ohms
  • Voice Coil Inductance (Le) 0.69 - 2.75 mH
  • Resonant Frequency (Fs) 40 Hz
  • Mechanical Q (Qms) 4.27 - 4.59
  • Electromagnetic Q (Qes) 0.41 - 0.86
  • Total Q (Qts) 0.71
  • Diaphragm Mass Inc. Airload (Mms) 37g
  • Surface Area of Cone (Sd) 94.2 cm2
  • BL Product (BL) 6.5 - 13.2 Tm
  • Compliance Equivalent Volume (Vas) 5.1 - 5.64
  • Liters Maximum Linear Excursion (Xmax) 3 mm
  • Cone / Diaphragm Material Polypropylene
  • Dual Voice Coil
  • Overall Outside Diameter 148.2 mm
  • Overall Depth 72 mm
  • Baffle Cutout Diameter 123 mm
  • Bolt Circle Diameter 141 mm
  • # Mounting Holes 4
  • Mounting Hole Diameter 4.3 mm
