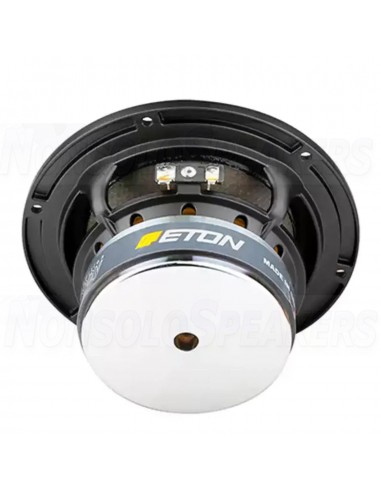

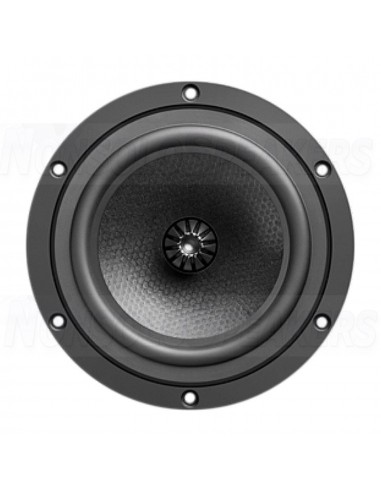

ETON 5-312/C8/25 HEX Bass-mid Woofer
ETON 5-312/C8/25 HEX Bass-mid Woofer
ETON 5-312/C8/25 HEX Bass-mid Woofer
ETON 5-312/C8/25 HEX Bass-mid Woofer
ETON 5-312/C8/25 HEX Bass-mid Woofer
ETON 5-312/C8/25 HEX Bass-mid Woofer

ETON 5-312/C8/25 HEX Bass-mid Woofer

ETON 5-312/C8/25 HEX Bass-mid Woofer

The ETON 5-312/C8/25 HEX Bass-Midrange Driver is a high-performance transducer meticulously designed to elevate your listening experience to new heights.

SHIPMENT IN 7/10 WORKING DAYS
€149.46 €159.00 -6%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



ETON 5-312/C8/25 HEX Bass-mid Woofer

The ETON 5-312/C8/25 HEX Bass-Midrange Driver is a high-performance transducer meticulously designed to elevate your listening experience to new heights. Whether you're seeking to enhance your home audio system, revamp your car's soundscape, or elevate the acoustics of your professional sound reinforcement setup, this exceptional driver is the perfect choice.

.

Highlights

  • 3-layer Hexcone sandwich cone for accurate and detailed sound reproduction
  • Phase plug construction for improved phase coherence and driver stability
  • High-quality voice coil for efficient power handling and long-term reliability
  • Wide frequency range for use in a variety of applications

.

Product details

ETON 5-312/C8/25 HEX Bass-mid Woofer
Boasting a 3-layer Hexcone sandwich cone, the ETON 5-312/C8/25 HEX delivers stunning clarity and detail throughout the critical midrange frequencies. This unique cone geometry ensures exceptional linearity and minimal distortion, resulting in a natural and uncolored sound reproduction that is sure to captivate your ears. Coupled with a phase plug construction that promotes optimal phase coherence and driver stability, the ETON 5-312/C8/25 HEX delivers a smooth and seamless frequency response, eliminating any unwanted resonance or artifacts that can degrade audio quality.
Its high-quality voice coil ensures efficient power handling and exceptional reliability, allowing you to push your system to the limits without compromising sound quality. With its wide frequency range of 45 to 4000 Hz, the ETON 5-312/C8/25 HEX seamlessly blends into a variety of speaker configurations, from bookshelf speakers to tower speakers and stage monitors.
Its compact 5-inch size makes it an ideal choice for tight spaces, while its exceptional performance ensures a rich and immersive listening experience in any environment.
.

Technical Specifications

  • Terminal 2.8/4.8 mm
  • Screw hole diameter 4.5/8 mm
  • Basket edge thickness 6 mm
  • Total depth 68 mm
  • Installation diameter 120 mm
  • Weight 1.28 kg
  • Total diameter 148 mm
  • Winding layers 2
  • Carrier material Kapton
  • Wire material Cu Diameter 25 mm
  • DC resistance Re 5.4 Ω
  • Mechanical resistance RMS 0.45 kg/s
  • Effective radiating area SD 80 cm2
  • Electrical quality Qes 0.47
  • Force factor BLxl 5.7 Tm
  • Load capacity watts 50 W
  • Suspension compliance CMS 0.94 mm/N
  • Total quality Qts 0.44
  • Total moving mass (incl. moving Air mass) MMD 9.4 g
  • Inductance voice coil Le 0.45 mH
  • Resonance frequency TSP fr 54 Hz
  • Resonance frequency 1W fr 53 Hz
  • Average sound pressure level 1W/1m
  • SPL 88 dB
  • Equivalent volume VAS 8.4 dm3
  • Nominal impedance Zn 8 Ω
  • Xmax mechanical +/- 7.5 mm
  • Mechanical quality Qms 7.56
  • Xmax electrical +/- 2.5 mm
  • Drive system Overhung Ferrofluid no/no
  • Dimensions 90 x 36 mm
  • Height air gap 6 mm
  • Height 11 mm
  • Material Ferrite/Ferrite
  • Magnetic flux density 1.15 T
  • Recommended frequency range 50 - 4000 Hz
ETON 5-312/C8/25 HEX
