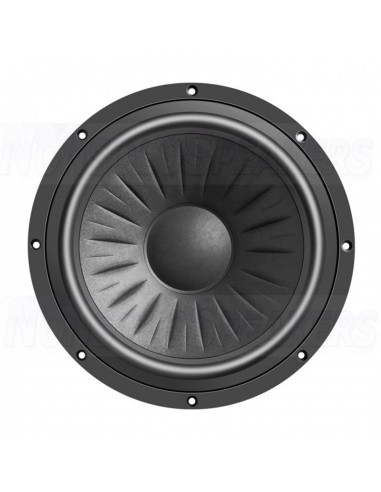

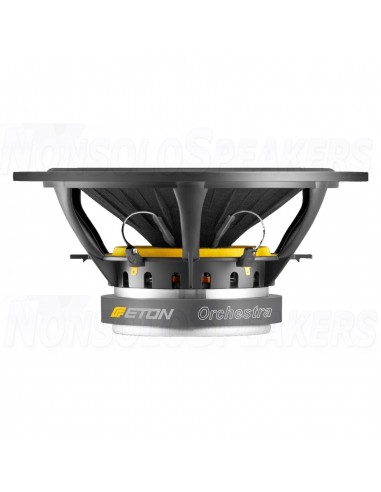

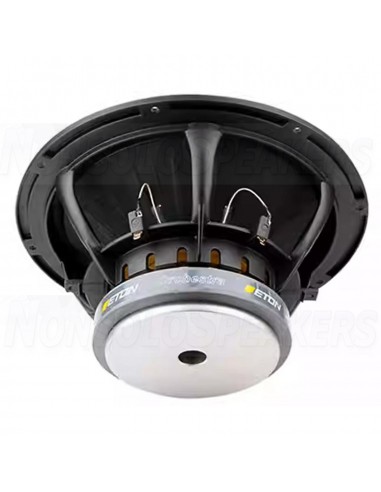

ETON 12-612/C8/62 RP Bass-mid Woofer
ETON 12-612/C8/62 RP Bass-mid Woofer
ETON 12-612/C8/62 RP Bass-mid Woofer
ETON 12-612/C8/62 RP Bass-mid Woofer
ETON 12-612/C8/62 RP Bass-mid Woofer
ETON 12-612/C8/62 RP Bass-mid Woofer
ETON 12-612/C8/62 RP Bass-mid Woofer
ETON 12-612/C8/62 RP Bass-mid Woofer

ETON 12-612/C8/62 RP Bass-mid Woofer

ETON 12-612/C8/62 RP Bass-mid Woofer

Classic 12'' bass-/midrange speaker for 3-way systems, serrated paper membrane geometry, very precise bass reprodruction also in deep frequencies, agile sound.

SHIPMENT IN 7/10 WORKING DAYS
€234.95 €249.95 -6%
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€19.08
Shipping Time
.
Want to check another country or courier?

You might also like



ETON 12-612/C8/62 RP Bass-mid Woofer

Classic 12'' bass-/midrange speaker for 3-way systems, serrated paper membrane geometry, very precise bass reprodruction also in deep frequencies, agile sound.

.

Highlights

  • Uncompromising sound quality
  • Uncolored sound reproduction
  • Frequency range: 25 – 500 Hz

.

Product details

ETON 12-612/C8/62 RP Bass-mid Woofer

Our Orchestra Series with traditional paper cone, newly interpreted with ETON’s expertise. The special, radial ribbing and long-fiber, highly absorbing paper mixture creates a very high degree of impulse fidelity and precision, even at extremely high levels; not to mention the resulting individualized appearance.

The special paper mixture guarantees homogeneity by preventing mode formations at all possible frequency ranges. The Orchestra mid range drivers and woofers are characterized by their natural, warm sound. This results in a balanced, well-contoured and soft mid range. In the low frequency range, our Orchestra is more than convincing with its voluminous and impulsive bass response.

With its multiply ventilated and flow-supporting cast basket, the ferrite drive ensures that any occurring compression effects are reduced to a minimum.

.

Technical Specifications

  • Article number 12-612/C8/62 RP
  • Woofer Series Orchestra
  • Woofer Type Bass-mid Woofer
  • Nominal Diameter 12"
  • Power Handling (RMS) 150 Watts
  • Impedance (Z) 8 Ω
  • Sensitivity (SPL at 1m / 2.83V) 93 dB
  • Frequency Response 25 – 500 Hz
  • DC Resistance (Re) 6.2 Ω
  • Voice Coil Inductance (Le) 1.60 mH
  • Resonant Frequency (Fs) 28 Hz
  • Mechanical Q (Qms) 5.16
  • Electromagnetic Q (Qes) 0.34
  • Total Q (Qts) 0.32
  • Moving Mass Of Diaphragm (Mmd) 78 g
  • Mechanical Compliance of Suspension (Cms) 0.36 mm/N
  • Surface Area of Cone (Sd) 515 cm2
  • BL Product (BL) 15.7 Tm
  • Compliance Equivalent Volume (Vas) 134 dm3
  • Maximum Linear Excursion (Xmax) 8.5 mm
  • Driver's Mechanical Losses (Rms) 3.10 kg/s
  • Magnet Material Ferrit
  • e Overall Outside Diameter 330.5 mm
  • Overall Depth 150 mm
  • Baffle Cutout Diameter 282 mmMounting Hole Diameter 6.5/11 mm
ETON 12-612/C8/62 RP
