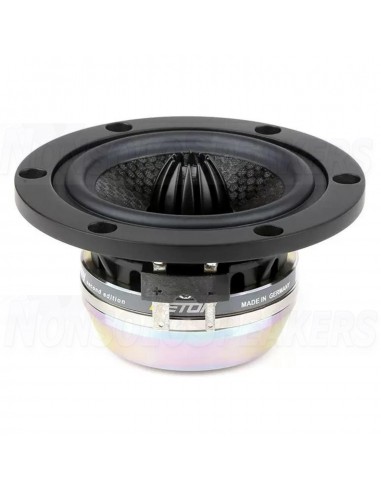

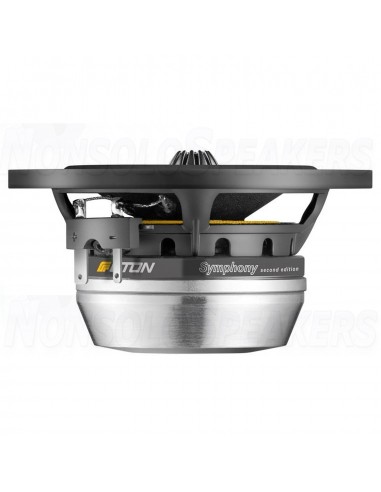

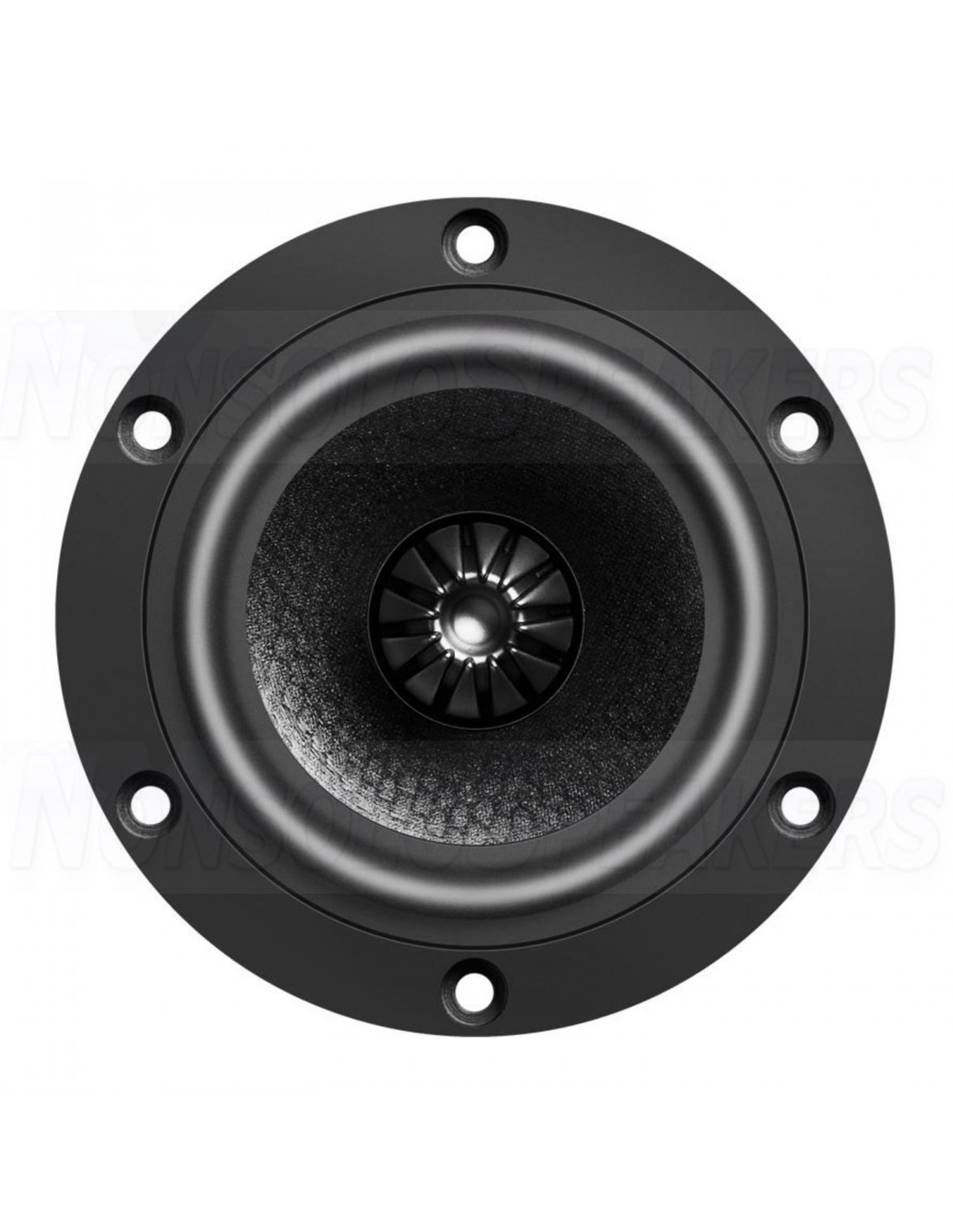

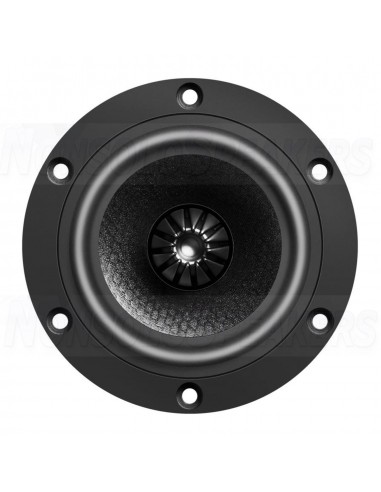

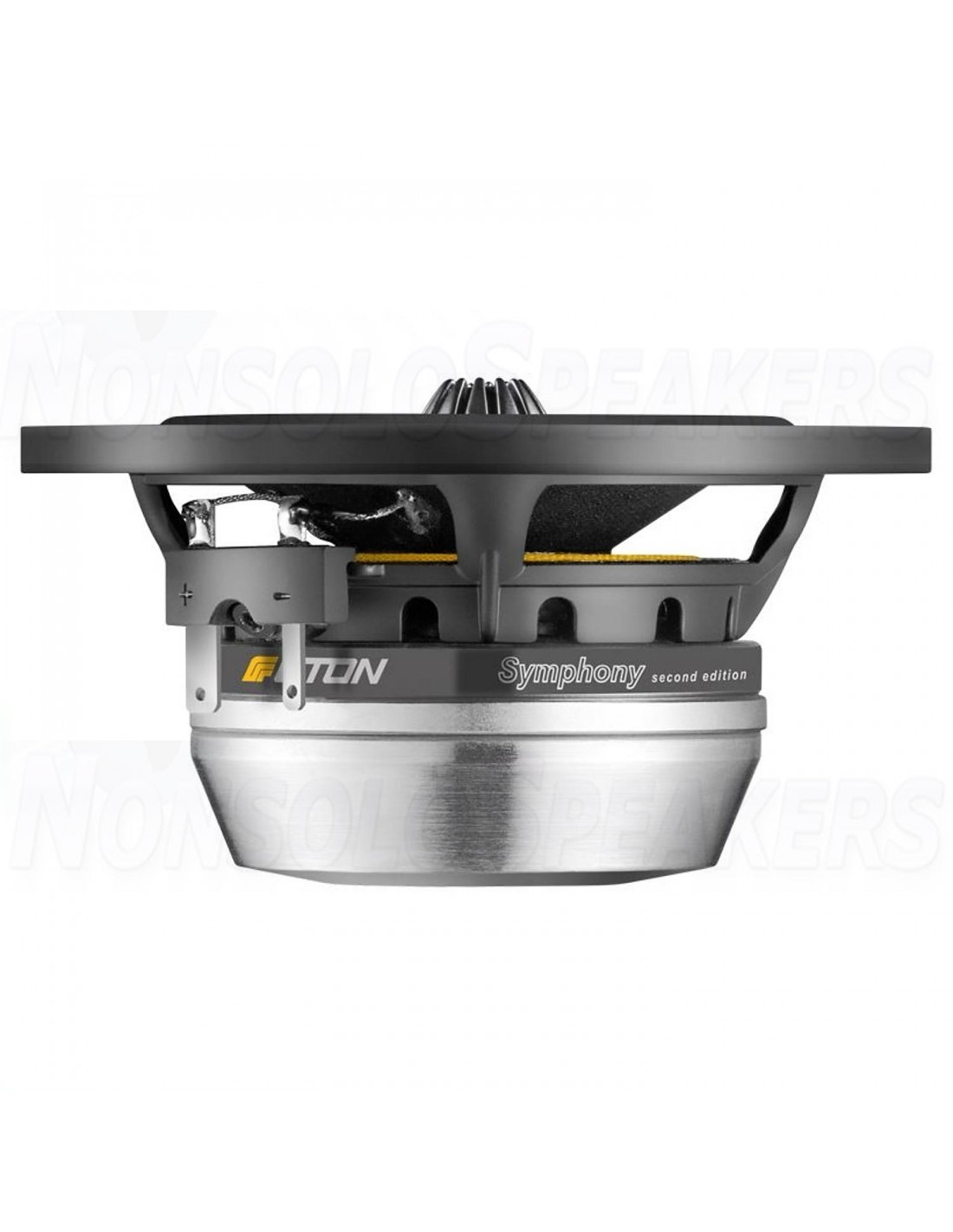

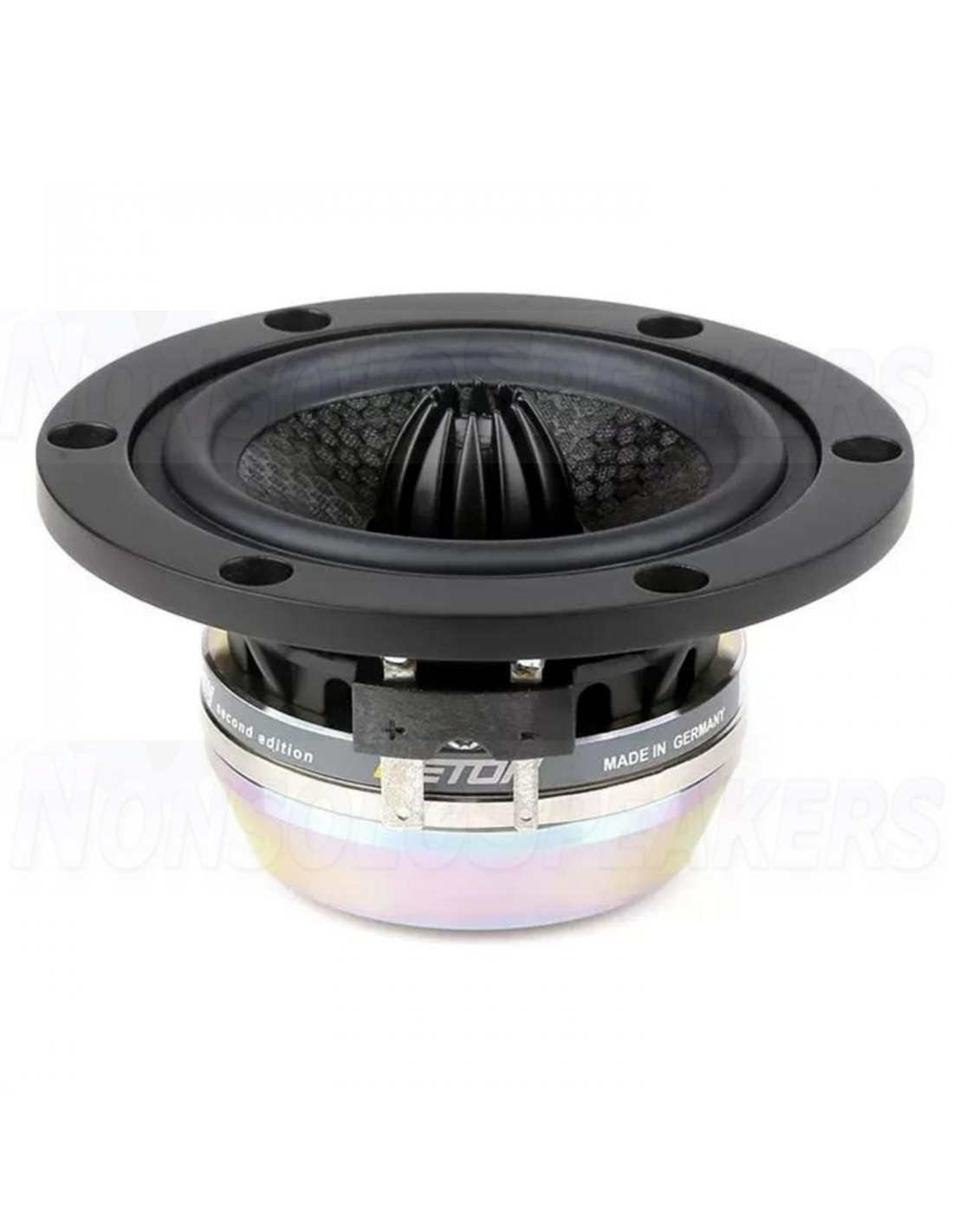

ETON 3-312/C8/25 HEX Bass-mid Woofer
ETON 3-312/C8/25 HEX Bass-mid Woofer
ETON 3-312/C8/25 HEX Bass-mid Woofer
ETON 3-312/C8/25 HEX Bass-mid Woofer
ETON 3-312/C8/25 HEX Bass-mid Woofer
ETON 3-312/C8/25 HEX Bass-mid Woofer

ETON 3-312/C8/25 HEX Bass-mid Woofer

ETON 3-312/C8/25 HEX Bass-mid Woofer

3“ Bass-Mid range driver with mid range preference, Phase plug construction, 3-layer Hexacone Sandwich cone, spacial and open reproduction, uncolored sound performance.



SHIPMENT IN 7/10 WORKING DAYS
€142.45 €149.95 -5%
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



ETON 3-312/C8/25 HEX Bass-mid Woofer

3“ Bass-Mid range driver with mid range preference, Phase plug construction, 3-layer Hexacone Sandwich cone, spacial and open reproduction, uncolored sound performance.

.

Highlights

  • Uncompromising sound quality
  • Uncolored sound reproduction
  • Frequency range: 50 – 3000 Hz
  • Milestone in Sound

.

Product details

ETON 3-312/C8/25 HEX Bass-mid Woofer

The Hex Symphony II Series is the logical development of our successful patented Symphony I Series. All of ETON’s expertise has been poured into the development of the Symphony Series. For the first time, the specially patented production process enabled the three-layered sandwich type of construction in combination with aramid fibres and their hexagonal internal structure. Maximum rigidity and excellent internal absorbing action are therefore guaranteed. The manually applied coating also supports neutral cone behaviour and provides the surface with visual depth.

The Symphony II midrange drivers and woofers create unique sound spectrums typical of Hex. The sound features are harmonic, smooth reflections of the overtones and distinctive, light midranges. A precise and powerful bass is created in the woofer range. All Symphony II chassis are characterized by a high degree of musical imaging and an impressive soundscape. The ferrite magnet geometry’s special design makes the magnetic field almost perfectly symmetrical. Multiple ventilation and the flow-supporting cast basket guarantees mini[1]mum compression effects at large amplitudes.

Symphony, unique in sound and design.

.

Technical Specifications

  • Nominal impedance Zn 8 Ω
  • Direct current resistance Re 5.9 Ω
  • Resonant frequency f 105 Hz
  • Compliance of the suspensionCMS 0.43 mm/N
  • Mechanical quality Qms 6.22
  • Electrical quality Qes 0.30
  • Overall quality Qts 0.29
  • Mechanical resistance RMS 0.53 kg/s
  • Total moving mass (incl. moving air mass) MMD 4.0 g
  • Effective radiating surface SD 34 cm2
  • Inductance voice coilLe 0.09 mH
  • Force factor BL 7.4 Tm
  • Xmax electrical +/- 2.0 mm
  • Xmax mechanical +/- 5.3 mm
  • Equivalent volume VAS 0.7 dm3
  • Average characteristic sound pressure level
  • SPL 1W/1m 87 dB
  • Power handling 40 Watt RMS
ETON 3-312/C8/25 HEX
