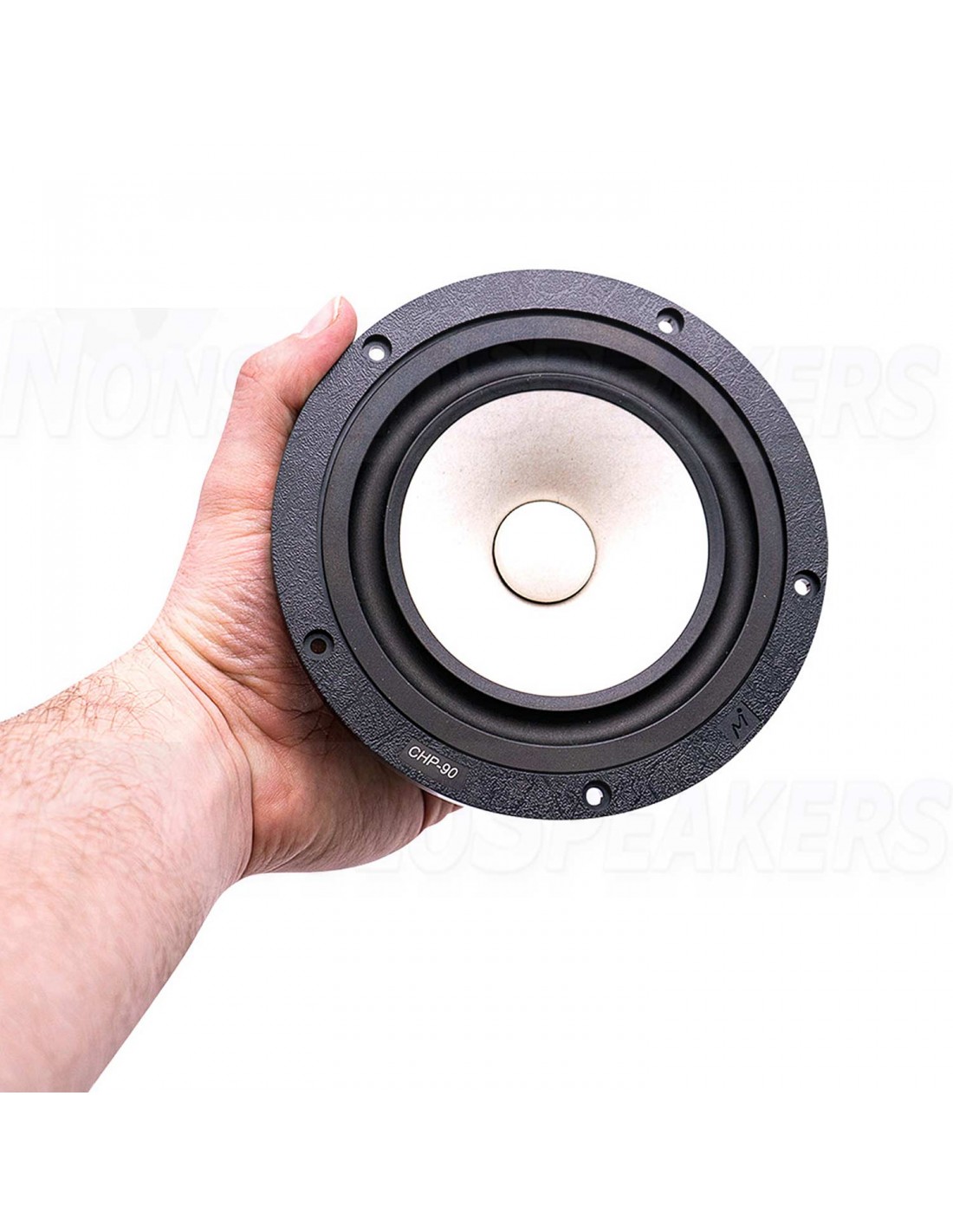

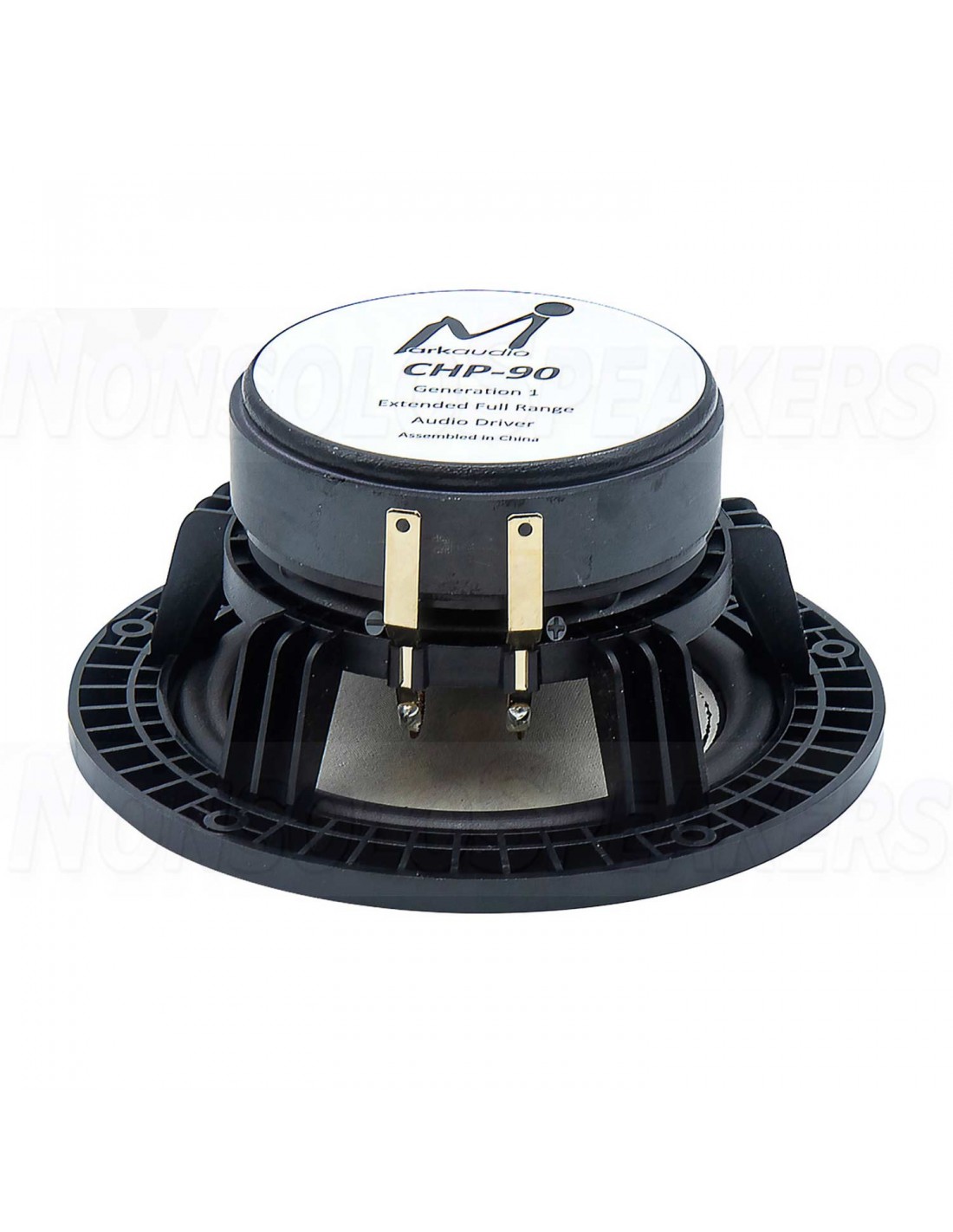

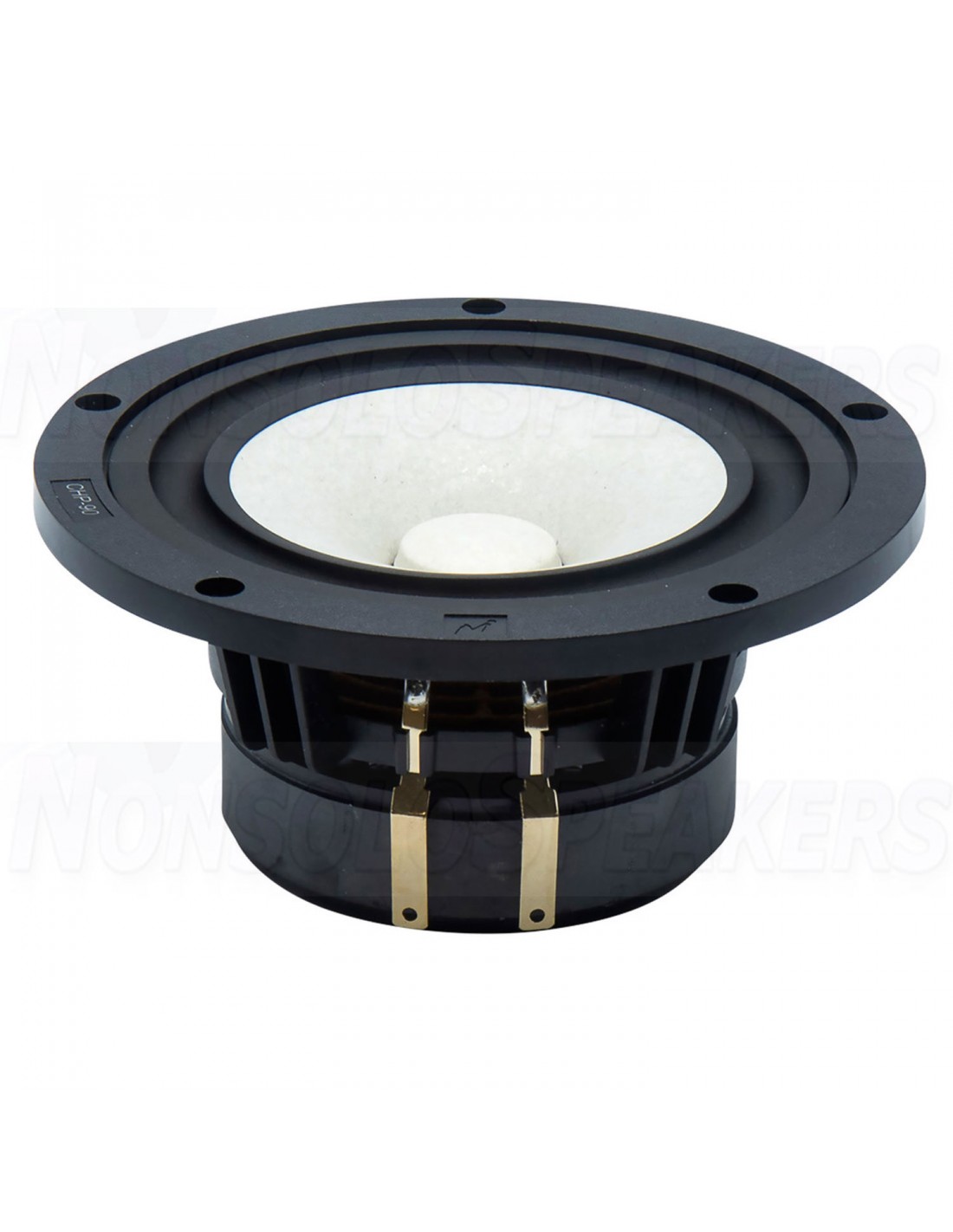

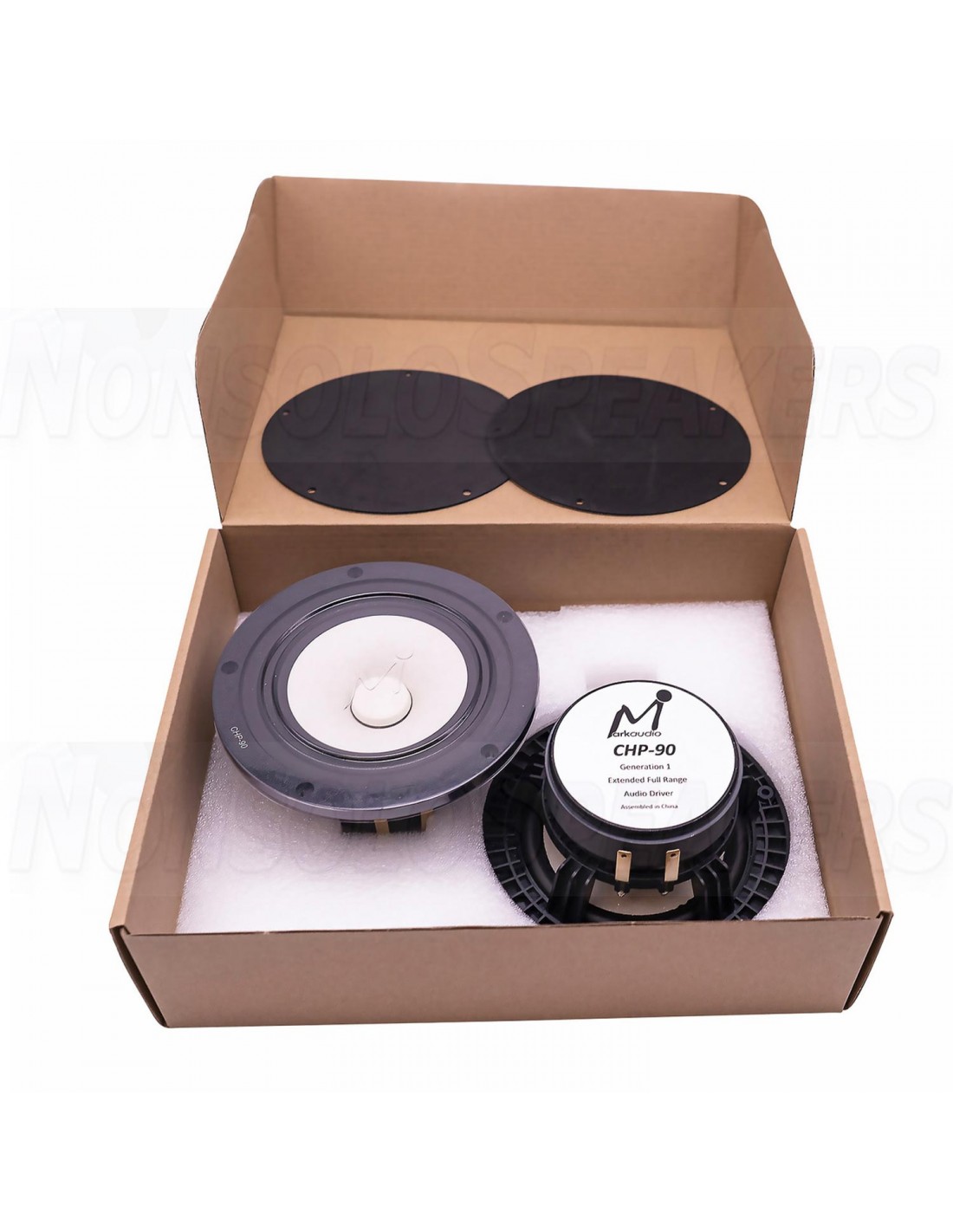

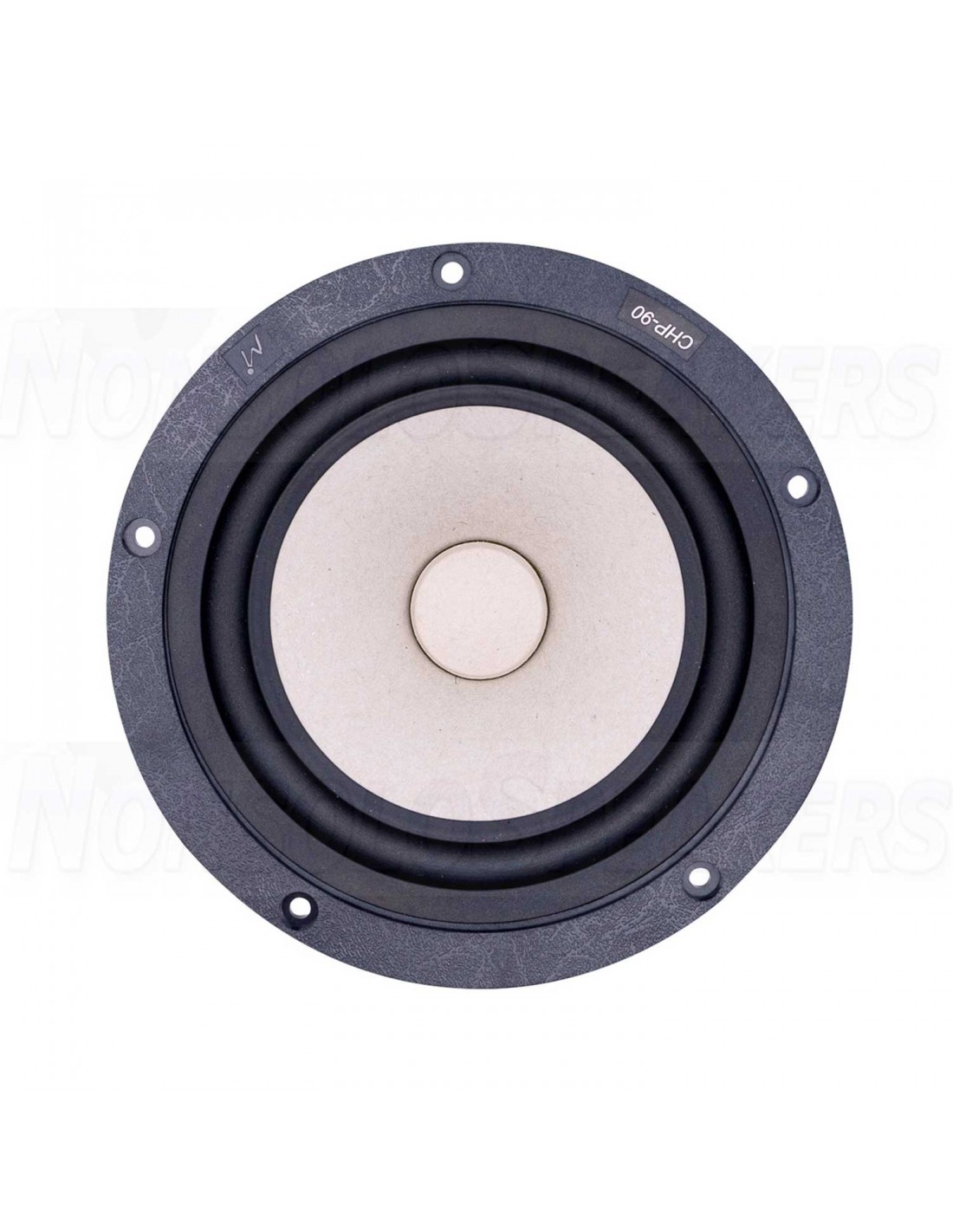

Markaudio CHP-90 Full-range Woofer

Price for 1 piece

The CHP90 is an attractive Full-Range multi-purpose drive unit suitable for use in variety of medium size loudspeakers applications, or as part of a multiway system. For single full-range point-source purist applications, the CHN90 is highly capable. The cone is formed from paper, mica and fibreglass materials creating high stability in the emitting surface across the usable frequency range.

-

Highlights

Full range drive unit

Single ferrite magnet

90mm cone with paper, mica, glass fiber materials

Operating range to 28KHz –very linear response

Long stroke suspension with progressive-rate spider

-

Product Details

Markaudio CHP-90 White Full-range Paper Woofer

F Zero is 48Hz, VAS is +20 Litres and SPL 89.2 dB. Useable frequency range (depending on box design) is from 37Hz to 28KHz rated at +89dB in many applications. The frequency response curve is near flat, making the CHN90 ideal for purist applications. The central mid-range is benign, near flat response, from 1KHz to 6KHz giving end-users and custom builders the potential to use the CHP90 as a mid-field driver in larger multiway applications, useful for balancing out larger radiated surface outputs from big bass units.

The CHP90 also has potential for use in 2 way applications as a bass-mid driver. Most Markaudio drivers have a purpose designed frequency lift in the lower ranges (typically 100Hz to 500Hz) to compensate for baffle step losses. The CHP90 is useful to these applications where end-users and loudspeaker makers need a wider choice on frequency cross-over point selection. The CHP90 shares the custom, modified-ABS chassis design with the CHR90. All moving parts (powertrain) are new and custom made for this driver.

Much work has been done to make the CHP90 a versatile driver and extend the well-known performance characteristics of Markaudio’s products.

-

Specifications

• Article number CHP-90

• Woofer Series CHP

• Woofer Type Full-range Woofer

• Nominal Diameter 3.5"

• Power Handling (RMS) 40 Watts

• Impedance (Z) 8Ω

• DC Resistance (Re) 6.2000 Ohm

• Resonant Frequency (Fs) 48.53 Hz

• Mechanical Q (Qms) 2.2008

• Electromagnetic Q (Qes) 0.4354

• Total Q (Qts) 0.3635

• Diaphragm Mass Inc. Airload (Mms) 5.4051 g

• Moving Mass Of Diaphragm (Mmd) 4.9619 g

• Mechanical Compliance of Suspension (Cms) 1.9898 mm/N

• Surface Area of Cone (Sd) 0.0085 m2

• Compliance Equivalent Volume (Vas) 20.05 L

• Maximum Linear Excursion (Xmax) +/- 7mm
