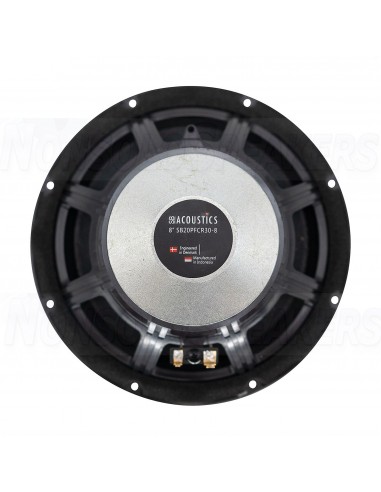

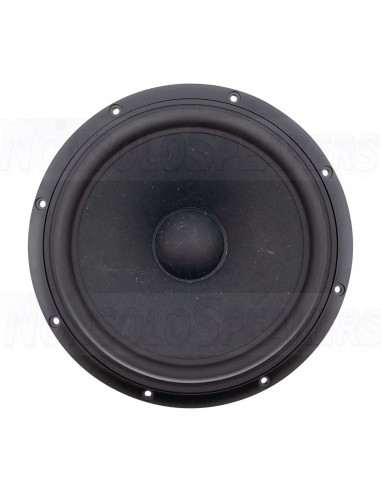

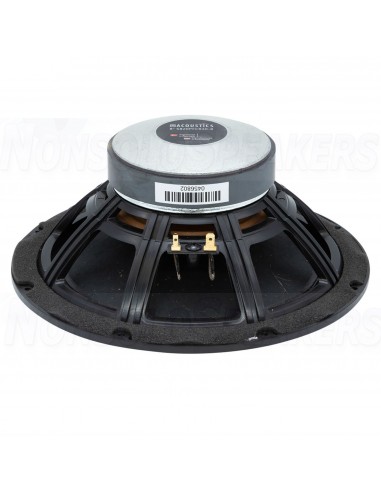

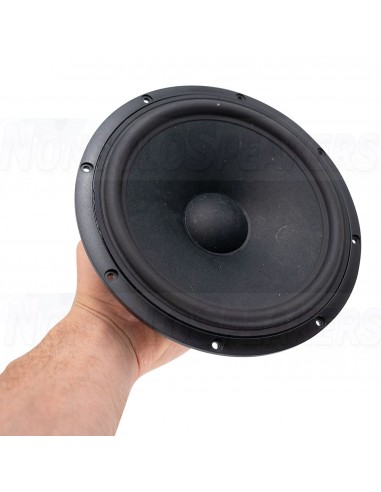

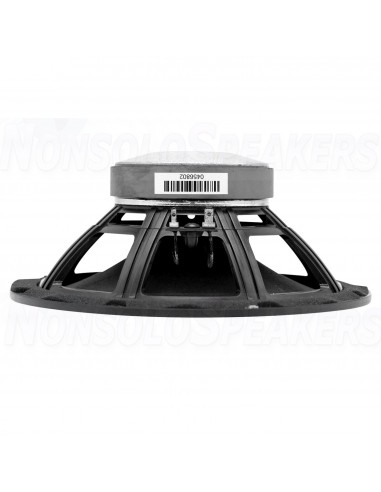

SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer
SB Acoustics SB20PFCR30-8 Full-range Woofer

SB Acoustics SB20PFCR30-8 Full-range Woofer

SB Acoustics SB20PFCR30-8 Full-range Woofer

This 8" papyrus fiber paper cone woofer is a great value for this build quality and performance.  The specifications make it a good choice for many different enclosure types.

SHIPMENT IN 7/10 WORKING DAYS
€41.95
Tax included
rating No review at the moment

The minimum purchase order quantity for the product is 2.

Estimated Shipping Costs
Shipping Costs
€14.40
Shipping Time
.
Want to check another country or courier?

You might also like



SB Acoustics SB20PFCR30-8 Full-range Woofer

.

Product description

This 8" papyrus fiber paper cone woofer is a great value for this build quality and performance.  The specifications make it a good choice for many different enclosure types.  An extended and smooth frequency response suggests simple crossovers, even none at all.

.

Highlights

Vented reinforced plastic chassis

Proprietary cone material with natural fibers made in-house

Soft low damping rubber surround for improved transient response

Large spider for improved linearity

Optimized motor system

Vented coil former for low compression

Non-resonant long life lead wires

.

Product Details

PAM8610 2 x 10W Class D Audio Amplifier Board

This 8" papyrus fiber paper cone woofer is a great value for this build quality and performance.  The specifications make it a good choice for many different enclosure types.  An extended and smooth frequency response suggests simple crossovers, even none at all.

-

Specifications

Article numberSB20PFCR30-8
Woofer TypeFull-range mid/woofer
Nominal Diameter8"
Power Handling (RMS)50 W
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)90.5 dB
Voice Coil Diameter30.5 mm
Magnet Weight540 g
DC Resistance (Re)5.6 ohms
Voice Coil Inductance (Le)0.84 mH
Resonant Frequency (Fs)34 Hz
Mechanical Q (Qms)2.66
Electromagnetic Q (Qes)0.43
Total Q (Qts)0.37
Diaphragm Mass Inc. Airload (Mms)21.2 g
Mechanical Compliance of Suspension (Cms)1.0 mm/N
Surface Area of Cone (Sd)216 cm2
BL Product (BL)7.7 Tm
Compliance Equivalent Volume (Vas)66.2 liters
Maximum Linear Excursion (Xmax)5.75 mm
Driver's Mechanical Losses (Rms)1.7 kg/s
Cone / Diaphragm MaterialPapyrus fiber paper cone
# Mounting Holes8
