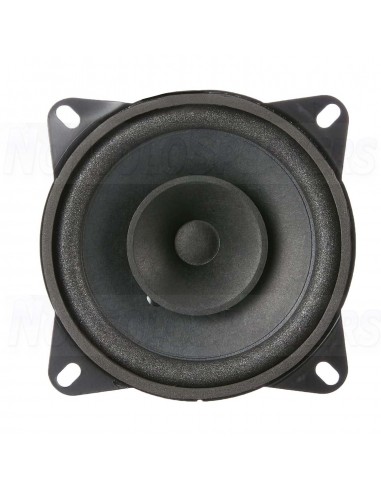

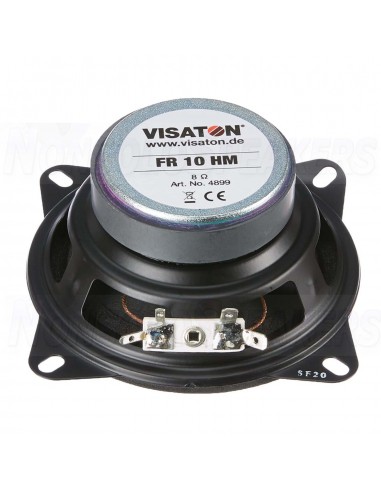

Visaton FR 10 HM - 4 Full-range Woofer
Visaton FR 10 HM - 4 Full-range Woofer
Visaton FR 10 HM - 4 Full-range Woofer
Visaton FR 10 HM - 4 Full-range Woofer
Visaton FR 10 HM - 4 Full-range Woofer
Visaton FR 10 HM - 4 Full-range Woofer

Visaton FR 10 HM - 4 Full-range Woofer

Visaton FR 10 HM - 4 Full-range Woofer

The Visaton FR 10 HM - 4 is a compact yet versatile speaker solution. This 4-inch full-range woofer features a tweeter cone, allowing it to reproduce a wide range of frequencies, from deep bass at 20 Hz to crisp highs at 20 kHz.

SHIPMENT IN 5-7 WORKING DAYS
€9.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton FR 10 HM - 4 Full-range Woofer

The Visaton FR 10 HM - 4 is a compact yet versatile speaker solution. This 4-inch full-range woofer features a tweeter cone, allowing it to reproduce a wide range of frequencies, from deep bass at 20 Hz to crisp highs at 20 kHz. This makes it suitable for various applications, including replacing speakers in cars, building bookshelf speakers, or even incorporating into portable speaker systems.

.

Highlights

  • Moisture-resistant membrane
  • Metal basket

.

Product Details

Visaton FR 10 HM - 4 Full-range Woofer

Installation is a breeze thanks to the FR 10 HM - 4's European standard basket, ensuring compatibility with various enclosures. It boasts a power handling capacity of 30 watts continuous, with a peak of 60 watts, and offers a sensitivity of 95 dB, meaning it can deliver ample sound even with lower power input. With an impedance of 4 ohms, it aligns with most amplifier setups.

.

Technical Data

  • Rated power 20 W
  • Impedance 4Ω / 8 Ω
  • Transmission range (–10 dB)
  • Frequency response (–10 dB) 95–22000 Hz
  • Mean sound pressure level 86 dB (1 W/1 m)
  • Excursion limit xmech ± 2 mm
  • Resonant frequency 120 Hz
  • Height of front pole-plate 2 mm
  • Voice coil diameter 14 mm Ø
  • Height of winding 5 mm
  • Cut-out diameter 94 mm Ø
  • Connections 2 x 4.8 x 0.8 mm (+)
  • Terminal 2 x 2.8 x 0.8 mm (–)
  • Net weight 0.34 kg
Visaton FR 10 HM - 4
