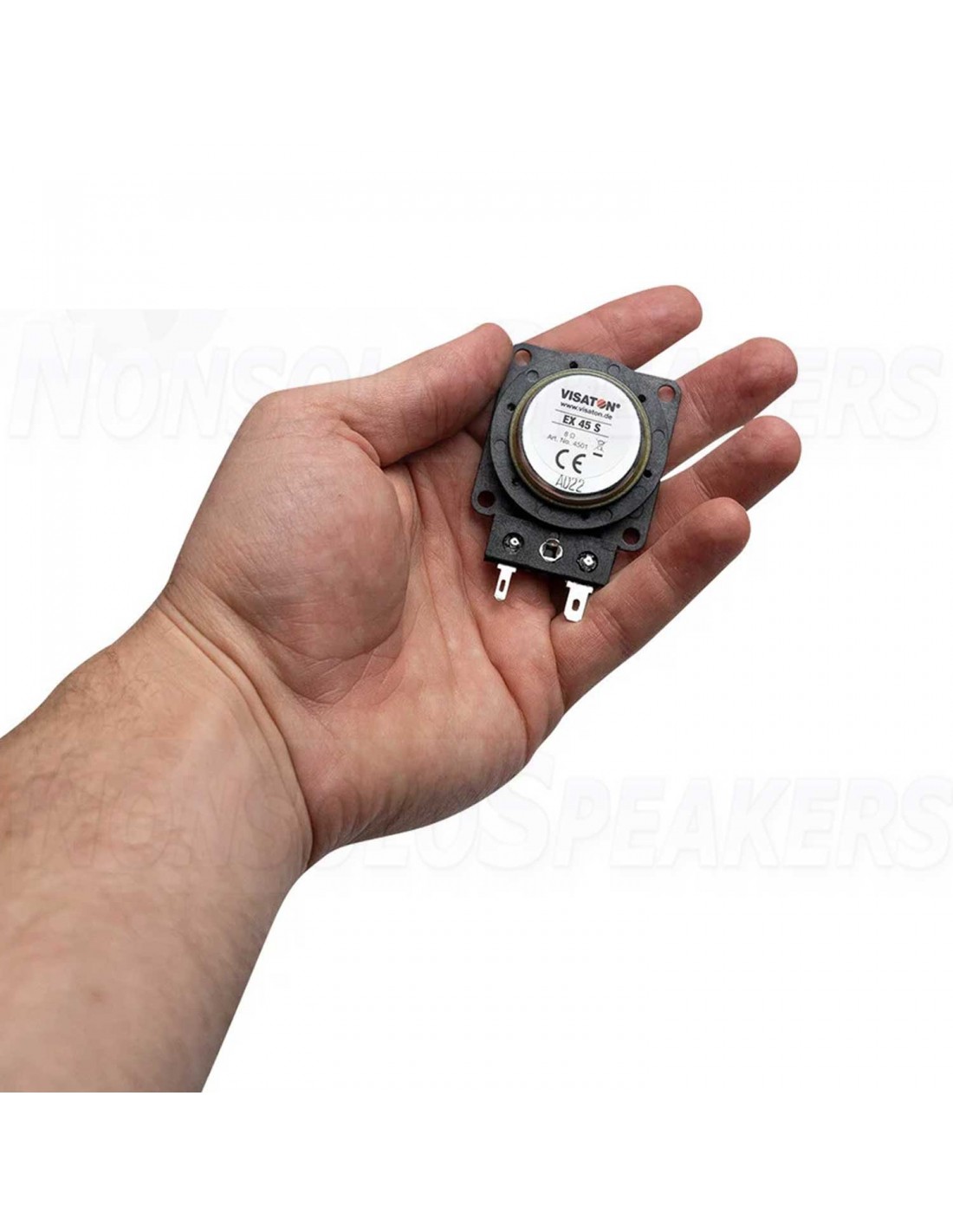

The Visaton EX45S-4 is an electro-dynamical exciter, designed to stimulate bending waves on plates. This unit provides a unique alternative to traditional speakers, offering the ability to generate sound in applications where normal speakers aren't an option due to aesthetic or environmental considerations.

SHIPMENT IN 5-7 WORKING DAYS
€49.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Visaton EX 45 S - 4 Electro Dynamical Exciter 4 Ohm

The Visaton EX45S-4 is an electro-dynamical exciter, designed to stimulate bending waves on plates. This unit provides a unique alternative to traditional speakers, offering the ability to generate sound in applications where normal speakers aren't an option due to aesthetic or environmental considerations.

.

Highlights

  • Maximum power of 10W
  • Electro-dynamical exciter that stimulates bending waves on plates Ideal for applications where conventional speakers aren't suitable
  • Can operate within a temperature range of -25 °C to +70 °C
  • Can be attached to the surface of the plate by gluing or screwing

Product Details

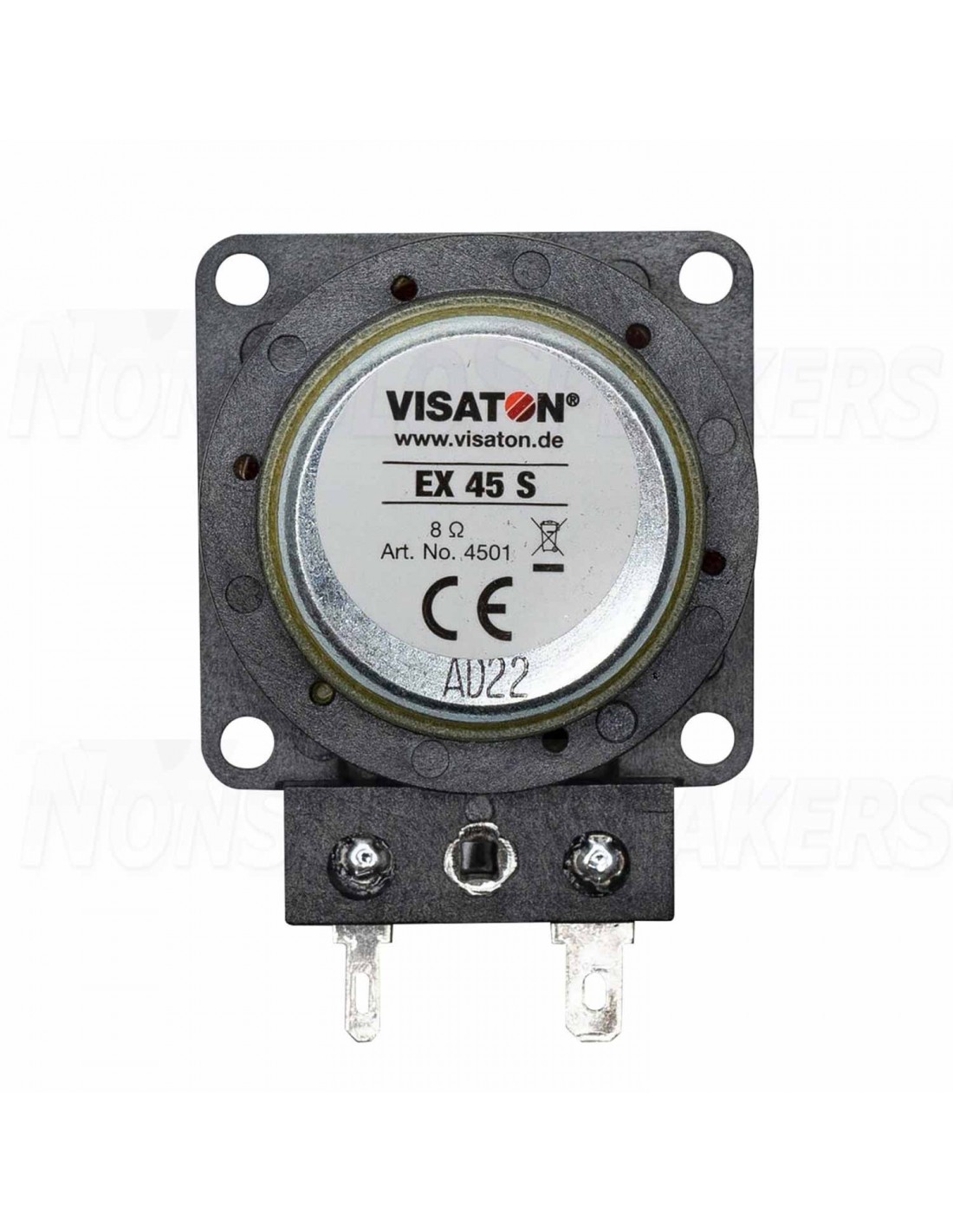

Visaton EX 45 S - 4 Electro Dynamical Exciter 4 Ohm

The Visaton EX45S-4 is an electro-dynamical exciter, specifically designed to stimulate bending waves on plates for its output. Unlike conventional speakers, this unit can generate sound in a variety of situations where traditional speakers may not be suitable, such as in visually sensitive settings, or areas requiring protection against environmental conditions or vandalism. The EX45S-4 can be attached to the surface of the plate, either by gluing or screwing, allowing for a degree of flexibility in its installation. With a voice coil diameter of 25.4 mm and a maximum power of 10W, this exciter is capable of producing significant acoustic energy. The device can operate within a temperature range of -25 °C to +70 °C, making it suitable for various environmental conditions. Connections are made via 4.8 x 0.8 mm (+) and 2.8 x 0.8 mm (-) terminals. The Visaton EX45S-4 offers a distinct, versatile, and robust solution for sound generation in a variety of challenging applications.

.

Technical Specifications

  • Load capacity Power 10 W
  • Impedance Impedance 4 Ω / 8 Ω
  • Voice coil diameter 25.4 mm Ø
  • Connection Terminal 4.8 x 0.8 mm (+)/2.8 x 0.8 mm (–)
  • Net weight 60 g

.



Visaton EX 45 S - 4
