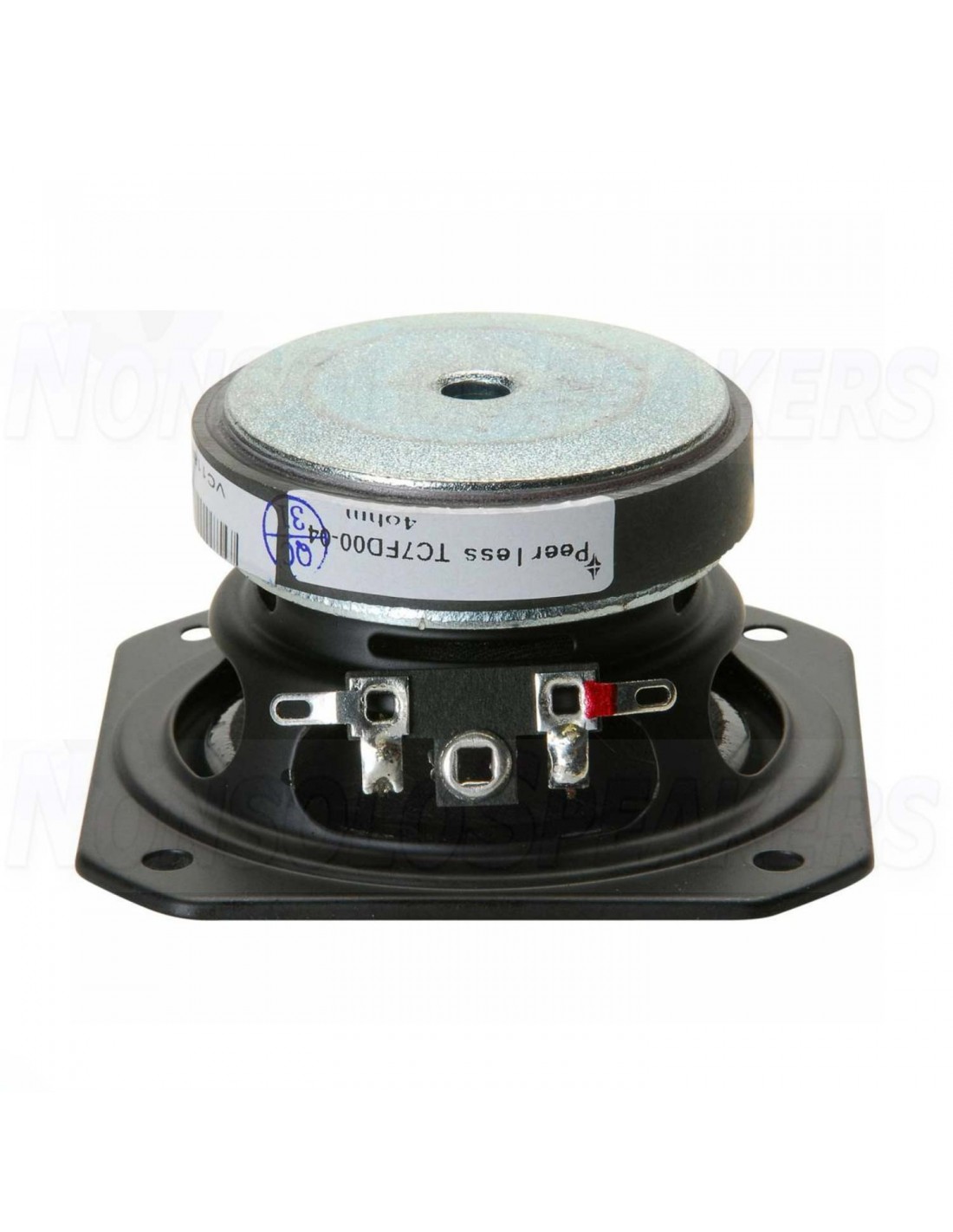

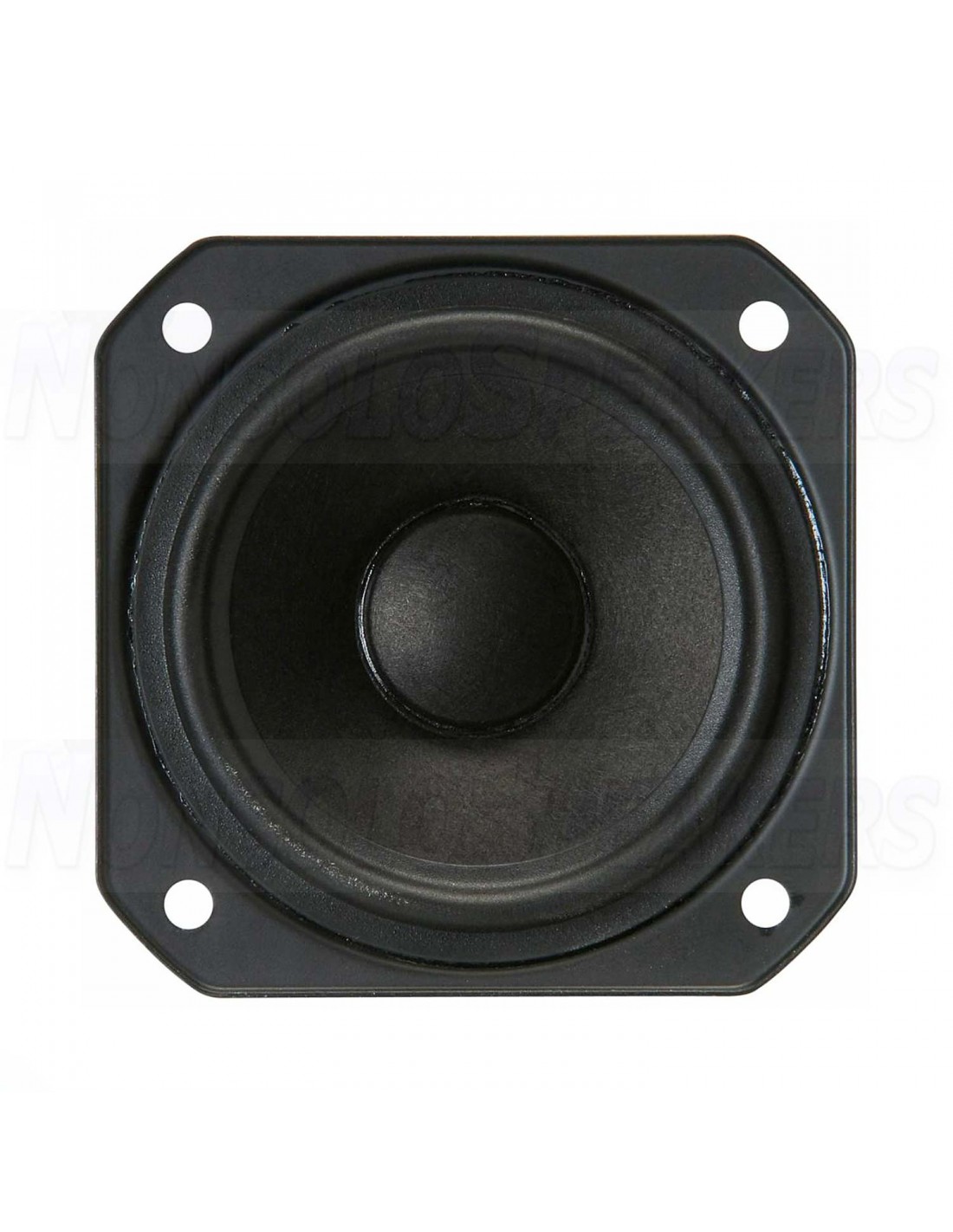

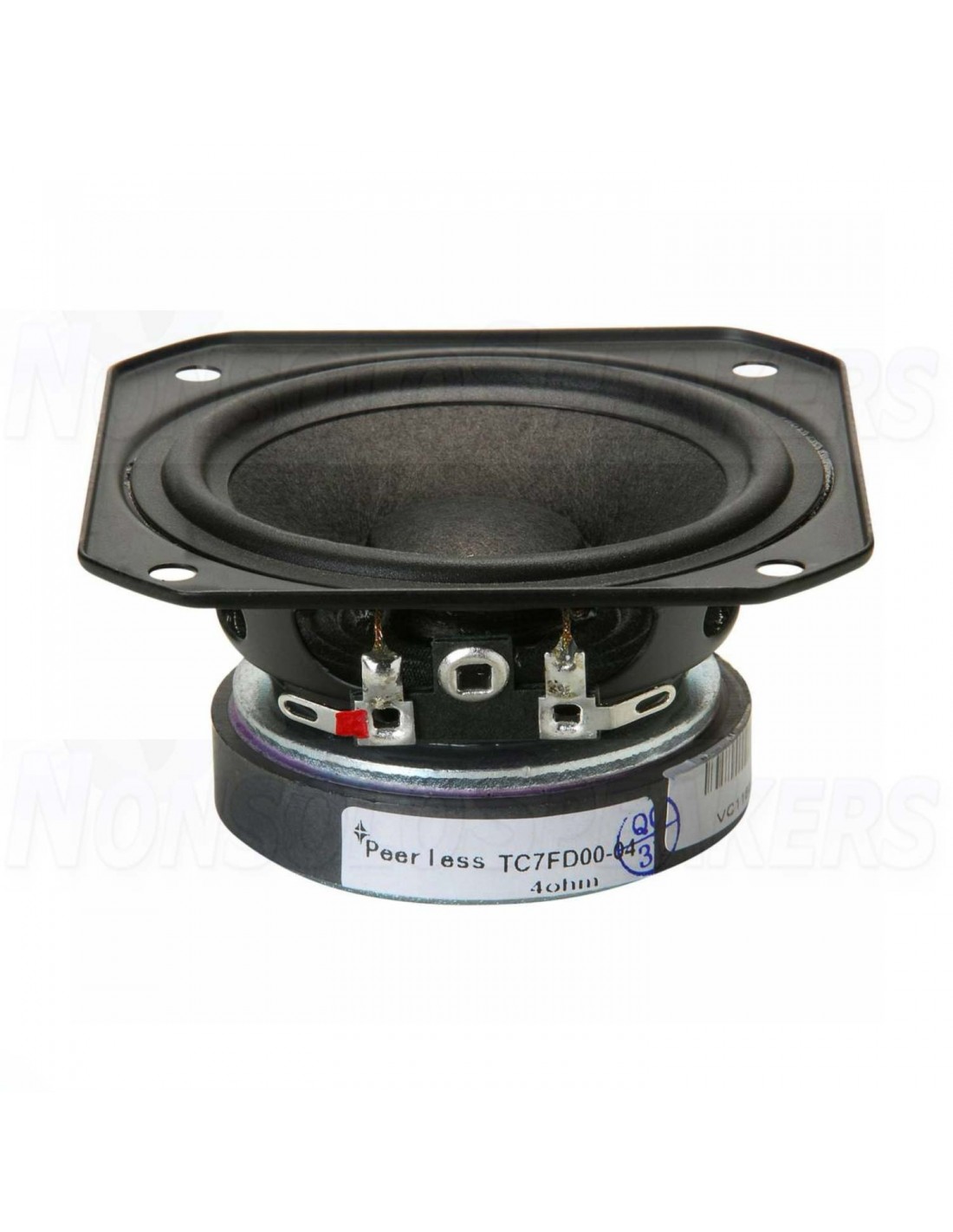

Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer

.

Product description

The TC7FD00-04 2-1/2" full-range speaker from Tymphany was designed to be an economical yet great-performing choice for applications that include TVs, music player docking stations, and hi-fi line arrays.

.

Highlights

Cost-effective ceramic ferrite magnet and stamped steel frame

Patented NRSC PentaCut cone technology controls resonances and improves performance

Under-spider venting increases power handling

Half-roll rubber surround for unrestricted travel

Copper pole piece cap controls impedance and extends HF response

.

Product details

Peerless by Tymphany TC7FD00-04 2-1/2" Full Range Paper Cone Woofer

This TC family 2.5 inch 4 ohm full-range driver,with ferrite magnet, paper cone and rubber surround, and steel basket, is designed to be a cost-effective high performance full range driver. The cone utilizes Tymphany-patented PentaCut NRSC cone technology to help dampen and control cone resonances, optimizing the listening experience. The motor contains a copper cap to lower inductance and distortion. The product was designed with portable and other compact applications in mind.

.

Specifications

Article number TC7FD00-04

Woofer Type Full Range Woofer

Nominal Diameter 2-1/2"

Power Handling (RMS) 20 Watts

Power Handling (max) 40 Watts

Impedance (Z) 4 ohms

Sensitivity (SPL at 1m / 2.83V) 82.4 dB

Frequency Response 130 to 20,000Hz

Voice Coil Diameter 0.75"

DC Resistance (Re) 3.2 ohms

Voice Coil Inductance (Le) 0.02 mH

Resonant Frequency (Fs) 143 Hz

Mechanical Q (Qms) 3.7

Electromagnetic Q (Qes) 1.22

Total Q (Qts) 0.92

Diaphragm Mass Inc. Airload (Mms) 1.64g

Mechanical Compliance of Suspension (Cms) 0.75 mm/N

Surface Area of Cone (Sd) 22.1 cm²

BL Product (BL) 1.97 Tm

Compliance Equivalent Volume (Vas) 0.02 ft.³

Maximum Linear Excursion (Xmax) 1 mm

Cone / Diaphragm Material Paper

Surround Material Rubber

Basket / Frame Material Steel

Magnet Material Ferrite

Overall Outside Diameter 2.95"

Overall Depth 1.43"

Baffle Cutout Diameter 2.56"

# Mounting Holes 4

Sealed Volume 0.05 ft.³

Sealed F3 138 Hz

Vented Volume 0.1 ft.³

Vented F3 82 Hz
