The SB Acoustics SB65WBAC25-4 is a high-tech little full-range driver. It has a Geometrically furrowed aluminum cone for extended usable frequency range, Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability.

SHIPMENT IN 7-10 WORKING DAYS
€32.95
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



SB ACOUSTICS SB65WBAC25-4 2,5" Full range

.

Product description

Geometrically furrowed aluminum cone

Copper cap

Low damping surround and non-conductive voice coil former

Linear neodymium motor system

Vented voice coil former

.

Product details

SB Acoustics SB65WBAC25-4 2,5" Full Range Driver

The SB Acoustics SB65WBAC25-4 is a high-tech little full-range driver. It has a Geometrically furrowed aluminum cone for extended usable frequency range, Copper cap for increased high frequency output, reduced phase shift at higher frequencies and improved power handling capability. Furthermore it uses a low damping surround and non-conductive voice coil former to ensure dynamics and an open/transparent sound character with excellent detailing/resolution. All of these components are driven by a linear neodymium motor system for reduced distortion and a vented voice coil former for reduced compression.

.

Specifications

Article numberSB65WBAC25-4
Woofer SeriesWideband Series
Woofer TypeFull-Range
Nominal Diameter2.5"
Power Handling (RMS)20 Watts
Impedance (Z)4 ohms
Sensitivity (SPL at 1m / 2.83V)83.5 dB
Voice Coil Diameter25.4 mm
Magnet Weight0.02 kg
DC Resistance (Re)3.6 ohms
Voice Coil Inductance (Le)0.15 mH
Resonant Frequency (Fs)115 Hz
Mechanical Q (Qms)6.0
Electromagnetic Q (Qes)0.77
Total Q (Qts)0.68
Diaphragm Mass Inc. Airload (Mms)2.5g
Mechanical Compliance of Suspension (Cms)0.77 mm/N
Surface Area of Cone (Sd)20 cm2
BL Product (BL)2.9 Tm
Compliance Equivalent Volume (Vas)0.43 liters
Maximum Linear Excursion (Xmax)2.65 mm
Cone / Diaphragm MaterialAluminum
Magnet MaterialNeodymium

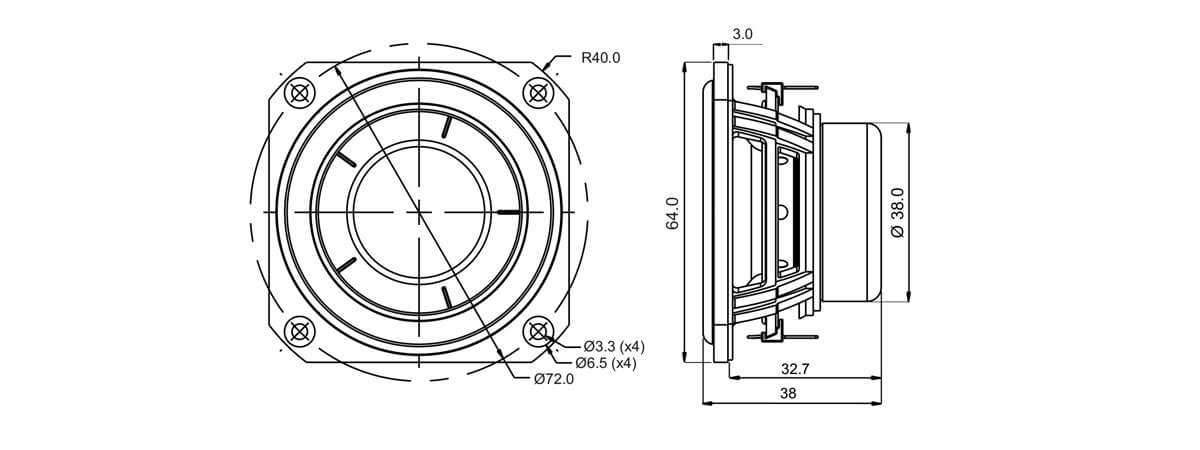

Overall Depth38 mm
# Mounting Holes4
Mounting Hole Diameter3.3 mm

SB65WBAC25-4
