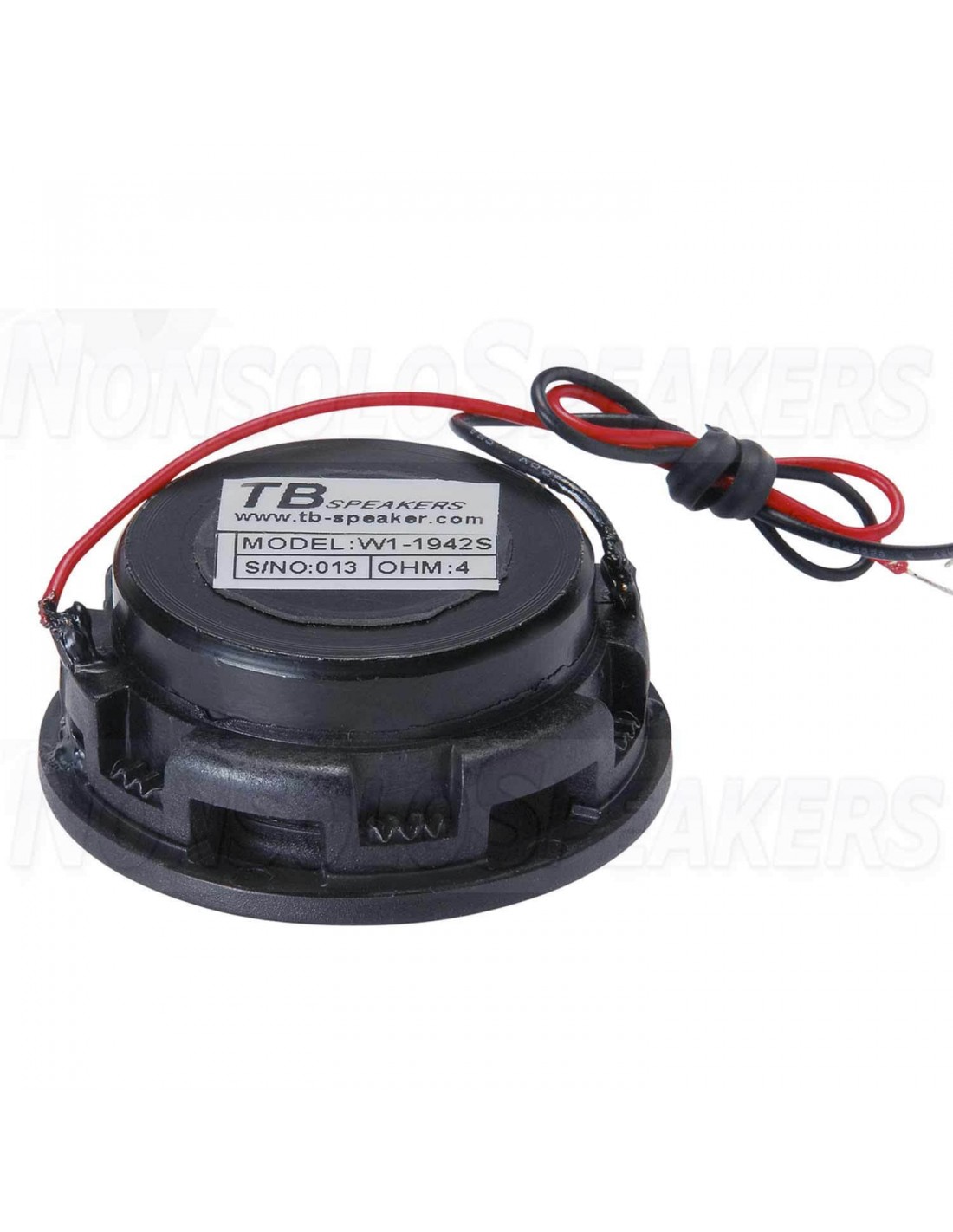

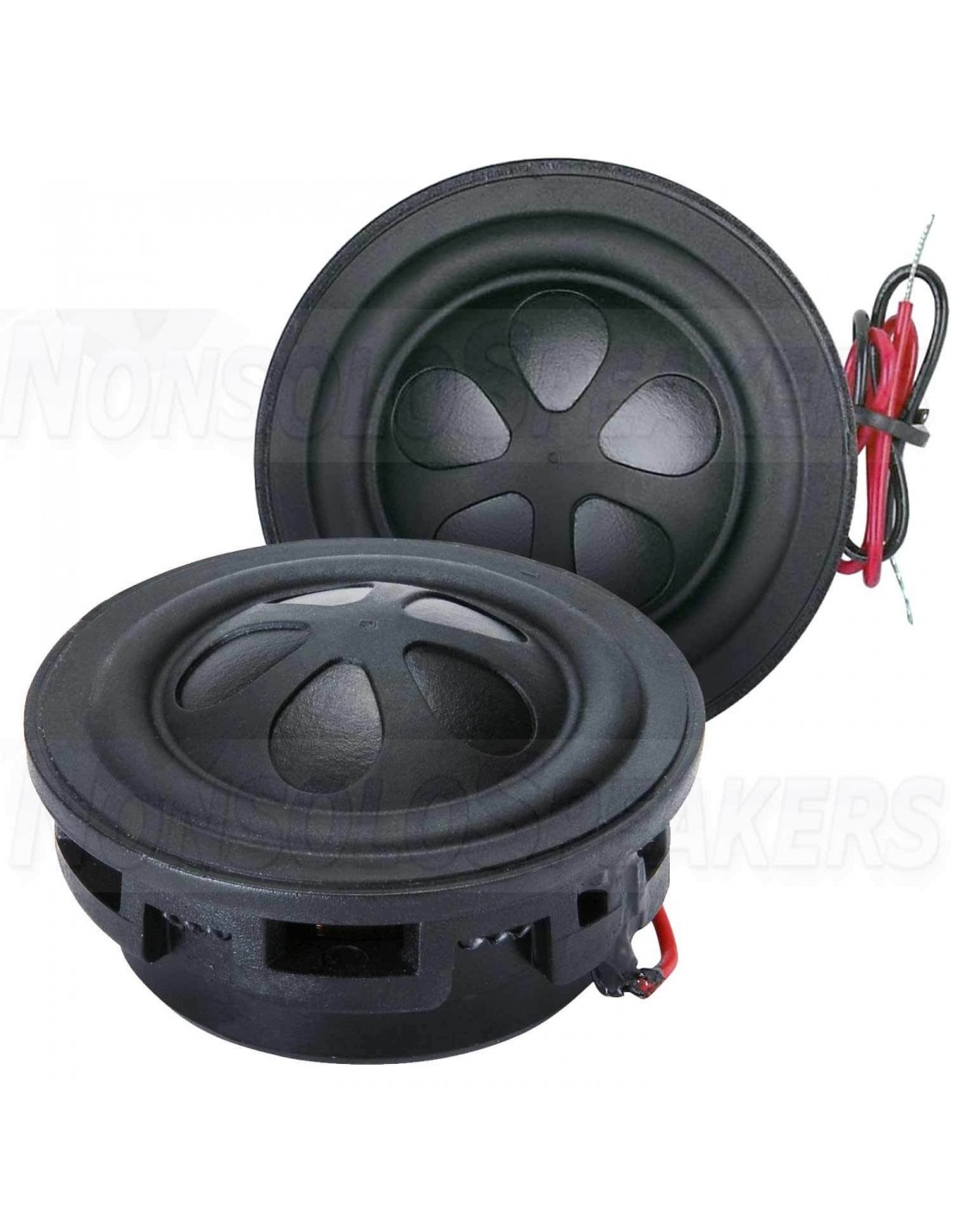

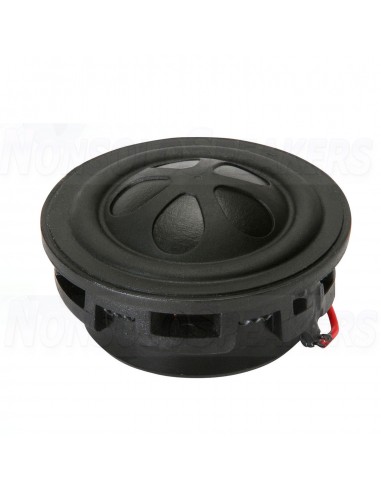

TANG BAND W1-1942S - 1.75" Full Range 2 x TB-Speakers - 4 ohm

- PAIR -

Tang Band's W1-1942S micro full-range driver features amazing performance that belies its diminutive 46 mm diameter (just over 1-3/4") size. The patented design employs a unique polypropylene cone, with flower petal embossments, that's mated to a neodymium motor for maximum BL product in the voice coil gap. A free air resonance of 120 Hz allows you to pair these nearly any woofer or subwoofer up to 9 feet away without localization and beaming effects (poor off-axis response).

Additionally, you can use these drivers in multiples for an awesome line-array speaker that requires a miniscule footprint. Great for use in designing micro LCR (left, center, right) speakers for modern flat panel HDTVs, or even computer desk and laptop speakers. The high-fidelity nature of these drivers is exemplified by their low Qts specification (quite rare in drivers this size), while the ultra-low inductance allows these to play relatively flat frequency response up 20,000 Hz! Ferrofluid cooling protects and cools the voice coil, while the mineral-filled polypropylene cone combines with the Santoprene surround for use in harsh environments. Press-fit frame design minimizes center-to-center distance.

Note: Higher power handling can be achieved by using a 150 Hz 2nd-order high-pass filter, or by using multiple drivers together.

-

Product Details

• Brand Tang Band
• Model W1-1942S
• Part Number 264-924
• UPC 844632099427
• Unit of Measure Each
• Weight 0.2

.

Product Specifications

• Nominal Diameter 1"
• Moving Mass Of Diaphragm (Mmd) 1.25
• Power Handling (RMS) 4 Watts
• Power Handling (MAX) 8 Watts
• Impedance 4Ω
• Frequency Response 120 to 20,000Hz
• Sensitivity 82dB 2.83V/1m
• Voice Coil Diameter 1"

.

Thiele-Small Parameters

• Resonant Frequency (Fs) 120Hz
• DC Resistance (Re) 3.5Ω
• Voice Coil Inductance (Le) 0.046mH
• Mechanical Q (Qms) 1.79
• Electromagnetic Q (Qes) 0.27
• Total Q (Qts) 0.24
• Compliance Equivalent Volume (Vas) 0.005ft³
• Mechanical Compliance of Suspension (Cms) 1.37mm/N
• BL Product (BL) 3.49T·m
• Maximum Linear Excursion (Xmax) 1.3mm
• Surface Area of Cone (Sd) 9cm²

.

Materials of Construction

• Cone Material Poly Composite
• Surround Material Santoprene®
• Magnet Material Neodymium
• Overall Outside Diameter 1.81"
• Baffle Cutout Diameter 1.67"
• Depth 0.61"

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

• Sealed Volume 0.000378ft³
• Sealed F3 435Hz
• Vented Volume 0.00083ft³
• Vented F3 273.1Hz
