TANG BAND T0-2008S - 0.5" Module X 2PZ TB-Speakers

- Pair -

Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel tv speakers, and portable audio systems. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

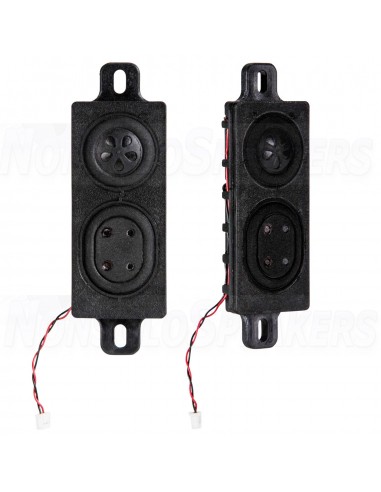

The T0-2008S speaker module is the smallest of the three speaker modules from Tang Band and is built around a passive radiator assisted, polypropylene composite 20.1 mm inverted dome driver. This allows for a very full frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment.

Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 180 Hz high pass filter for the best possible sound. Higher power handling and output is possible by deploying multiple modules together. The T0-2008S is not designed to work with Tang Band's KIT-0041 speaker module mounting kit with amplifier.

.

Product Details

• Brand Tang Band
• Model T0-2008S
• Part Number 264-943
• UPC 848864043708
• Unit of Measure Each
• Weight 0.05

.

Product Specifications

• Power Handling (RMS) 0.5 Watts
• Power Handling (MAX) 1 Watts
• Impedance 4Ω
• Frequency Response 200 to 20,000Hz
• Sensitivity 73dB 2.83V/1m
• Thiele-Small Parameters
• Resonant Frequency (Fs) 200Hz

-

Materials of Construction

• Cone Material Poly Composite
• Surround Material Rubber
• Basket / Frame Material Polymer
• Magnet Material Neodymium

.

Mounting Information

• Overall Outside Diameter 2.165" x 0.94"; With mounting tabs: 2.95"
• Depth 0.34"
• # Mounting Holes 2

.
