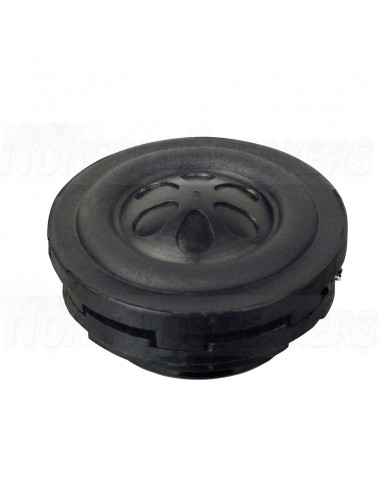

W1-1925SB - 1" Full Range TB-Speakers TANG BAND
TANG BAND W1-1925SB 1" Full Range 2 X TB-Speakers
W1-1925SB - 1" Full Range TB-Speakers TANG BAND
TANG BAND W1-1925SB 1" Full Range 2 X TB-Speakers

TANG BAND W1-1925SB 1" Full Range 2 X TB-Speakers

TANG BAND W1-1925SB 1"  Full Range 2 X TB-Speakers

Features a neodymium motor and polypropylene cone, resulting in an ultra compact, magnetically shielded extended range driver.

Out-of-Stock
€21.00
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€10.80
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND W1-1925SB 1"  Full Range 2 X TB-Speakers

Features a neodymium motor and polypropylene cone, resulting in an ultra compact, magnetically shielded extended range driver. Fits where others cannot, and provides extended and surprisingly smooth output. Sold individually

.

Product Details

  • Brand Tang Band
  • Model W1-1925SB
  • Part Number 264-922
  • UPC 844632099403
  • Unit of Measure Each
  • Weight 0.05

.

Product Specifications

  • Nominal Diameter 1"
  • Moving Mass Of Diaphragm (Mmd) 0.2
  • Power Handling (RMS) 3.5 Watts
  • Power Handling (MAX) 7 Watts
  • Impedance 4Ω
  • Frequency Response 220 to 20,000Hz
  • Sensitivity 75dB 2.83V/1m
  • Voice Coil Diameter 0.5"

.

Thiele-Small Parameters

  • Resonant Frequency (Fs) 220Hz
  • DC Resistance (Re) 3.5Ω
  • Voice Coil Inductance (Le) 0.008mH
  • Mechanical Q (Qms) 0.61
  • Electromagnetic Q (Qes) 0.82
  • Total Q (Qts) 0.54
  • Compliance Equivalent Volume (Vas) 0.00052ft³
  • Mechanical Compliance of Suspension (Cms) 2.4mm/N
  • BL Product (BL) 1.12T·m
  • Maximum Linear Excursion (Xmax) 0.75mm
  • Surface Area of Cone (Sd) 2.3cm²

.

Materials of Construction

  • Cone Material Poly
  • Surround Material Santoprene®
  • Basket / Frame Material Polymer
  • Magnet Material Neodymium

.

Mounting Information

  • Overall Outside Diameter 1"
  • Baffle Cutout Diameter 0.93"
  • Depth 0.54"

.

Optimum Cabinet Size (determined using BassBox 6 Pro High Fidelity suggestion)

  • Sealed Volume 0.0000972ft³
  • Sealed F3 535.1Hz
  • Vented Volume 0.000253ft³
  • Vented F3 304.4Hz
