T1-1931S - X 2PZ 1" MODULE TB-Speakers - 4ohm TANG BAND
TANG BAND T1-1931S - 1" MODULE TB-Speakers - 4ohm (PAIR)
TANG BAND T1-1931S - 1" MODULE TB-Speakers - 4ohm (PAIR)
T1-1931S - X 2PZ 1" MODULE TB-Speakers - 4ohm TANG BAND
TANG BAND T1-1931S - 1" MODULE TB-Speakers - 4ohm (PAIR)
TANG BAND T1-1931S - 1" MODULE TB-Speakers - 4ohm (PAIR)

TANG BAND T1-1931S - 1" MODULE TB-Speakers - 4ohm (PAIR)

TANG BAND T1-1931S -  1" MODULE TB-Speakers - 4ohm (PAIR)

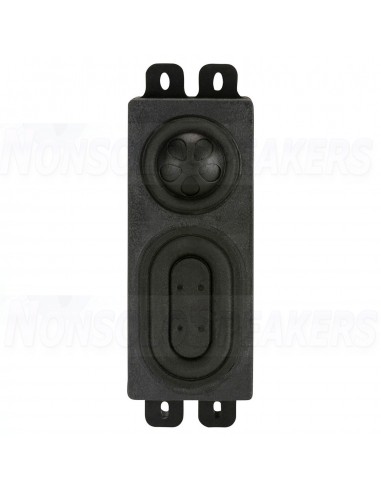

The T1-1931S speaker module from Tang Band is built around a passive radiator assisted, polypropylene composite 31 mm inverted dome driver. This allows for a very full frequency response from a single, small driver.


Out-of-Stock
€48.45 €51.00 -5%
Tax included
rating Read the review
Average rating: 10/10 Number of reviews: 1

Quantity Unit discount You Save
2 7% €7.14

Estimated Shipping Costs
Shipping Costs
€10.80
Shipping Time
.
Want to check another country or courier?

You might also like



TANG BAND T1-1931S -  1" MODULE TB-Speakers - 4ohm

- PAIR -

The T1-1931S speaker module from Tang Band is built around a passive radiator assisted, polypropylene composite 31 mm inverted dome driver. This allows for a very full frequency response from a single, small driver.

Tang Band's line of patented speaker modules are designed for modern audio applications such as sound bars, desktop multimedia speakers, flat panel tv speakers, and portable audio systems. Don't let Tang Band's diminutive driver modules fool you; each is built with a passive radiator that extends midbass frequency response, allowing these to mate to a subwoofer system quite easily.

The T1-1931S speaker module from Tang Band is built around a passive radiator assisted, polypropylene composite 31 mm inverted dome driver. This allows for a very full frequency response from a single, small driver. Advantages of this type of speaker design include the elimination of crossover components in the critical midrange, superb off-axis response due to the use of a small driver (without hot spots), and perfect time-alignment.

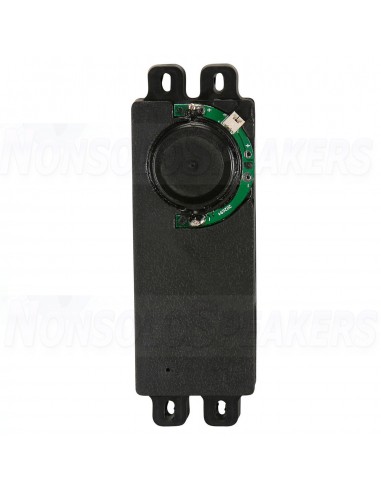

Tang Band incorporated mounting tabs and a two-pin wiring harness jack into the T1-1931S to facilitate mounting and amplifier connection to the optional KIT-0041 speaker module mounting kit with amplifier. For custom applications, two polarity-indicated solder points are built onto the driver PCB.

Note: Tang Band recommends the use of a 2nd order (-12 dB/octave) 100 Hz high pass filter for the best possible sound. Higher power handling and output is possible through the use of multiple modules.

.

Product Details

  • Brand Tang Band
  • Model T1-1931S
  • Part Number 264-945
  • UPC 848864003016
  • Unit of Measure Each
  • Weight 0.15

.

Product Specifications

  • Power Handling (RMS) 2 Watts
  • Power Handling (MAX) 4 Watts
  • Impedance 4Ω

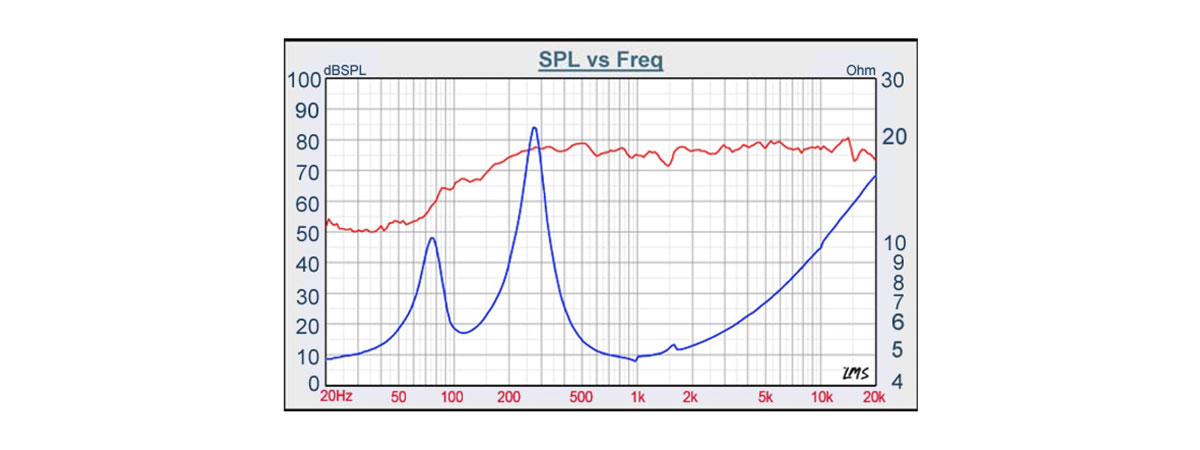

  • Frequency Response 105 to 20,000Hz
  • Sensitivity 76dB 2.83V/1m

.

Thiele-Small Parameters

  • Resonant Frequency (Fs) 105Hz

.

Materials of Construction

  • Cone Material Poly Composite
  • Surround Material Rubber
  • Basket / Frame Material Polymer
  • Magnet Material Neodymium

-

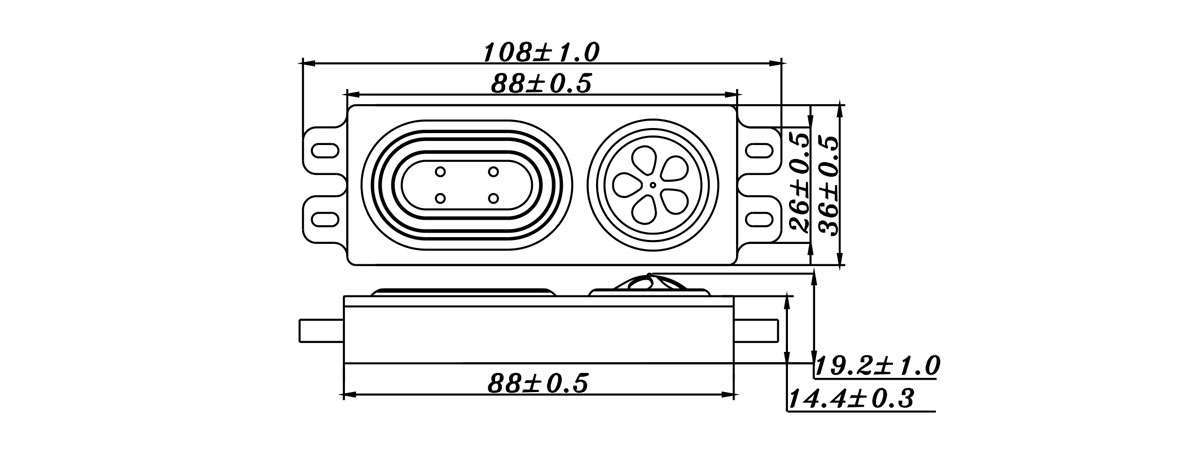

Mounting Information

  • Overall Outside Diameter 3.46" x 1.41"; With mounting tabs: 4.25"
  • Depth 0.76"
  • # Mounting Holes 4



T1-1931S
Excellent product
rating
10/27/2025
Robert f.
I Use the module for modeltrain with sound in gauge 1. Very warm sound with relative deep bass sound. If there is space enough in your modeltrain and you want to have the best sound, choose for these 1931 sound modules.
