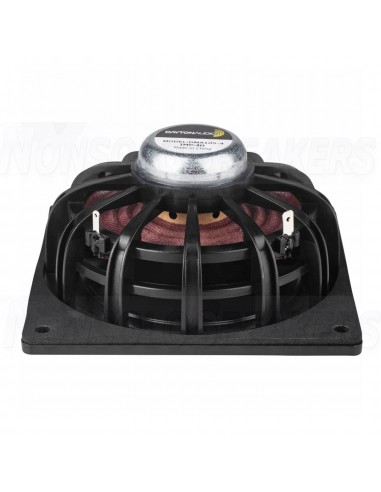

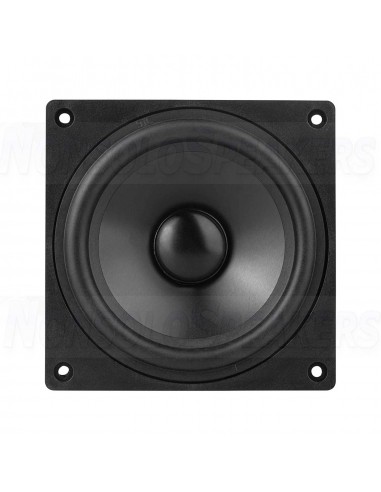

Dayton Audio DMA105-4 4" Aluminum Cone Full-Range Driver

.

Product description

Dayton Audio's DMA105-8 4" high performance full-range driver combines a rigid aluminum cone, powerful dual magnet neodymium motor, and a proprietary open frame to create a state of the art speaker that delivers low distortion, natural response, and amazing high frequency capability. Make the DMA105-8 the first choice for your next smart speaker, portable Bluetooth speaker, or even high output line array design.

.

Highlights

    Excellent high frequency response for true full-range applications

    Dual neodymium motor to create a symmetrical magnetic field for superb control

    Large copper cap lowers distortion while improving high frequency response

    Vented aluminum voice coil former with exceptional heat dissipation for high power handling

    Exclusive 8-spoke open frame design provides extensive venting and minimal reflection

    DIY friendly, oversized mounting flange makes installation simple

    Matching tunable passive radiators also available!

.

Product details

Dayton Audio DMA105-8 4" Dual Magnet Aluminum Cone Full-Range Driver 4 Ohm

Providing high efficiency with low distortion, Dayton Audio's DMA105-8 4" aluminum cone full-range is an ideal driver for use in many of today's modern speaker designs. Whether you are designing a portable Bluetooth speaker, sound bar, compact desktop speaker, or even a high output line array the DMA105-8 is the perfect full-range for the job.

Designed for the highest performance while delivering maximum value, the no compromise design of the DMA105-8 produces true full-range output capability with minimal distortion. The motor uses dual neodymium magnets creating a strong and symmetrical magnetic field providing high efficiency with excellent cone control. The magnet assembly also includes a large copper cap and sleeve to lower inductance and distortion resulting in improved high frequency response. The 2-layer 1" voice coil is wound on a vented aluminum former providing excellent heat dissipation for high power handling and low power compression. A rubber surround and large spider keeps the lightweight aluminum cone linear with superb mechanical damping. In addition, the aluminum dust cap is attached directly to the voice coil former to improve high frequency response with terrific off axis performance. Holding everything together is a proprietary 12-spoke frame with an extremely open design that has extensive venting under the spider and ample room for high excursion.

Furthermore, Dayton Audio designed the frame for all the DMA Series with DIY speaker builders in mind. The oversized mounting flange means that no precision cutouts are necessary. To ensure an easy installation, the terminals are oriented in such a way that no odd cutouts or notches are needed for connector or wire clearance. Finally, the corners have a 1/8" radius, meaning that for flush mounting you can get a perfect fit using any standard 1/4" straight cut router bit.

.

Specifications

Article number DMA105-8

Woofer Series DMA series

Woofer Type Full-range

Nominal Diameter 4”

Power Handling (RMS)  35 Watts

Power Handling (max) 70 Watts

Impedance (Z)  8 ohms

Sensitivity 84.8 dB 2.83V/1m

Frequency Response 70 to 20,000 Hz

Voice Coil Diamete  1"

DC Resistance Re  7.5 ohms

Voice Coil Inductance (Le) 0.6 mH

Resonant Frequency (Fs) 72 Hz

Mechanical Q (Qms) 2.64

Electromagnetic Q (Qes) 0.83

Total Q (Qts) 0.63

Diaphragm Mass Inc. Airload (Mms)4.9g

Mechanical Compliance of Suspension (Cms) 1.0 mm/N

Surface Area of Cone (Sd) 54.1 cm²

BL Product (BL) 4.47 Tm

Compliance Equivalent Volume (Vas) 0.15 ft.³

Maximum Linear Excursion (Xmax)  2.5 mm

Cone / Diaphragm Material Aluminum

Surround Material  Rubber

Voice Coil Wire MaterialCopper

Voice Coil Forme Aluminum

Basket / Frame Material Polymer

Magnet Material Neodymium

Overall Outside Diameter 4.1" x 4.1"

Overall Depth 1.86"

Baffle Cutout Diameter 3.54"

# Mounting Holes 4

Sealed Volume 0.167 ft.³

Sealed F3 97 Hz

Vented Volume 0.37 ft.³

Vented F3 48 Hz
