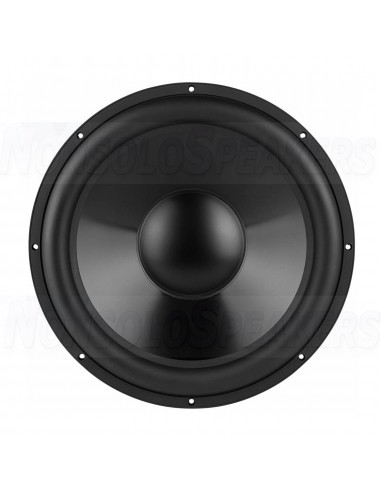

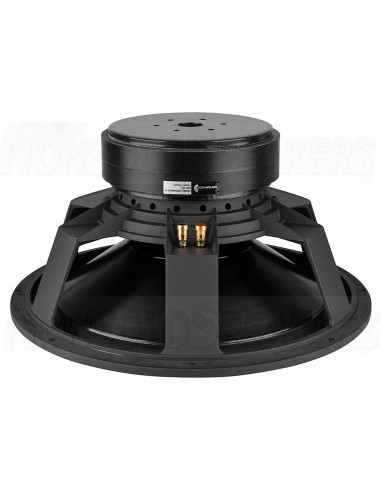

Dayton Audio RSS460HO-4 18" Reference Subwoofer

Product description

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

.

Highlights

Extensively vented motor eliminates compression and allows quiet excursion

Extra-thick black anodized aluminum cone for maximum rigidity

Triple shorting ring motor for ultra-low distortion

4-layer coil for high power handling

Optimized parameters for relatively small enclosures

Highest quality materials throughout for long-lasting performance

.

Product details

Dayton Audio RSS460HO-4 18" Reference HO Subwoofer 4 ohm

The Dayton Audio Reference Series subwoofers take the quality and performance of the much acclaimed RS line into the subwoofer realm. As with the rest of the Reference Series, the main focus of these subwoofers is ultra-low-distortion. Second, third, and intemodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, rubber surround, and custom basket give this driver a unique, high-end look.

.

Specifications

Article number RSS460HO-4

Woofer Series Reference Series

Woofer Type Subwoofer

Nominal Diameter 18"

Power Handling (RMS) 900 watts

Power Handling (max) 1800 watts

Impedance (Z) 4 ohms

Sensitivity 93 dB @ 2.83V/1m

Frequency Response 20 - 500 Hz

Voice Coil Diameter 76.2 mm

DC Resistance (Re) 3.2 ohms

Voice Coil Inductance (Le) 2.24 mH @ 1 kHz

Resonant Frequency (Fs) 18.8 Hz

Mechanical Q (Qms) 4.05

Electromagnetic Q (Qes) 0.35

Total Q (Qts) 0.32

Diaphragm Mass Inc. Airload (Mms) 499g

Mechanical Compliance of Suspension (Cms) 0.14 mm/N

Surface Area of Cone (Sd) 1,164.0 cm²

Volume of Displacement (Vd) 1,484.1 cm³

BL Product (BL) 23.4 Tm

Compliance Equivalent Volume (Vas) 272 liters

Maximum Linear Excursion (Xmax) 12.75 mm

Cone / Diaphragm Material Black Anodized Aluminum Cone

Surround Material Rubber

Voice Coil Wire Material Copper

Voice Coil Former Aluminum

Basket / Frame Material Cast Aluminum

Magnet Material Ferrite

Overall Outside Diameter 461.5 mm

Overall Depth 227 mm

Baffle Cutout Diameter 424 mm

# Mounting Holes 8

Sealed Volume 3.04 ft.³

Sealed F3 40 Hz

Vented Volume 7.5 ft.³

Vented F3 23 Hz
