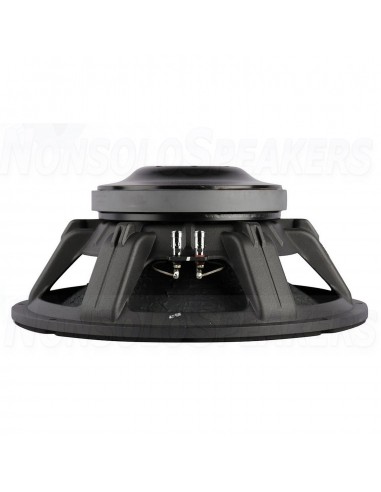

SB Audience ROSSO-15MW500 8 ohm 18 inch

SB Audience ROSSO-15MW500  8 ohm 18 inch

1 PIECE

At SB we believe in the importance of subjective listening during the development process to complement the advanced FEM stimulation, motor optimization, diaphragm design, voice coil technology, adhesives etc. We have done extensive listening and also compared to several high priced competing transducers, and at SB Audience we are really excited about the sound of these new drivers.

The new line of products incorporate a heavy duty distinctive looking cast aluminium rear chamber that visually define the new products. The chamber has been optimized to minimize resonances and absorb reflections.

• Exremely light weight PEI diaphragm
• Smooth response with airy detailed highs
• High sensitivity and compact design

With well over 35 years of experience in professional sound reinforcement drivers, we strive to bring this know-how to the world with the most competitive high quality drivers on the market.

SB Audience is spawned from the heavyweight manufacturing of Sinar Baja Electric Indonesia and has serviced well known brands in the PRO audio industry for decades with in house engineering and manufacturing. There are three categories within our standard product range: Bianco, achieves good performance at the most reasonable cost. Rosso, aims at high performance at an attractive price, and Nero is our higher performance line still achieving exceptional price performance ratio.

General

 Product type : Cone driver

 Brand : SB Audience

Informations

 Product manufacturer range : 15 inch, Rosso, Woofer

 Nominal impedance : 8 ohm

 Dimensional category : 15.5 inch

 Frequency coverage type : Sub, Low, Midbass, Midrange

 Manufacturer sensitivity : 98 dB

 Calculated sensitivity : 95.97 dB

 Nominal power handling : 500 W

 Max power handling : 1000 W

 Bandwidth : 39÷3700 Hz

Fundamental parameters

 Sd : 865.7 cm²

 Mms : 122.3 gr

 Le : 1.04 mH

 Re : 5.6 ohm

 BL : 23.2 T.m

Small signal parameters

 Fs : 39 Hz

 Qes : 0.32

 Qms : 7.69

 Qts : 0.3

 Vas : 139.4 L

Datas

 Flux density : 1.16 T

 Xmax : ±8.38 mm

 Xvar, Xmech, Xlim : ±18 mm

 EBP : 122 Hz

 Zmin : 5.6 ohm

 Fs / Qts : 130 Hz

 Vas * Qts² : 12.55 L

 Efficiency : 2.62 %

 Calculated efficiency : 2.49 %

 Weight : ~11.2 kg

 Air volume occupied by the driver : 5.08 L

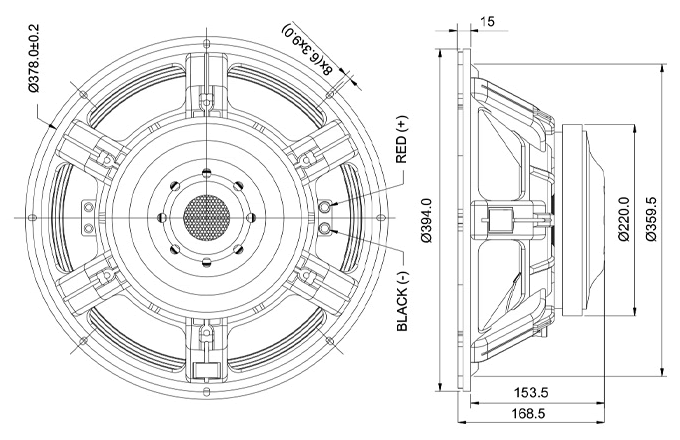

Dimensions

 Voice coil diameter : 4 inch

 Winding depth : 20.1 mm

 Gap height : 10 mm

 Outside diameter : 394 mm

 Diamètre d'encastrement (mm) : 359.5 mm

 Front thickness : 15 mm

 Depth after front : 153.5 mm

 Diamètre aimant (mm) : 220 mm

Shape & Materials

 Magnet type : Ferrite

 Basket masterial : Aluminium

 Winding material : CCAW (Copper-clad aluminium wire)

 Voice coil former : Till

 Surround shape : Triple roll and more

 Surround material : Cloth

 Cone material : Paper
