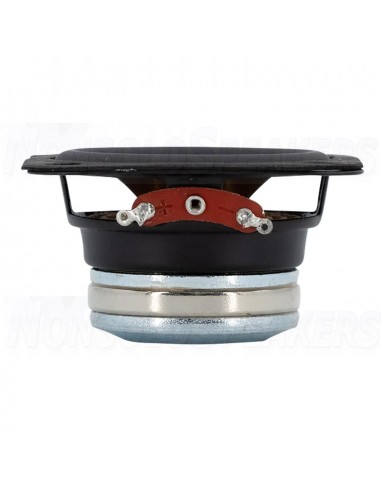

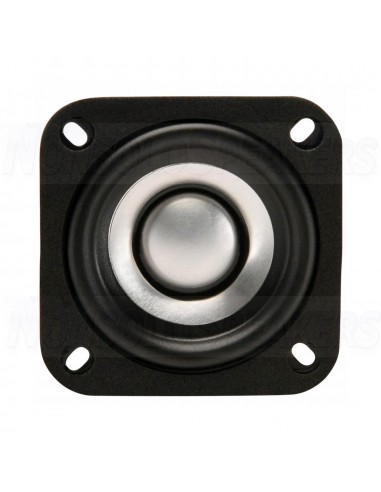

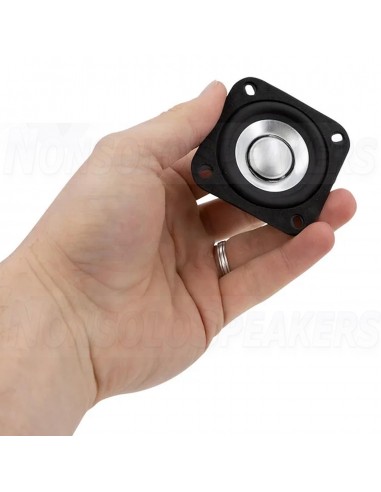

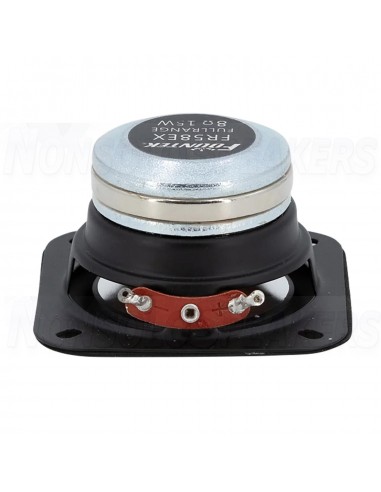

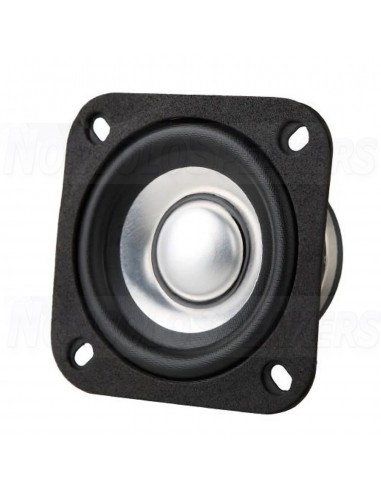

Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker
Fountek FR58EX 2" Full Range Speaker

Fountek FR58EX 2" Full Range Speaker

Fountek FR58EX 2" Full Range Speaker

Fountek’s FR58EX is a premium 2" small full-range driver that features an attractive thin-foil aluminum cone, steel frame, and an optimized high-strength neodymium motor, for low distortion and excellent detail.

.

SHIPMENT IN 7/10 WORKING DAYS
€49.00
Tax included
rating No review at the moment

Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Fountek FR58EX 2" Full Range Speaker

.

Product description

Fountek’s FR58EX is a premium 2" small full-range driver that features an attractive thin-foil aluminum cone, steel frame, and an optimized high-strength neodymium motor, for low distortion and excellent detail.

.

Highlights

Ultra-linear frequency response from 150 to 20,000 Hz

Gorgeous aluminum cone

Neodymium motor with 2.9 mm of Xmax

Extremely fast transient response for clear, accurate high end

.

Product details

Fountek FR58EX 2" Neodymium Full Range Speaker Driver

Fountek has applied much of what it has learned from designing industry-leading ribbon transducers in creating its line of full-range drivers. These high-performing cone drivers feature thin-foil aluminum diaphragms that shed resonance rapidly, for exceptional detail and smooth frequency response.

The 2" FR58EX model is the smallest, and features a high-strength neodymium motor structure for low distortion, extended excursion, and excellent transient response. It’s a great choice for desktop multimedia speakers, micro-satellite speakers, or line arrays.

.

Specifications

Article numberFR58EX
Woofer TypeFull-range
Nominal Diameter2"
Power Handling (RMS)15 Watts
Power Handling (max)30 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)82.3 dB
Frequency Response130 to 15,000Hz
Voice Coil Diameter0.79"
DC Resistance (Re)6.4 ohms
Resonant Frequency (Fs)134 Hz
Mechanical Q (Qms)2.6
Electromagnetic Q (Qes)0.69
Total Q (Qts)0.55
Diaphragm Mass Inc. Airload (Mms)1.91g
Surface Area of Cone (Sd)17.35 cm²
BL Product (BL)3.39 Tm
Compliance Equivalent Volume (Vas)0.01 ft.³
Maximum Linear Excursion (Xmax)2.9 mm
Cone / Diaphragm MaterialAluminum
Surround MaterialPolyurethane
Basket / Frame MaterialSteel
Magnet MaterialNeodymium
Overall Outside Diameter2.44"
Overall Depth1.3"
Baffle Cutout Diameter2.02"
# Mounting Holes4
Sealed Volume0.01 ft.³
Sealed F3196 Hz
Vented Volume0.02 ft.³
Vented F395 Hz

.

Fountek FR58EX
