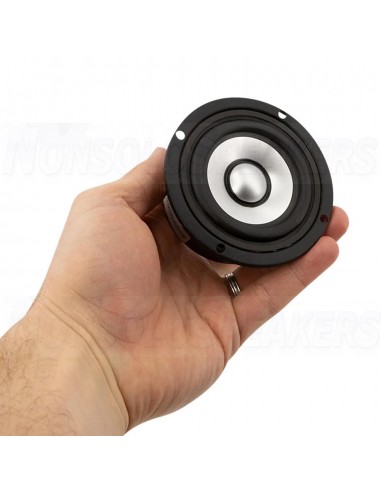

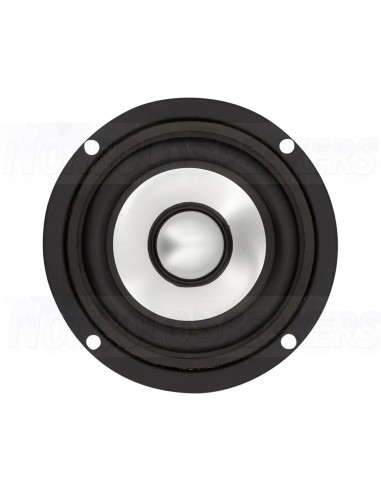

Fountek FE85 3" Full Range Speaker
Fountek FE85 3" Full Range Speaker
Fountek FE85 3" Full Range Speaker
Fountek FE85 3" Full Range Speaker
Fountek FE85 3" Full Range Speaker
Fountek FE85 3" Full Range Speaker

Fountek FE85 3" Full Range Speaker

Fountek FE85 3" Full Range Speaker

Fountek’s FE85 features an attractive lightweight aluminum cone, cosmetic stamped frame, and a high-performance ferrite motor structure.

Out-of-Stock
€34.95
Tax included
rating No review at the moment


Estimated Shipping Costs
Shipping Costs
€12.60
Shipping Time
.
Want to check another country or courier?

You might also like



Fountek FE85 3" Full Range Speaker

.

Product description

Fountek’s FE85 features an attractive lightweight aluminum cone, cosmetic stamped frame, and a high-performance ferrite motor structure.

.

Highlights

Attractive thin-foil aluminum diaphragm

Cosmetic stamped steel frame

Economical ferrite motor structure

Ultra-fast transient response

.

Product details

Fountek has applied much of what it has learned from designing industry-leading ribbon transducers in creating its line of full-range drivers. These high-performance cone drivers feature a lightweight aluminum diaphragms that shed resonance rapidly for exceptional detail and smooth frequency response.

The FE85 model features a generously-proportioned ferrite motor structure and a cosmetic steel frame to complement its high-tech diaphragm, creating an affordable, high-value driver choice for compact applications such as desktop speakers, mini-satellites, or line arrays.

.

Specifications

Article numberFE85
Woofer TypeFull-range
Nominal Diameter3"
Power Handling (RMS)12 Watts
Power Handling (max)25 Watts
Impedance (Z)8 ohms
Sensitivity (SPL at 1m / 2.83V)85.7 dB
Frequency Response100 to 25,000Hz
Voice Coil Diameter0.79"
DC Resistance (Re)6 ohms
Resonant Frequency (Fs)125 Hz
Mechanical Q (Qms)2.13
Electromagnetic Q (Qes)0.67
Total Q (Qts)0.52
Diaphragm Mass Inc. Airload (Mms)2.07g
Mechanical Compliance of Suspension (Cms)0.82 mm/N
Surface Area of Cone (Sd)27 cm²
BL Product (BL)3.7 Tm
Compliance Equivalent Volume (Vas)0.03 ft.³
Maximum Linear Excursion (Xmax)1.5 mm
Cone / Diaphragm MaterialAluminum
Surround MaterialPolyurethane
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter3.55"
Overall Depth1.56"
Baffle Cutout Diameter2.76"
# Mounting Holes4
Sealed Volume0.02 ft.³
Sealed F3196 Hz
Vented Volume0.05 ft.³
Vented F394 Hz
